產品特點：支持蘋果，安卓，WDOS系統：
1。芯片采用速度更快一倍的ARM芯片，協議通訊速度比老款黑色的WIFI OBD（CLK移動設備）更快一倍。
2，造型非常精美簡潔，有蘋果設計風格默認風格。和老款黑色??的WIFI OBD（CLK移動設備）相比，更加小巧玲瓏，沒有冗長的線纜。
3，帶斷電開關，不用時可斷開電源，為車的供電電源節省瞭很大的電量
4，其真正的J1939和穩定的J1979協議為客戶提供強有力的二次開發
5，支持WIFI系統（PC，IPHONE，IPOD，IPAD）


 無線OBD無線網路可以使您透過iPhone，iPad或iPod的

使用相容性統計，適用1996年以後車款，OBD2功能請參考ELM327

支持PC端軟件列表：
Dashcommand由PalmPerformance為贏95/98/ME/NT/2K/XP/Vista/7
ScanXL
ScanMaster條碼掃描器 - ELM V2.1

支持iPhone的iPod Touch軟件列表：
PalmPerformance DashCommand（約合49.99）
FuzzyCar
FuzzCodes
LogWorks
PLX公司記錄機
DevToaster 2.0.2（約合39.99）

PLX公司的無線網路連線

溫馨提示：可在蘋果在線商店AppStore的下載購買相關軟件！
2.1軟件為中英文版本

說明：

特點
1，芯片是ARM芯片速度更多更快，比前一（CLK移動設備）的通信速度加倍
2，形狀看起來優雅而精致的設計是附近的蘋果風格，比較瞭（CLK移動設備），這種新的設備更精致，它不使用的電纜，但（CLK移動設備）有。
3。具有PowerSwitch的中，不斷開的powerwhen，在usetosavealot ofelectricityforthecar'spower供應。
4，真正的J1939和穩定的J1979協議可以讓客戶有效地重建
5.it支持所有的的WiFi系統（PC，IPHONE，IPAD，IPOD）

技術規格
SSID：無線OBD
IP：192.168.0.10
子網：255.255.255.0
端口：35000
范圍：50英尺（視線）
天線：內置
耗電量：0.75瓦（帶電源開關）
WiFi標準：802.11a/b/g無線
工作溫度：-15至100℃左右
塑料：汽車級
物理尺寸：2.75×1.25×1.2英寸

支持OBDII的協議：
1.ISO15765-4（CAN）的
2.ISO14230-4（KWP2000）
3.ISO9141-2
4.J1850 VPW
5.J1850 PWM

功能：
1.Read，通用和製造商特定的診斷故障代碼，並顯示它們的含義（超過3000通用的代碼在數據庫中定義）。
2.Clear故障代碼，並關閉MIL（“檢查引擎”燈亮）
3.Display電流傳感器的數據，包括：
4.Engine RPM
5.Calculated負載值
6.Coolant溫度
7.Fuel系統狀態
8.Vehicle速度
9.Short短期燃油修正
10.Long長期燃油修正
11.Intake歧管壓力
12.Timing提前
13。進氣溫度
14.Air流量
15.Absolute節氣門位置
16.Oxygen傳感器電壓/相關的短期燃料修剪
17。燃油系統狀態
18.Fuel壓力

包裝清單：

1X無線OBD2 ELM327

1個CD

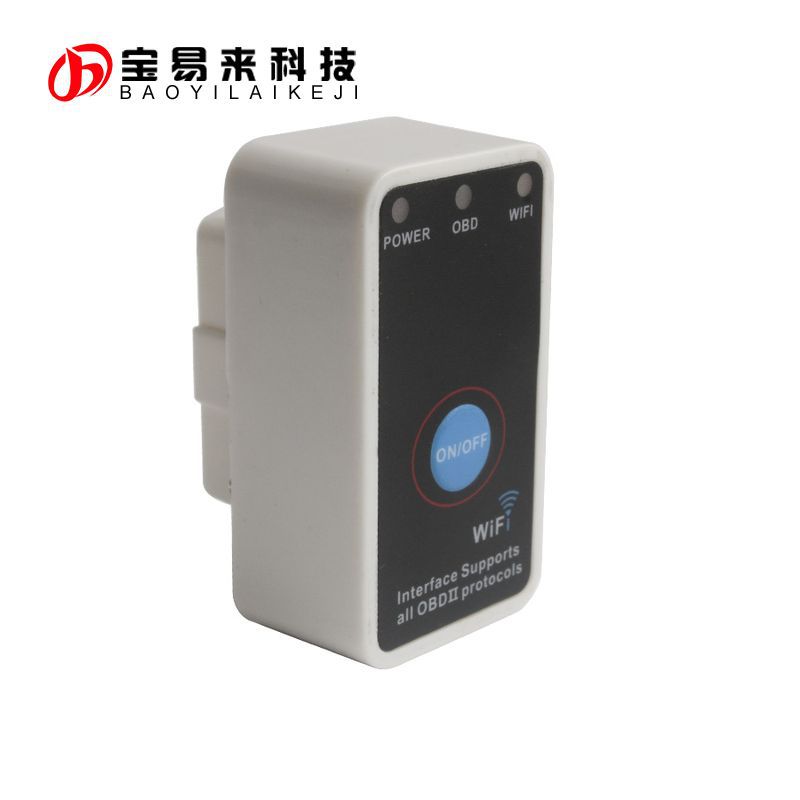

New Arrival Code reader Diagnostic Tool Super mini ELM327 WiFi with Switch work with iPhone OBD-II OBD Can

Top 4 Reasons To Get Super mini ELM327

1.Software Version: V2.1
2.Hardware version: V1.5
3.It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WIFI connection in adHoc mode.
4.WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:

ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939

WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. WI-FI OBD AUTO CHECKER is measuring only 2.7 x 1.25x 0.9 inches. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port.

Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible.  Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.

Following are Some of The Parameters Which Could be Read From The Vehicle:

Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Note: Your vehicle may not support all above parameters. How many parameters you can get is depended on the vehicle manufacturer’s implementation.

Vehicles Supported

Our device works on all 1996 to 2010 cars and light trucks sold in the United States, including:

Some 1994 and 1995 models are also supported. To see if your vehicle is compliant, pop the hood and look for this sticker:

Technical Specifications

SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches
