手機APP、電腦軟件等有中文或者英文版。
Elm327 OBDII藍牙汽車診斷適配器支持所有OBD-II自診斷系統及與其相兼容的通訊協議檢測。通過與汽車的鏈接，可以把汽車的相關數據如：發動機轉速、冷卻液溫度、燃油系統狀態、車速、短期燃油修正、長期燃料修正、節氣門開度、汽車故障碼等等經藍牙反映到手機電腦等移動設備中去，是一款非常強大使用非常方便的診斷器。
Elm327 OBDII藍牙汽車診斷適配器支持所有OBD-II自診斷系統及與其相兼容的通訊協議檢測。其功能暴扣1.讀取通用及汽車製造商特定的診斷故障代碼，並顯示其定義（軟件包含3000多個故障代碼）2.清除故障代碼，並關閉發動機（引擎）故障報警指示燈3.讀取發動機即時動態數據流：發動機轉速、計算負荷值、冷卻液溫度、燃油系統狀態、車速、短期燃油修正、長期燃料修正、進氣歧管壓力、定時提前、進氣溫度、空氣流量、節氣門開度、氧傳感器電壓/短期燃油微調、燃油壓力等等
支持OBD-II協議如下:
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)

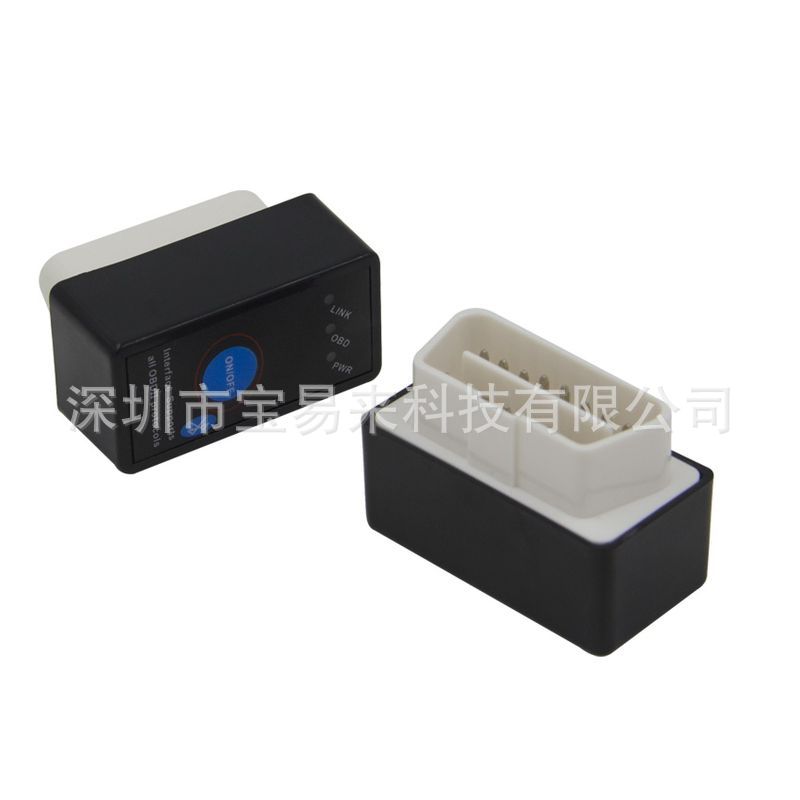

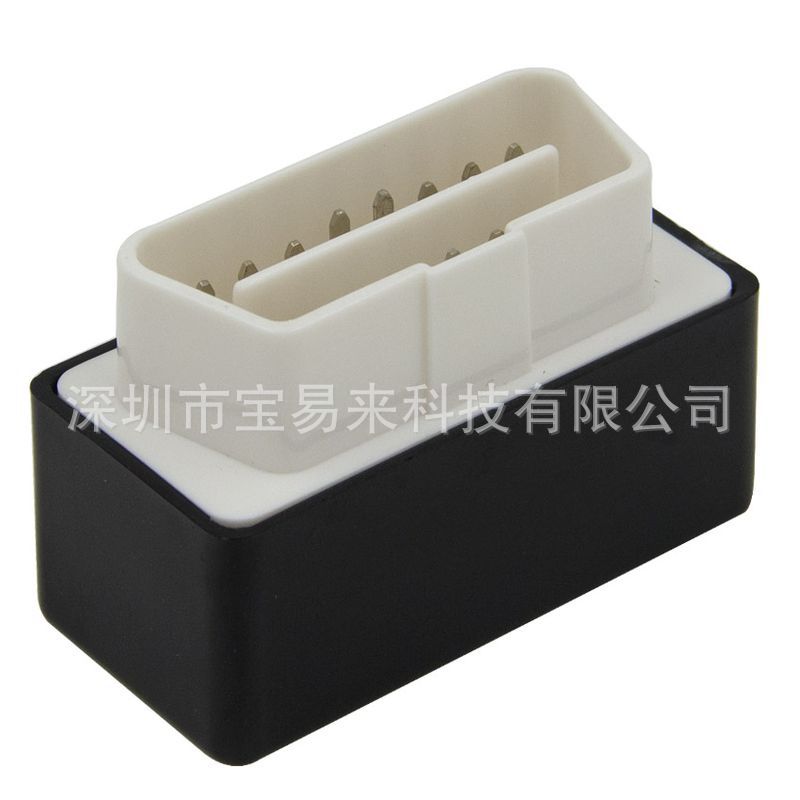

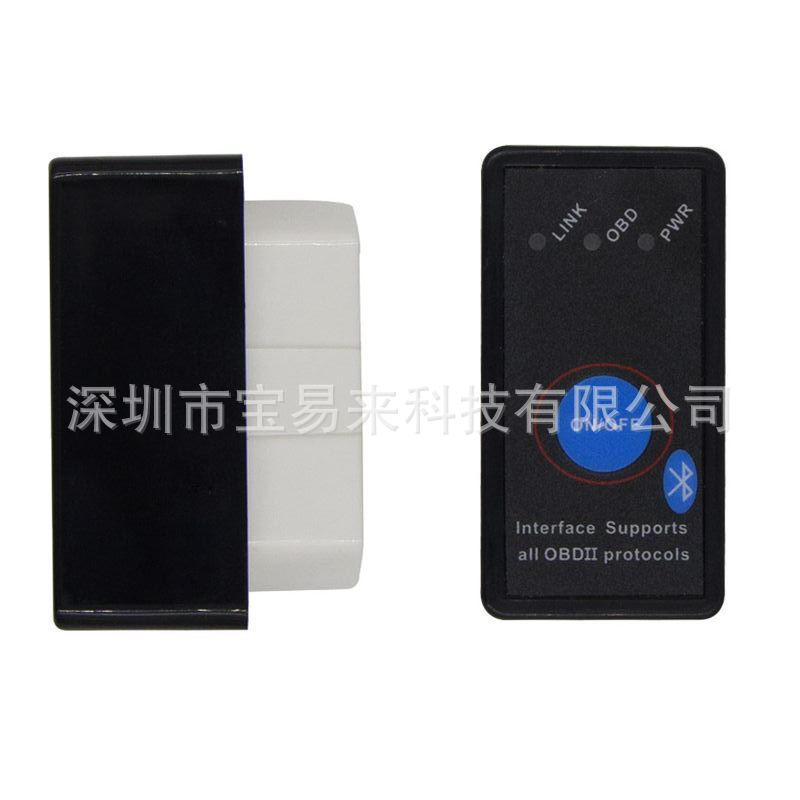

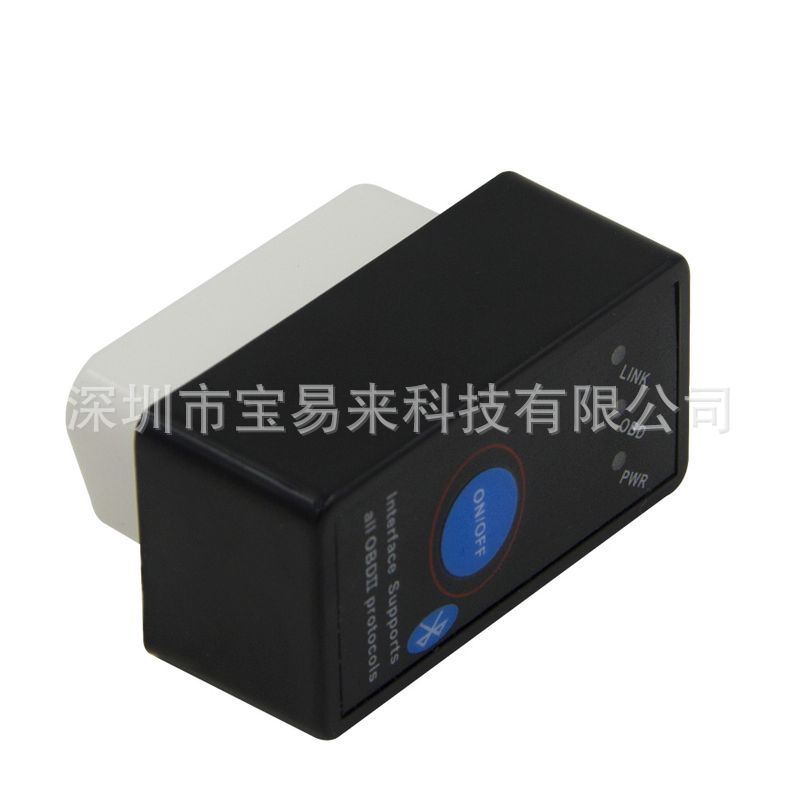

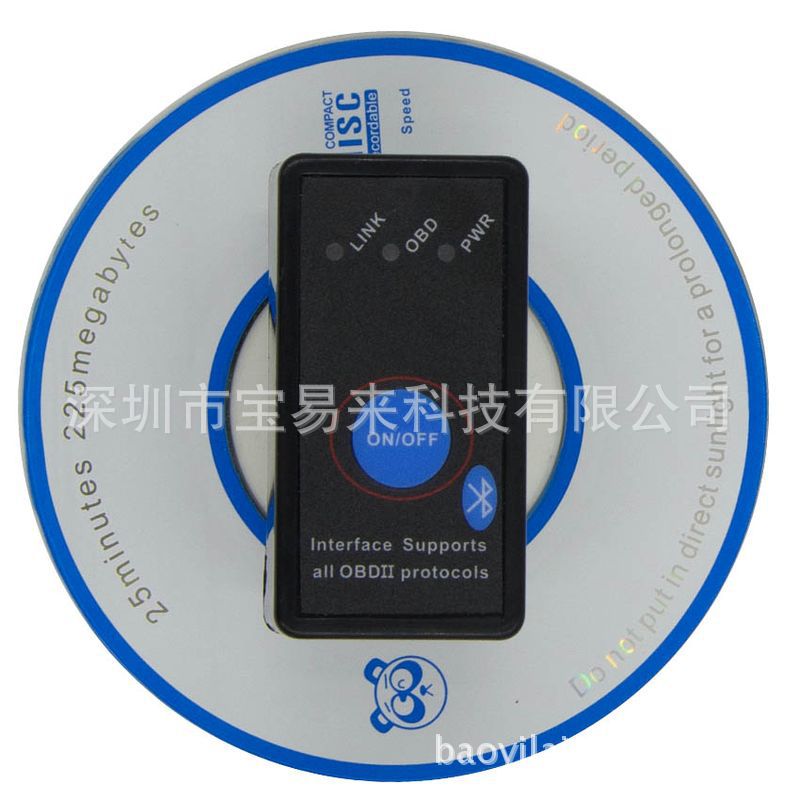

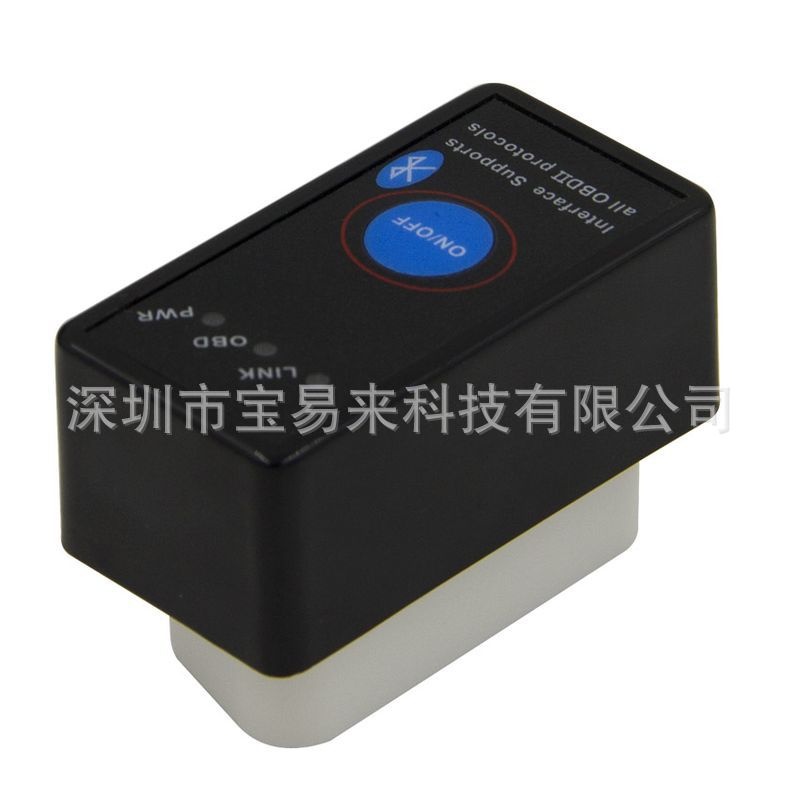

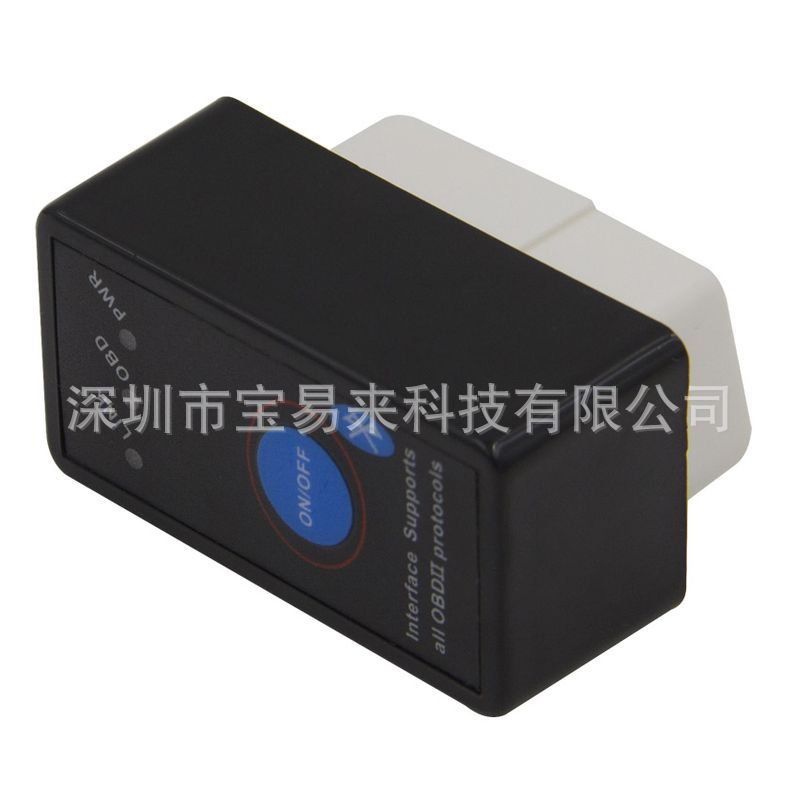

NEW Super Mini ELM327 Bluetooth OBD-II OBD Can with power switch
This ELM327 suport TORQUE software for Android system cell phone,OBDscope software for Symbian system cell phone,PPC(Windows Mobile) system cell phone,ScanMaster-ELM for PC etc.
Features:
OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
0.Automatic
1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)
*default settings(user adjustable)
1.Works with all OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Palm, PDA,Mobile
4.Software included for Windows PC
5.Software included for Windows Smartphone
Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others...
For your information:
For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
Software Included:
Scantool_net113win (Full Version)
EasyOBDII V2.2 (Full Version)
OBD2Spy (Demo Version)
ScanMaster-ELM (Demo Version)
wOBDCRAZY (Demo Version)
TORQUE (Android system cell phone)
OBDscope software (Symbian system cell phone)
This hardware can match many other software still! But most are not free
Package including:
1pc x Advanced obd scan too linterface
1pc x CD drive
