讀碼卡是最新推出的便攜式汽車讀碼器。本產品結構小巧，外形美觀，價格低廉，使用極為方便。
用戶可以利用它迅速地讀取汽車電控系統中的故障碼，並通過查閱本說明書中的故障碼表，弄清發
生故障的部位及原因。
本讀碼卡既適合修理廠使用，亦可供車主隨車攜帶，以便隨時掌握汽車電控系統中的故障情況。
簡介：
讀碼卡最新推出的便攜式汽車讀碼器。本產品結構小巧，外形美觀，價格低廉，使用極為方便。用戶可利用它迅速地讀取汽車電控系統中的故障碼，並通過查閱本說明書中的故障碼表，弄清發生故障的部位及原因。本讀碼卡既適合修理廠使用，亦可供車主隨車攜帶，以便隨時掌握汽車電控系統中的故障情況。
功能：
① 讀故障碼 ② 清故障碼
操作方法：
① 當發動機故障指示燈點亮時，將汽車停下來並拉好手剎，起動發動機，然後將本讀碼卡插入汽車16pin診斷座（標準OBDII診斷座一般在司機側機表板下方）。
② 讀碼卡顯示屏首先顯示品牌商標，按照其提示選擇相應的車型/協議進入下一步，如果汽車ECU存儲器中有故障碼，則顯示屏會將故障碼一個接一個地顯示出來；如果無故障碼，顯示屏將顯示[-- -- -- -- ]。此過程將重復進行。
③如果汽車ECU存儲器中有故障碼，則顯示屏會將故障碼一個接一個地顯示出來,在顯示完最後一個故障碼之後,如果接著按下讀碼卡上麵的清碼按鈕,那麼故障碼將被清除.如果沒有按下清碼按鈕,那麼故障碼將仍然保留在汽車ECU存儲器中而不會被清除。

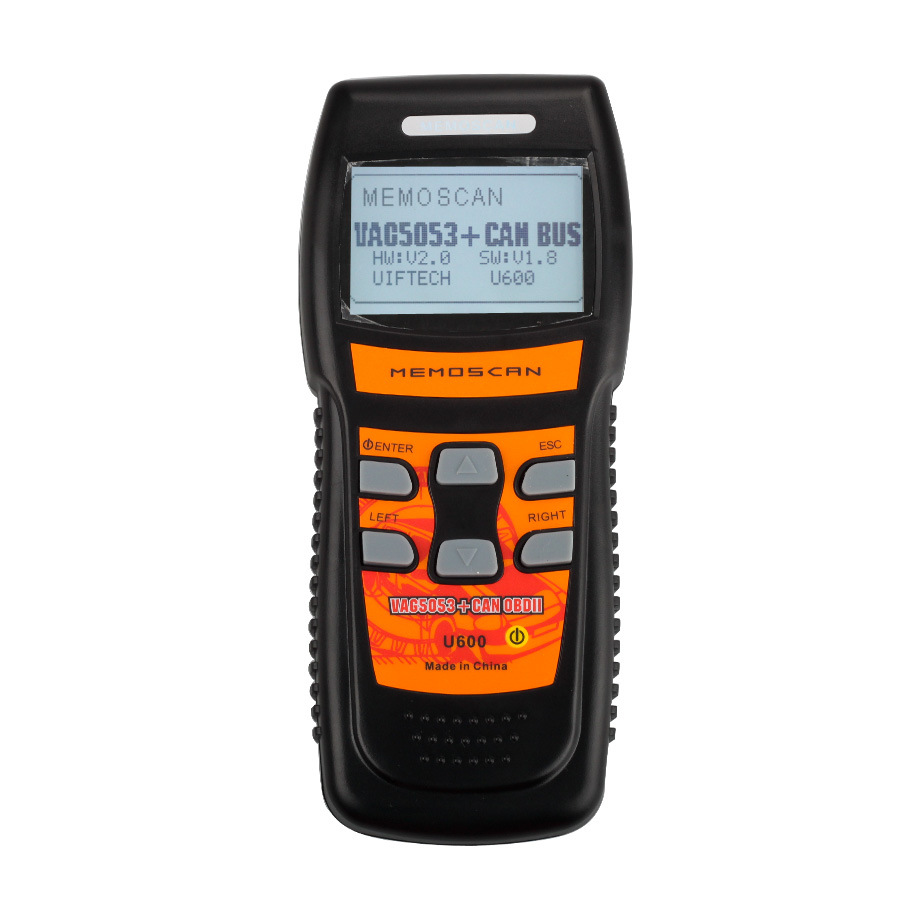

U600 OBD2 CAN-BUS Code Reader
Memoscan U600 VW Audi scanner is an super diagnostic tool compatible with OBD2, CAN-BUS & VW/Audi vehicles sold worldwide. By simply plugging it into your vehicles diagnostic socket, you will be able to Read & Erase trouble codes.
U600 VW/AUDI OBD2 CAN Scanner Code Reader Live Data
Language: English, Spanish, Polish, Italian, Turkish, Germany, Portuguese
updat Online
U600 Description:
Advanced features forVW, Audi, Seat & Skodavehicles like Reseting Oil & Service Lights. Works on Engine, ABS, Airbags, Transmission, Radio, Climate Control, Instruments, Immobilizer & more.More than 120 systems.
Performs advanced features on VW, Audi, Seat & Skoda.
U600 Functions:
1.Basic features (Read, Erase, Freeze frame Data.) for all other OBD2 & CAN-BUS vehicles.
2.Read & erase trouble codes & reset service lights. It will perform these functions on engine, ABS, Airbags, transmission, radio, climate control, instruments, immobilizer & more.
3.Compatible with the following protocols: VPW, PWM, ISO, KWP 2000 & CAN protocols.
4.Turns off MIL Lights: Engine, Airbag, ABS & Transmission. More than 120 systems total!
5.CAN-BUS compatible.
6.Resets the Oil Service Light.
U600 Compatible Vehicles:
Works on OBD2 & CAN-BUS vehicles.
Advanced features for most VW, Audi, Seat & Skoda vehicles sold worldwide.
Jetta, Golf, Beetle, Touareg, GTI, Passat & more.
U600 Specification:
1. LCD screen: 128*64
2. Enter key: confirm selecion and enter
3. Esc key: go back to the previous screens
4. up/down arrows: moves the selection pointer and scrolls up or down
5. LEFT/RIGHT arrows: move cursor.
6. Power button
7. Diagnostic extension cable: OBDII -16PIN

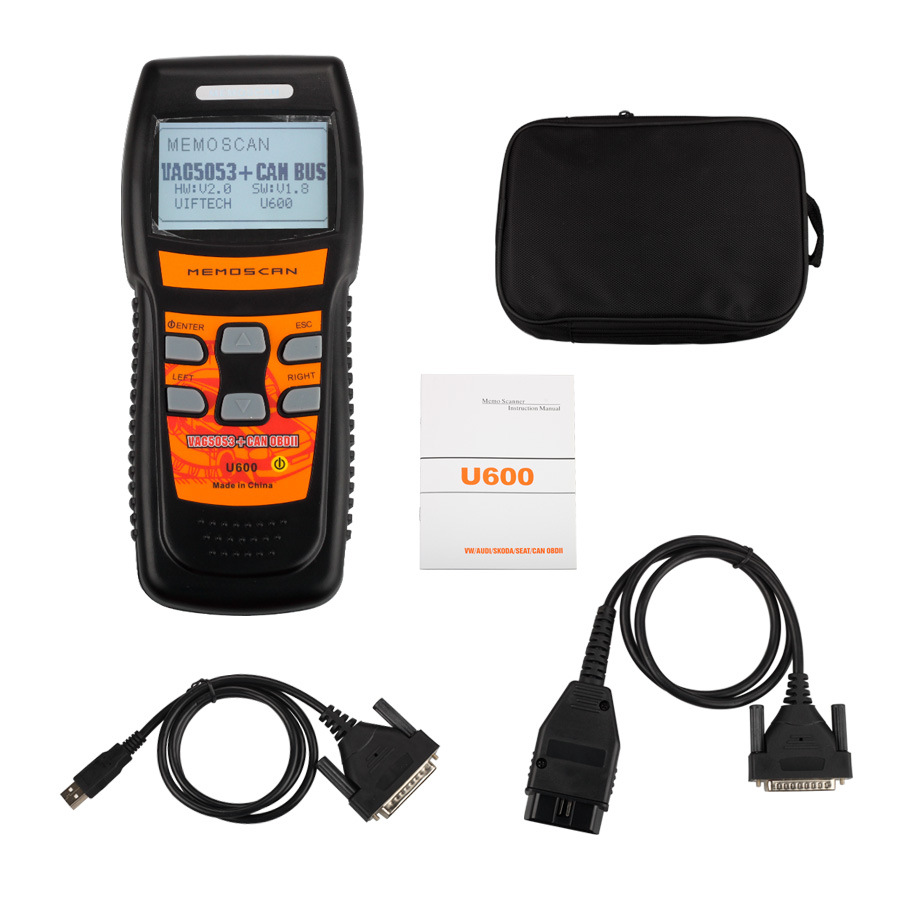

Package list:
1 x U600 VAG AND CAN-OBDII Scanner

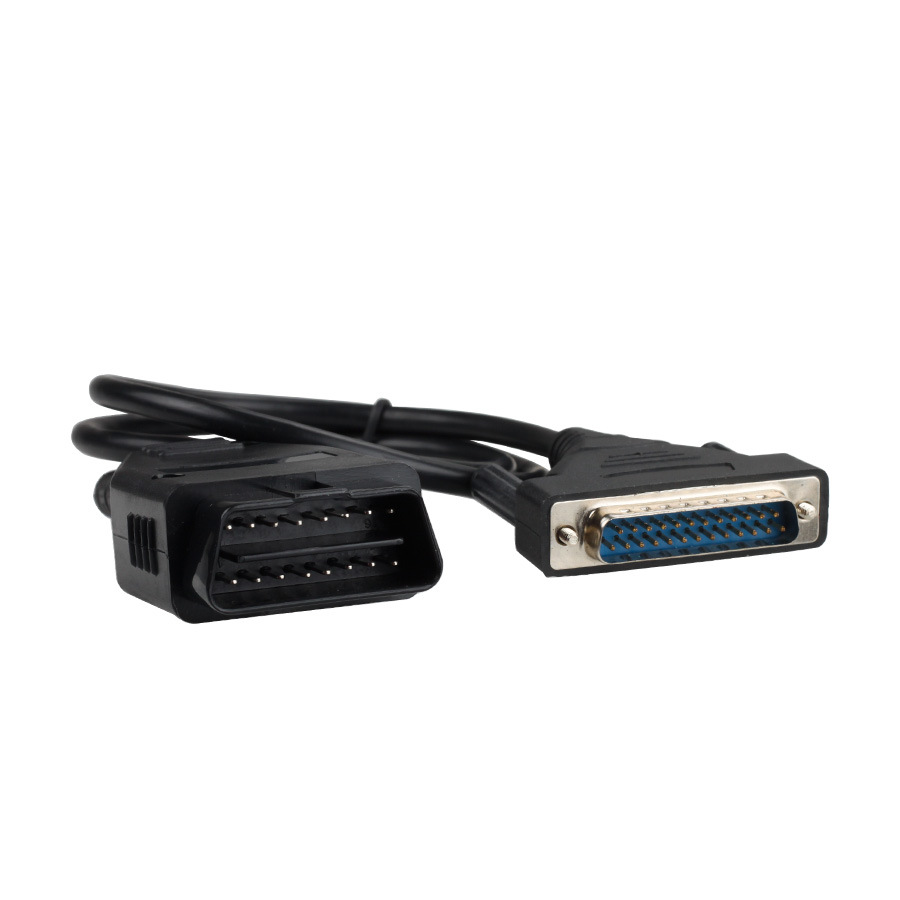

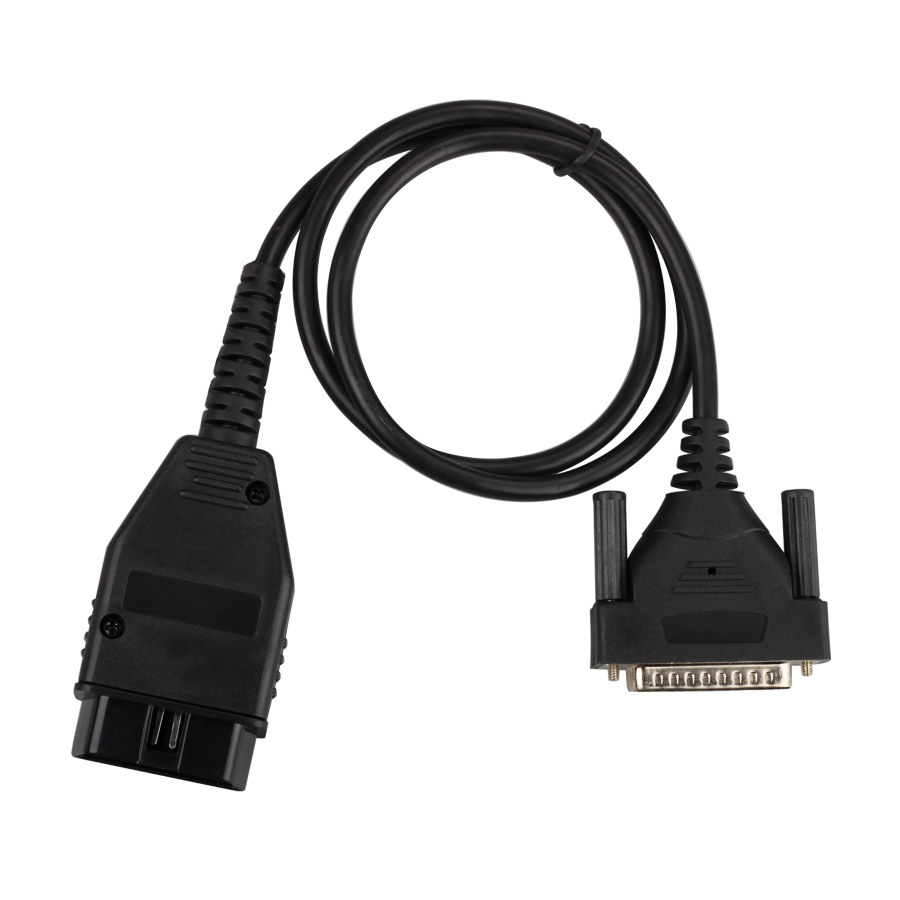

1 x 16 pin OBDII connection cable (to connect scanner to vehicle)
1 x COM Cable for connecting U600 to PC
1 x Instruction Manual

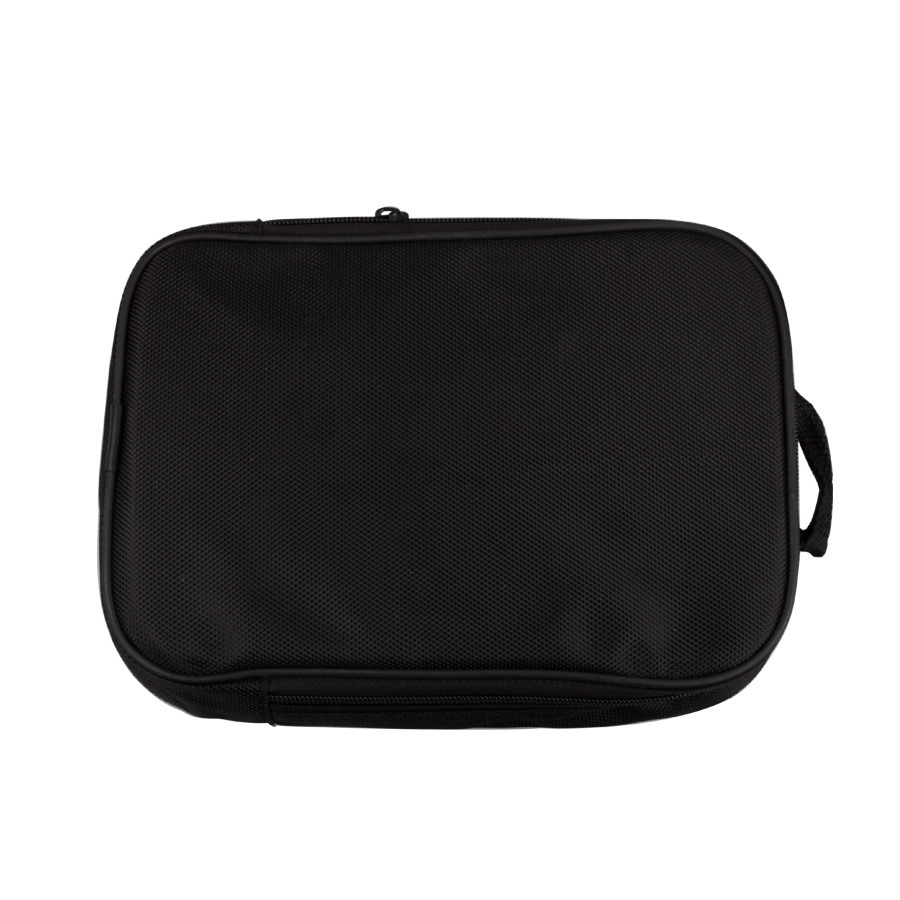

1x Nylon Case
FAQ:
Q1: U600 VW/AUDI OBD2 CAN Scanner Code Reader, does it need an external 12V battery to function?
A1: U600 Code reader doesn't need extra 12V battery; it uses the power of the car which you scan.
Q2: Can U600 connect to PC?
A2: Yes, you can connect the U600 to PC with com cable. The package has one com cable which is used to connect to PC.
Q3: How can I updat it?
A3: updat from internet, updat link: http://www.memoscan.cn/en/download.asp
