DPA5 Dearborn protocol Adapter 5 Heavy Duty Truck Scanner

ID NO：CTI039

 Dearborn Protocol Adapter 5 is designed to help manufacturers diagnostic the fault of trucks,trailers, buses and light commercial vehicles.It covers multiple systems and widely used, it's user friendly.Dearborn Protocol Adapter 5 is an proferssinal tool for the maintenance of the commercial vehicle manufacturers.It covering all critical systems, including engines,transmissions, brake warning device, comfort, safety, emissions, air suspension, trailer and maintenance,to provide in-depth functionality for each application. It is based on the DS tool technology,it can use for the following hardware platforms: PC, Pocket PC (PDA) or netbook (UMPC,also known as Ultra Mobile PC),and provide information updat for customers by regularly upgraded the supporting software.

Heavy-Duty Truck Diagnostic Applications:

1. VOLVO TRUCK: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7,FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
2. VOLVO BUS: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY,B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX,

3. MACK TRUCKS:V-MAC I,  V-MAC II,  V-MAC III,  V-MAC IV, Service Diagnostic

4. VOLVO ConSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F,L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B,EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C,ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B,EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990

5. Navistar:  ALL Diamond Logic Builder (DLB) ServiceMaxx

6. International: ALL Intune, MD32,

7. Freightliner:  ALL Servicelink:cascadia,century,columbia,Coronado,classic,FLDSD,4900FA,4900SA,4900EX.

Heavy-Duty Truck Diagnostic Engines:

1,Detroit Diesel Diagnostic link™ (DDDL)
    All DDEC VI equipped engines ,DD13,DD15,DD16,SERIES60,MBE4000,MBE900,and RS9, RSX9-A,RSX9-B, RSX9-R, RS10, RSX10 J1939 engine ,brake level for Series 2000 and 4000 Engines with USA and ISO firing order selection

2, Caterpillar (on high way engine for j1939)
  3126, 3406, 3306B, 3512C, C4.4,  C6.6  C7   C9  C11,  C13

3,Cummins  INSITE7.6  insite7.5

4,Perkins Engines

Transmissions             Brakes
 1,Meritor  WABCO toolbox
  D and E Versions ,HABS, hpb, ESC, RSC, ECAS
 2,Bendix® ACom™ Diagnostics
  EC-17T, Generation 4 and 5, EC-30T, EC-60T (standard, premium and advanced), A-18T,MC-30T and the trailer antilock braking TABS-6 unit

3, Meritor  ZF

4,Eaton Service Ranger
Vorad VS-400 Collision Warning System
Generation 2 Auto shift and Ultra shift Transmissions
Generation 3 Auto shift and Ultra shift Transmissions
Ultra Shift PLUS Transmissions
Lightning Transmissions
Hybrid Drivetrain Systems

5,Allison DOC
Allison1000,2000,3000,4000,
Cec2-5610,6610,8610,9610
CEC-MTB600,CLBT-V,HT700,B700
CEC-5,CEC-6,CEC-8,CEC9000
Support more software updat !!!
  PC-to-Vehicle Interfaces
  API Support:
•  RP1210A/B
•  J2534-2
•  supports Windows xp and windows 7 32-bit and 64-bit and windows CE compliant
Not all applications are included. If compatibility confirmation is required, more information is needed, or there are questions about an unlisted application, please contact your dealer,he will send E-mail to us,. A specialist will help you make the right choice.

Protocol Coverage:
CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
J1587/J1708    J1850   J2534
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)  ALDL ATEC 160 (160 baud)

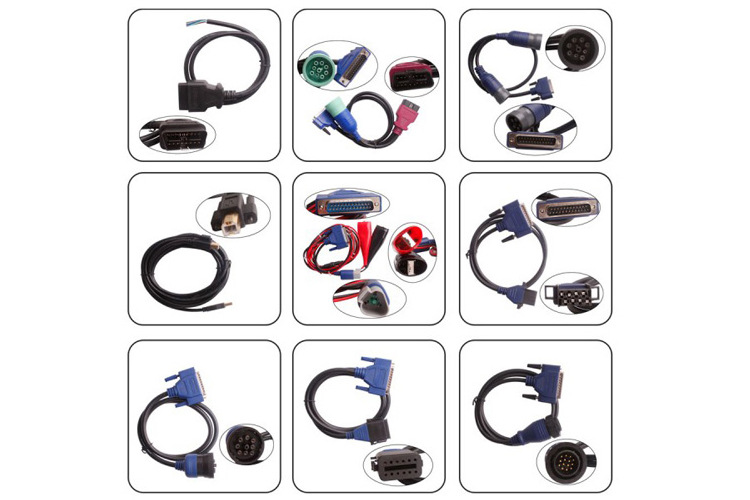

Cables and Accessories (Kit)
Kit Includes (6 Cable);
1X DG-DPA5-YDUALCAN
 1X DG-DPA5-9OBDII_Volvo
1X DG-DPA5-VOLVO8PIN
1X DG-DPA5-VOLVO14PIN
1X DG-DPA5 KOMATSU
1X DG-DPA5-3Pin_Deutsch
1X DG-OBDii-o-Cable
1X DG-DPA5-15USB

Software Interface Capability(Includes DVD)

Detroit Diesel Diagnostic link  7.05
Caterpillar  Electronic Technician  2010B
Cummins Insite  7.5（windows XP and 7），inste 7.6（only for windows 7）
International - ServiceMAXX Fleet Pro
Volvo PTT 2.40
VCADS /Elite Mack/Volvo  2.35
V-MAC Service Tools
Allison DOC? For PC-Service Tool - Protocols Supported: J1939, GMLAN, J1708/J1587, J1850, and
ATEC160
Allison DOC For PC (AED) - Protocols Supported: J1939
Allison DOC For Fleets (1000/2000) - Protocols Supported: J1939, J1850, GMLAN
Allison DOC For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
Eaton ServiceRanger 3.2
Bendix Acom
ZF-Meritor TransSoft  / WABCO Toolbox
International ABS
International DLB
International Intune
International IPC v2.02
Perkins EST Diagnostic Interface  2010

Note:
1,Above all software has keygen or crack files in DVD

2, Next we will supply freely software of New Holland and Others
 J2534 OEM Software (Does Not Include Software)
J2534 OEM Diagnostic Software Compatibility

The adapter you have purchased is provided with an SAE J2534-compliant interface (an SAE standard for electronic module reprogramming). The DPA5 should be able to reprogram all CAN/ISO15765 vehicles, GM vehicles using the J1850 Variable Pulse Width (VPW) protocol, or other vehicles using the DPA5 J2534-supported protocols (i.e. ISO9141/KWP2000).

The DPA5 has been validated against the following OEM and component applications:
Cummins PowerSpec
Freightliner Servicelink
Vansco VMMS
Dana Diagnostic Tool
Mitchell1 RepairConnect
General Motors TIS2Web
Ford Module Programming (FMP)
Chrysler J2534 Application
Toyota TIS (Technical Information System)
Honda Service Express
Mazda Module Programming (MMP)
Kia J2534 KMA
Hyundai 2534 HMA
Volkswagen Erwin
Audi Erwin
Nissan J2534 ECU Reprogramming Software (NERS)
All J2534 reprogramming and diagnostic software packages that are J2534-1 and J2534-2 compliant and use a protocol supported by the DPA5 should work as long as the operating system is supported by the application. Note that not all OEMs have released J2534-2 compliant software.

Repair and Service Procedures:
One-year warranty
The RMA number must appear clearly on the outside of the shipping box when being shipped to Dealer. We appreciate your cooperation in our continued effort to provide efficient and timely product service and support

Language of DPA5 List:

Cummins Volvo/MACK Perkins  Allison  Caterpillar  Kobelc
