| Model | MDX-20 | MDX-15 |
| XY table size | 220 (X) x 160 (Y) mm ( 8-5/8 x 6-1/4 in.) | 170 (X) x 110 (Y) mm ( 6-11/16 x 4-5/16 in.) |

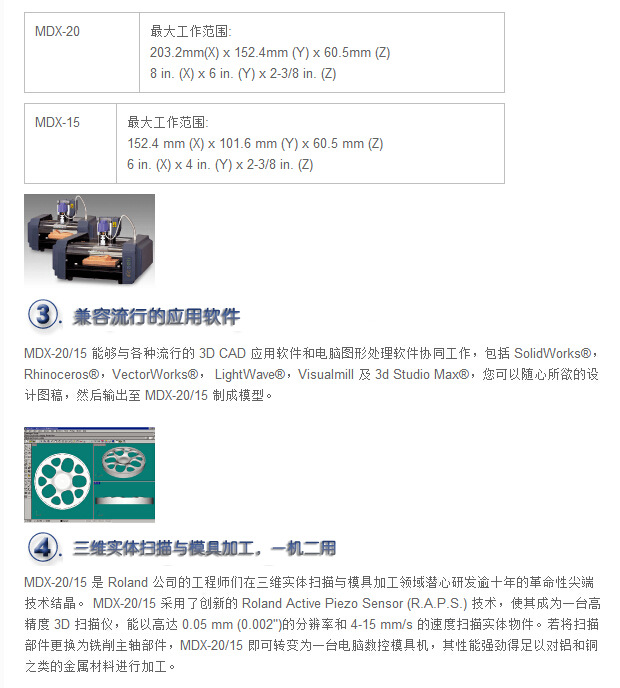

| Max. operation area | 203.2 (X) x 152.4 (Y) x 60.5 (Z) mm (8 (X) x 6 (Y) x 2-3/8 (Z) in. ) | 152.4 (X) x 101.6 (Y) x 60.5 (Z) mm (6 (X) x 4 (Y) x 2-3/8 (Z) in.) |
| Max. table load weight | 1000 g (2.2 lb.) | 500 g (1.1 lb.) |
| Interface | Serial (RS-232C) | |
| Control keys | STANDBY key, VIEW key, TOOL-UP key, TOOL-DOWN key | |
| LED | SCANNING MODE LED, MODELING MODE LED, VIEW LED | |
| Power Pack | Exclusive AC adapter (DC+19V 2.1 A) | |
| Acoustic noise level | Standby mode: under 35 dB (A) Operation mode (not cutting): under 70 dB (A) (According to ISO 7779) | |
| External dimensions | 476.8 (W) x 381.6 (D) x 305 (H) mm (18-13/16 (W) x 15-1/16 (D) x 12-1/16 (H) in.) | 426 (W) x 280 (D) x 305 (H) (16-13/16 (W) x 11-1/16 (D) x 12-1/16 (H) in.) |
| Weight (unit only) | 13.7 kg (30.2 lb.) | 9.6 kg (21.2 lb.) |
| Operation temperature | 5 to 40°C (41 - 104°F) | |
| Operation humidity | 35 to 80 % (no condensation) | |
| Included items | AC adapter, power code, Roland Software Package CD-ROM, MODELA Player 4, spindle unit, sensor unit, cap screw M4x15, tool, set screw M3x3, double-sided tape, front cover, hexagonal wrench (size: 3 mm), hexagonal wrench (size: 1.5 mm), positioning pins, clay, MDX-20/15 user's manual | |
