JH4040M技術參數:
產品型號 | JH4040M |
加工尺寸 | 400*400*120mm |
主軸電機 | 3000w |
雕刻速度 | 8000mm/min |
刀具 | φ3.175、φ4、φ6可選配 |
指令格式 | HPGLG 代碼 |
分辨率 | 0.01mm |
主軸轉速 | 6000-24000rpm |
XYZ導軌 | 進口直線導軌 |
XYZ傳動方式 | 德國進口精密研磨滾珠絲桿 |
■ 可選配分度頭旋轉裝置 ■可選配伺服系統
■ 可選配浮動刀頭 ■可選配吸塵裝置
■ 可選配鑄鐵臺麵 ■可選配水冷卻裝置
■ 可選配吸氣裝置
機型特點:
X,Y,Z各軸均采用進口直線導軌；
全模具化生產，機械穩定性有保證；
機體，龍門立柱均采用整體金屬鑄造件，剛性好，運行平穩，機床整體振動小；
X,Y,Z各軸均采用進口高精度模製滾珠絲桿，滑塊預緊配置，保證滑塊無間隙，加工精度有保證；
兼容TYPE3/ARTCAM/文泰等各種CAD/CAM設計軟件；

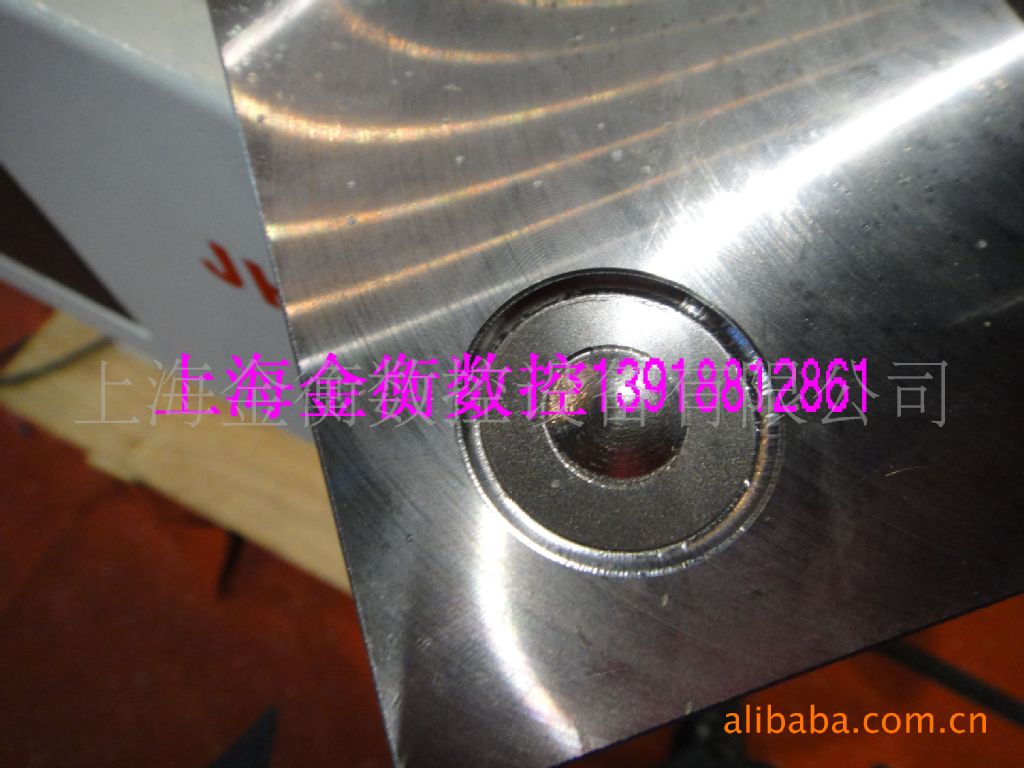

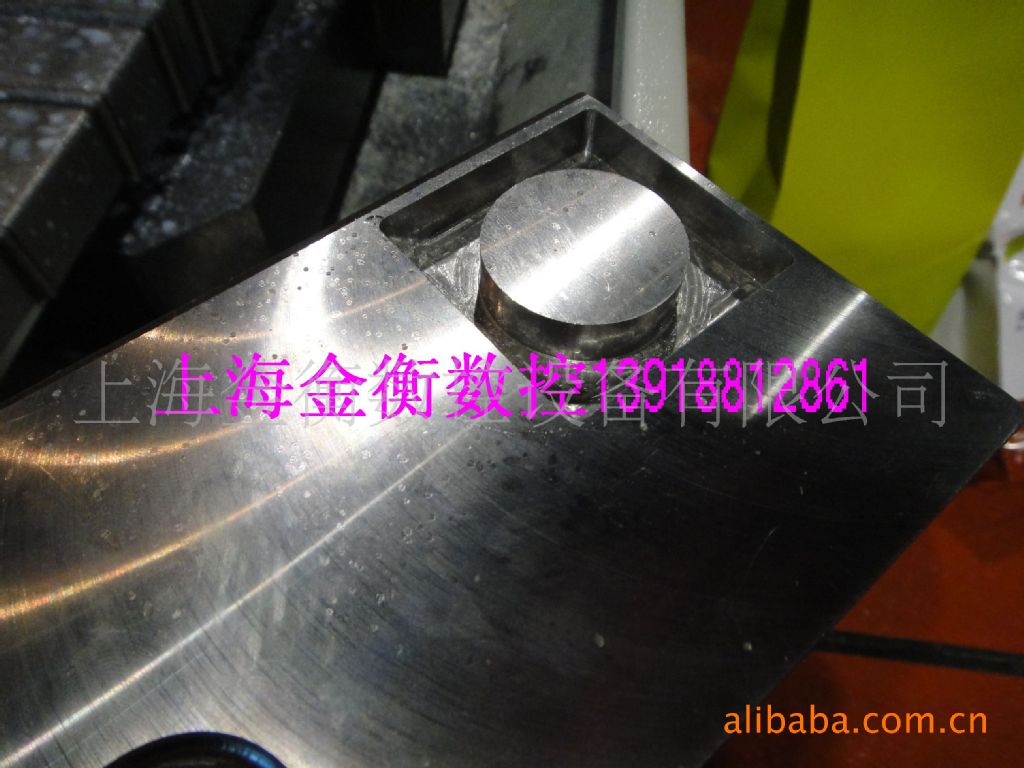

擅長對各類工件進行高效精密加工。
適用范圍

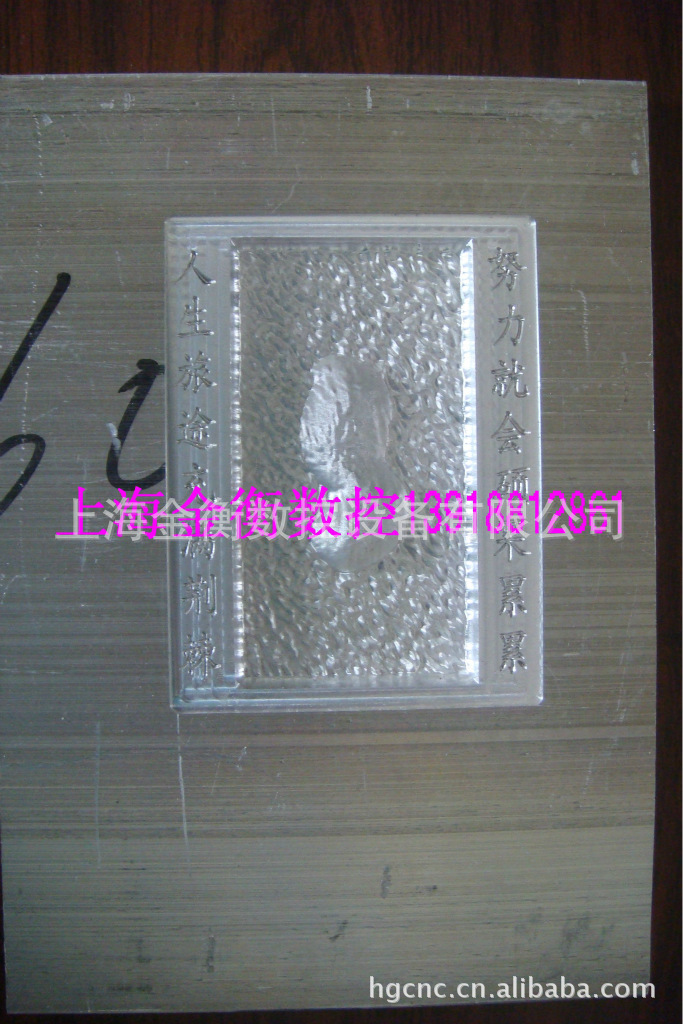

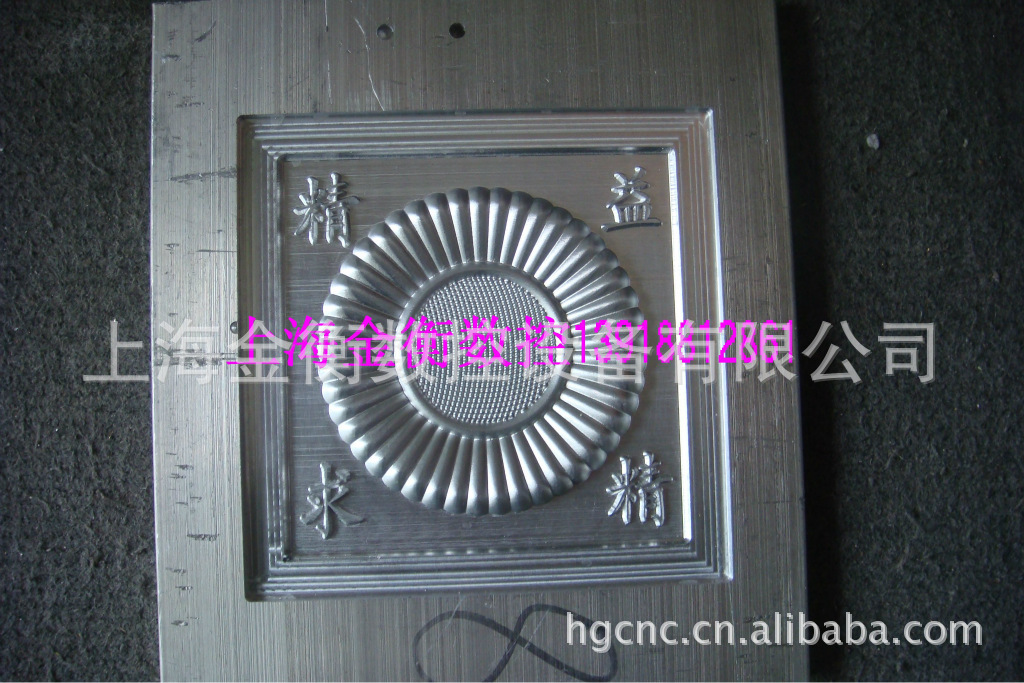

功能強勁、使用方便、堅固耐用、性能可靠、價格經濟，主要應用於工業模具、精密沖模、熱切模、建築模型、廣告標牌、銘牌、指示牌、胸牌印章、燙金版、PCB版、壓痕板、機表麵板、電療、玉石、工藝飾品、木工製品、鐵、銅、鋁、塑料板等產品的加工和製作。
上海金衡數控設備有限公司
聯系人：李建
電話：021-51083403/13918812861
傳真：021-51083413
QQ:345564222
Technical Data
Model | JH4040M |
Working Area | 400*400*120mm |
Spindle Motor | 3kw |
Motion Speed | 8000mm/min |
Engraving Tools | Φ3.175、φ4、φ6 |
Dictate Format | HPGL、G CODE |
Resolution | 0.01mm |
Rotation Speed | 6000-24000rpm |
XYZ Rail | import linear rail |
XYZ Driving Mode | imported high density mould rolling ball screw from Germany |
Optional：
◆Rotary device ◆Servo system
◆Floating head ◆Dust collecting system
◆Cast iron table ◆Water cooling system
◆Vacuum system
Distinguished Features:
◆imported linear guiding rail for X、Y and Z axis;
◆Adopting mold production to ensure the machine stability;
◆Integral iron cast structure for machine body and gantry to ensure better ragidity、more smoothly running and less vibration for whole machine;
◆imported high density mould rolling ball screw for X、Y and Z axis; sliding warning devices to make sure no clearance and high precision in processing ;
◆Compatible with popular CAD/CAM software such as TYPE3、ArtCAM、and Artgrave etc.
◆Be good at processing kinds of materials in high efficiency and high precision;
Application :
Strong functions, easy operation ,sturdy, durable realizable performance, reasonable price, rich functions ,wide application; can be used to process and make industrial mould, punching moulds and thermos dies ,construction models, sign products ,bill plates ,chest brands ,seals, metal foil moulds ,PCB, creasing plate, instrument panel, jade, graphite, electrode , articals ,wood , copper、iron、aluminum plates ,etc.
Shanghai Jinheng CNC Machine CO.,LTD
Tel.: 86-21-51083403
Fax: 86-21-56773263
Mobile:86 013918812861
