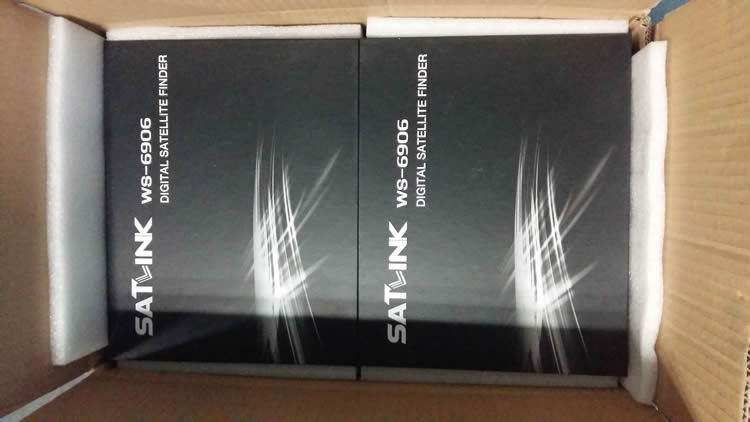

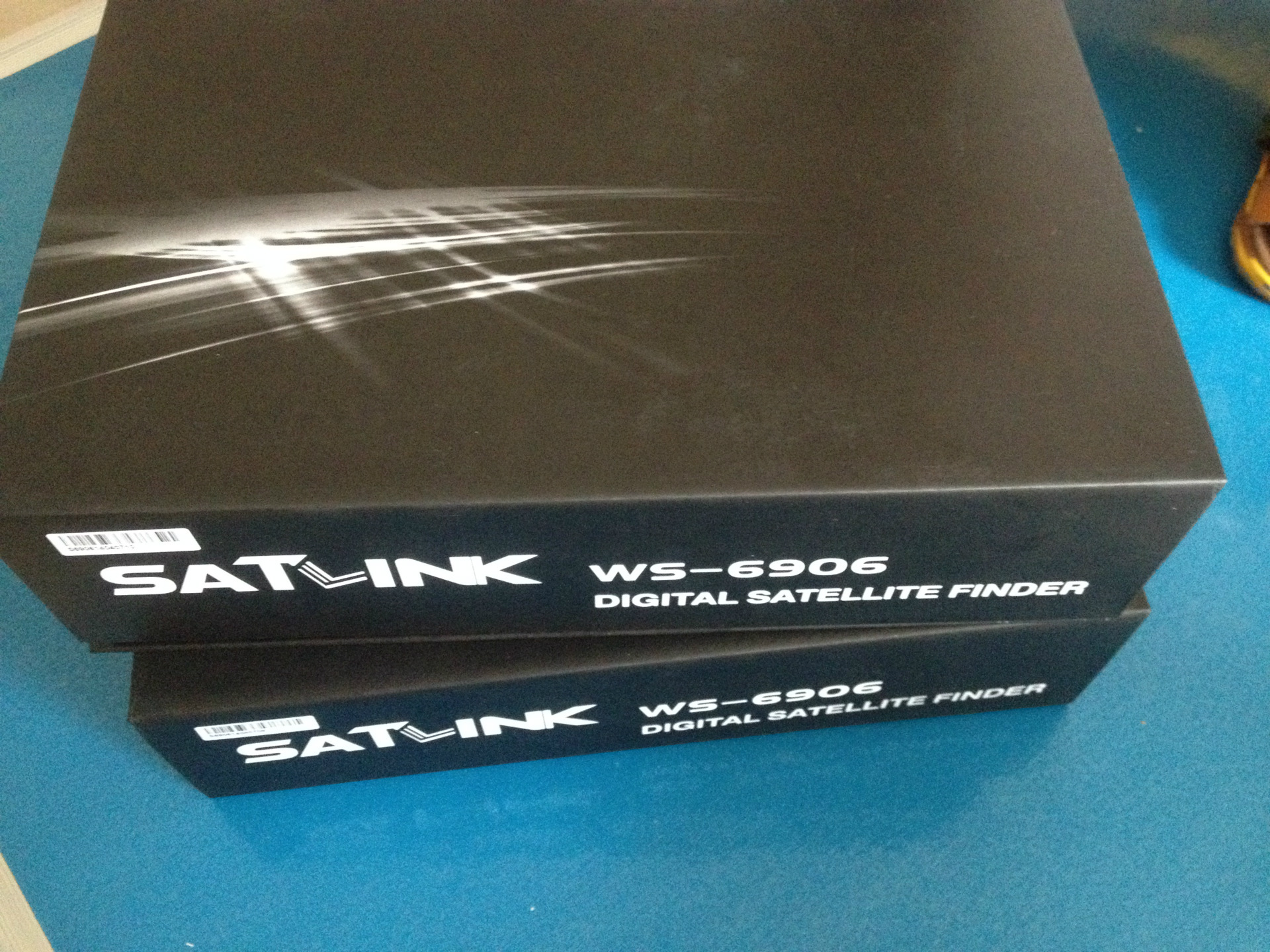

original meter satlink ws6906 ws-6906 現貨
產品介紹：
- 3.5 inch LCD Colour Screen
- Live FTA Digital Picture and Sound
- Watch the free channels
- Signal Lock Light and Sound
- Bit Error Rate Readout
- Carrier to Noise Readout
- dBuV Readout
- Lithium-ion 1950mA Battery
- DiSEqC & 22kHz Switch Control
- Freq range: 950mHz-2150mHz
- Signal level: 65dbm~25dbm
- Symbol rate: 2mbps~45mbps
- Video format: PAL/NTSC/SECAM
- Software Upgradeable via USB

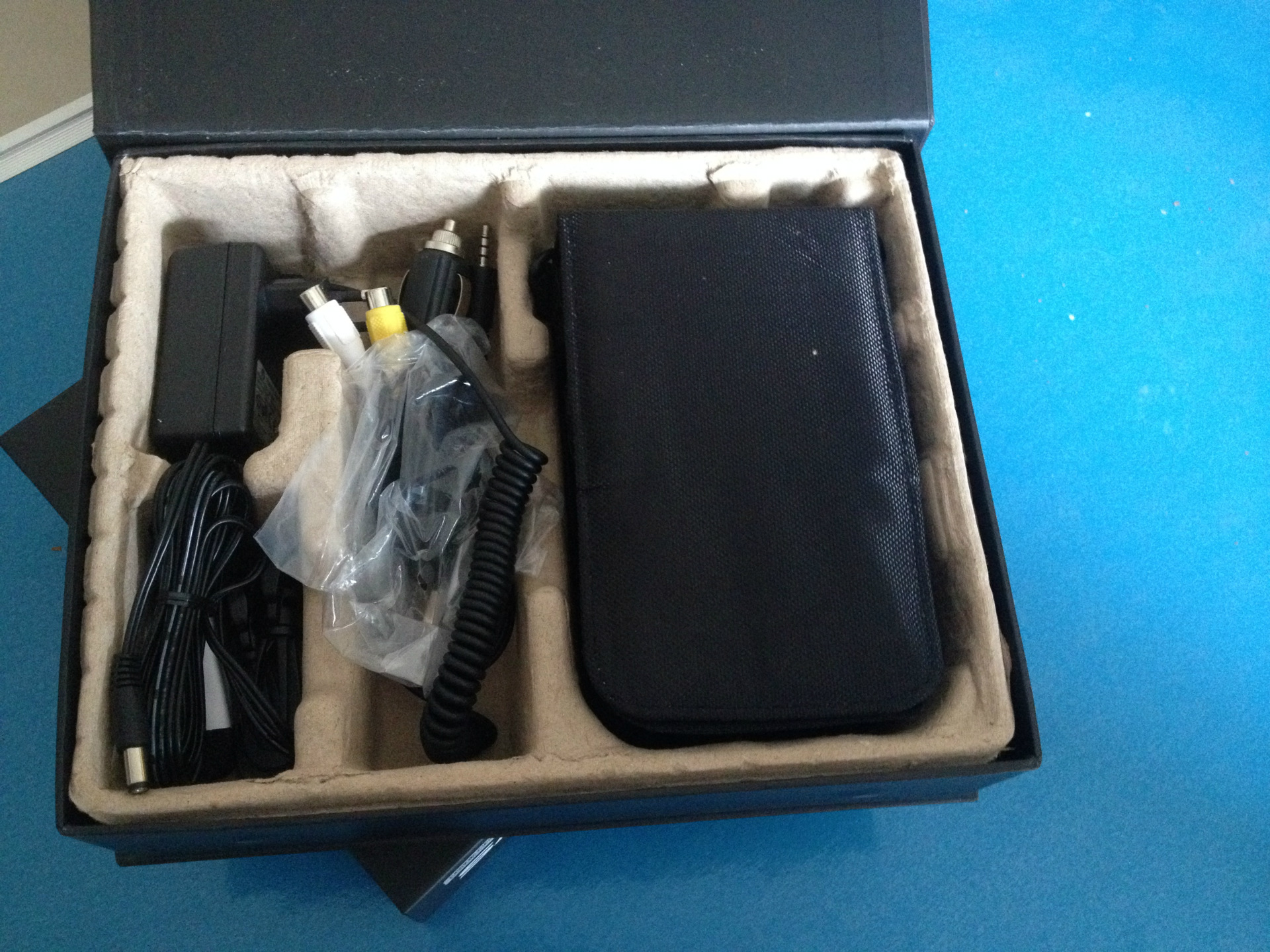

- Includes 240v Charger
- 12volt Cigarette Lighter Cable
- USB Cable & Strap
- Size: 158x95x45,Very small and portable
-
System capabilities
Fully DVB compliant
Yes
LNB/Tuner input
Connector
F type,male
Frequency range
950MHz-2150MHz
Signal lever
-65dBm~-25dBm
LNB supply
13/18V,max400mA
LNB switch control
22KHz
DiSEqC
Ver 1.0
Demodulator
Front end
QPSK
Symbol rate
2Mbps~45Mbps
SCPC and MCPC Capable
Yes
Spectral inversion
Auto conversion
System resource
Processor
32bit processor (200MHz)
SDRAM
16Mbyte
FLASH
2Mbyte
EEPROM
8Kbyte
Video decoder
MPEG 2
Main Proflie@Main Level
Data Rate
up to 15M bits/s
Resolution
720*576,720*480
Video format
PAL/NTSC/SECAM
MPEG Audio
MPEG 1 layer 1&2
Type
Mono
Sampling rates
32,44.1 and 48KHz
Serial data interface
Connector
USB type
Power supply
Li-oN Battery
1950 mA
Supply voltage
12.6Volt
charger
90-240V
Panel connectors
Digital tuner input
F type, male
Physical Specification
Size
9.5x15.5x4.5 (cm)
Weight(Net)
0.5 Kg
各位老板，因為這些機器都是外貿出口的，全英文操作系統和說明書，請大傢下單時候，註明您需要出口的國傢或者所需配套的電源插頭的規格（ 歐規，英規，美規）。多謝您的支持和幫助！
