bax頻閃觀測機,Nova-Strobe頻閃機,蒙拿多閃頻機,BAX手持式頻閃機_印刷檢測儀器_專用儀器儀表_儀器、儀表_貨源

Nova-Strobebax型頻閃觀測機數字液晶顯示,電源驅動30--10,000FPM RMB4,000.
Nova-Strobebbx型頻閃觀測機數字液晶顯示,電池驅動30--10,000FPM RMB4,900.

BAX頻閃機技術參數：

型號	Nova-Strobe
	bax	bbx
測量范圍	30-10000FPM
精度	±1FPM
分辨率	1FPM
燈管壽命	5千萬次
閃能	140mJoule
平均功率	8 W
連續工作時間	--－	6000FPM用60分鐘
電源	220V-240V交流電	充電電池
重量	0.72kg	1.2kg
尺寸	229×93×92mm 反光麵直徑：122mm手柄長度：108mm

The Nova-Strobe series represents the latest in portable stroboscope technology. Both the bax and bbx are simple to operate, just point and shoot. Lightweight and bright with flash rates to 10,000 flashes per minute (FPM) these strobes are comfortable to hold and will operate continuously with no danger of overheating.

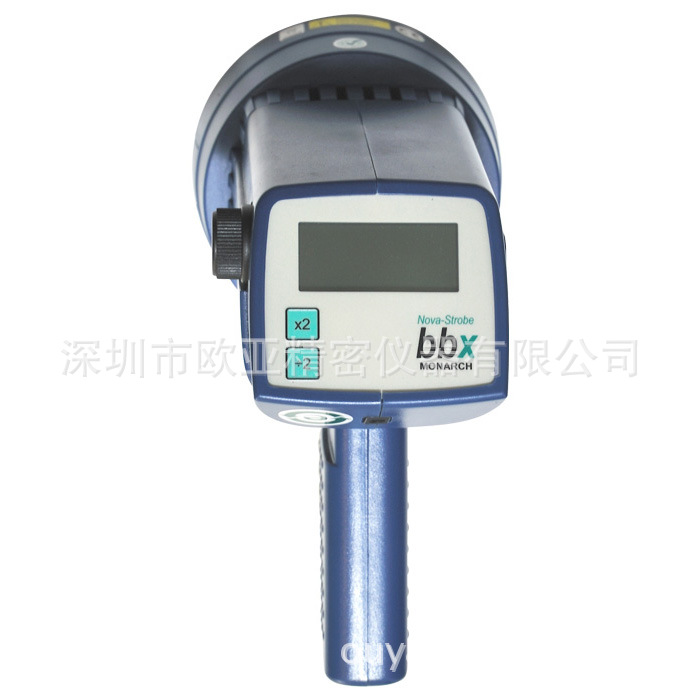

The bbx battery operated stroboscope weighs only 1.9 lbs. (0.86kg) and will run continuously for 2 hours on a single charge. A slow charger is included. Re-charge time is 14 hours.

The bax stroboscope is AC mains powered (115 or 230 Vac) and weighs only 1.5 lbs. (0.68 kg). A large digital LCD is easy to adjust and read. The flash rate adjustment is quickly made with the tactile tuning knob.

All New Nova-Strobe BAX and BBX provide a low-cost digital display stroboscope.

Cost effective

Powerful light output (20% brighter than competitive models!)

Lightweight for easy handling

Electronic switching provides continuous cool operation

Tripod mounting bushing in handle

Internal Rechargeable NiMH batteries or AC powered

SPECIFICATIONS	Nova-Strobe BBX Basic, Battery	Nova-Strobe BAX Basic, AC Power
Range Flashes/Minute	30-10,000 FPM / RPM	30-10,000 FPM / RPM
Display	Digital LCD	Digital LCD
Accuracy/Resolution	0.002% of setting or +/- 1 lsd /1 FPM	0.002% of setting or +/- 1 lsd /1 FPM
Flash Energy/Duration	230 mJoule up to 3450 FPM / 8-20 usec	230 mJoule up to 3450 FPM / 8-20 usec
Average Power-Watts	>13W above 3450 FPM	>13W above 3450 FPM
Flash Tube & Life (typical)	High Power Xenon - 100 million flashes typical	High Power Xenon - 100 million flashes typical
Operating Time (charged batteries)	2 hours typical @ 1800 FPM	Continuous (AC powered)
Size (L x W x H)	Body: 9" x 3.66" x 3.56" (229 x 93 x 90 mm); Reflector Housing: 4.8" (122 mm) diameter; Handle: 4.25" (108 mm) long
Power	Internal NiMH rechargeable batteries	115 Vac, 50-400 Hz or 220-240 Vac, 50-400 Hz
Weight	1.9 Lbs. (0.86 kg)	1.5 Lbs. (0.68 kg)

美國蒙拿多頻閃觀測機
1. Nova-Strobe

BBL型 LED光源精度0.01FPM 30-500,000FPM

DBL型 LED光源精度0.01FPM 30-500,000FPM 外接轉速

PBL型 LED光源精度0.01FPM 30-500,000FPM 轉速相位延遲
bax型數字液晶顯示, 電源驅動 30--10,000FPM
bbx型數字液晶顯示, 電池驅動 30--10,000FPM
dax型數字液晶顯示, 電源驅動 30--20,000FPM
dbx型數字液晶顯示, 電池驅動 30--20,000FPM

2. Phaser-Strobe pbx型帶時間及角度延遲 30--50,000FPM

3. Palm Strobe psx型超小型可拆卸充電電池 100-12,500FPM
psx 備用電池包
頻閃機備用燈管L-1903，L1904

4. ROS光電傳感器
ROLS激光傳感器
IRS紅外傳感器
SPSR自供電傳感器
SLS激光傳感器
5. GE-200發動機轉速表傳感器

頻閃機是以一定頻率閃動的光源。在用頻閃機觀測高速旋轉或運動的物體時，通過調節它的閃動頻率，使其與被測物的轉動或運動速度接近並同步時，被測物雖然在高速運動著，但看上去卻是緩慢運動或相對靜止的。這種視覺暫留現象，使人目測就能輕易觀測高速運動物體的運行狀況。如各類轉子、齒輪嚙合、振動設備診斷、紡織、印刷、包裝生產線、高速物體表麵缺損及運行軌跡。頻閃機被廣泛應用於機械製造、印刷、輕工、紡織、電力、醫藥、食品加工等行業。
