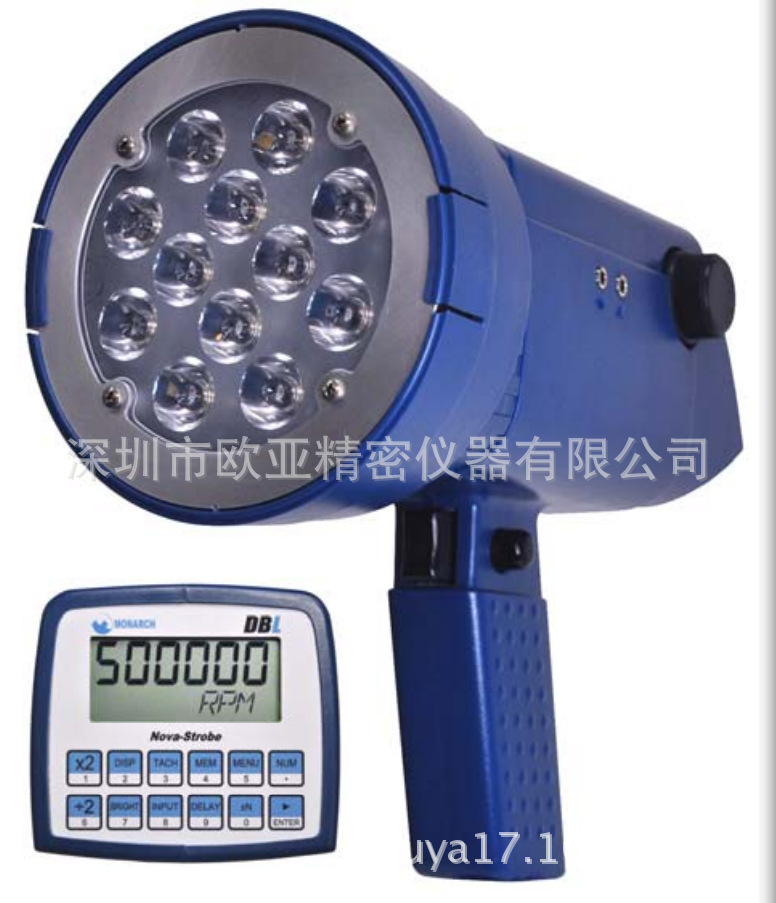

DBL頻閃機,頻閃觀測機,閃頻機,頻閃燈,閃光燈,轉速計
DBL頻閃機在測量量程方麵可以到達30-500000RPM，滿足瞭不同用戶的需求，LED頻閃機裝有12隻LED燈管，不但從亮度效果方麵有瞭顯著提高，而且非常省電，大大提高瞭電池的效率，產熱低，非常適合長時間使用！
美國蒙拿多MONARCH采用LED光源系列頻閃機，
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM 外接轉速
PBL型 LED光源 精度0.01FPM 30-500,000FPM 轉速 相位 延遲
DBL頻閃機技術參數：
參數 | DBL |
測量范圍RPM/FPM | 30-500000 |
顯示 | 液晶背光顯示 |
精度 | 0.02%顯示值或0.01FPM |
亮度 | 3000lux@6000FPM,20cm處 |
光源 | 12個LED燈管 |
色溫 | 6300°K |
外接模式 | TTL(24Vdc)輸入，TTL（3.3Vdc最大）輸出 |
轉速模式 | 0-500000RPM |
可編程存儲器 | 有 |
內部相移 | 有 |
相位延遲 | N/A |
時間延遲 | N/A |
虛擬轉速 | N/A |
連續工作時間 | 8-10小時@1800RPM |
電源 | 50-60HZ內部鎳氫充電電池 |
重量 | 860g |
尺寸 | 229×93×90mm |
The Monarch Nova-Strobe LED family of rugged industrial stroboscopes provide an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications. The Basic BBL is designed for simple stop motion inspection and RPM measurement applications. The Deluxe DBL adds internal phase shifting, memory for up to 5 preset flash rates, N.I.S.T. calibration certificate and tachometer mode for speed measurements up to 500,000 rpm using optional remote sensors or TTL pulse input/output. The top of the line Phaser PBL has all the features of the DBL and adds external phase delay, time delay and virtual RPM mode. The PBL will also run continuously, 24/7 with the power supply/recharger. Each unit is available stand alone or as a kit.
FEATURES
- Flash rates from 30 to 500,000 flashes per minute
- Diagnostic inspection and RPM checks
- Digital LCD backlit display
- Tripod mounting bushing (1/4-20) in handle
- CE marked and RoHS compliant
- Flash rate may be displayed in Flashes per Minute (FPM) or Flashes per Second (Hz)
- Adjustable brightness control
- Lightweight Industrial design
- 12 button keypad makes entering flash rates extremely quick (DBL, PBL models)
- Individual input and output TTL jacks (1/8 inch phone) provides power to remote sensors and allows "daisy-chaining" of multiple strobes. A Tachometer mode allows accurate speed measurement up to 500,000 RPM using external sensors (DBL, PBL models)
- Brightest portable LED strobes available
- NIST Certificate of Calibration included with DBL and PBL models
- Continuous operation, 24/7 (PBL)
BENEFITS OF LED'S
- Energy efficient with long battery life (8-10 hours typical)
- Extremely bright, uniform light output
- Completely silent
- Cool operation
- No lamp replacements
- Extremely high flash rates (up to 500,000 FPM)
頻閃觀測機
1. Nova-Strobe
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM 外接轉速
PBL型 LED光源 精度0.01FPM 30-500,000FPM 轉速 相位 延遲
bax型 數字液晶顯示, 電源驅動 30--10,000FPM
bbx型 數字液晶顯示, 電池驅動 30--10,000FPM
dax型 數字液晶顯示, 電源驅動 30--20,000FPM
dbx型 數字液晶顯示, 電池驅動 30--20,000FPM
2. Phaser-Strobe pbx型 帶時間及角度延遲 30--50,000FPM
3. Palm Strobe psx型 超小型 可拆卸充電電池 100-12,500FPM
psx 備用電池包
頻閃機備用燈管L-1903，L1904
4. ROS光電傳感器
ROLS激光傳感器
IRS紅外傳感器
SPSR自供電傳感器
SLS激光傳感器
5. GE-200發動機轉速表傳感器
