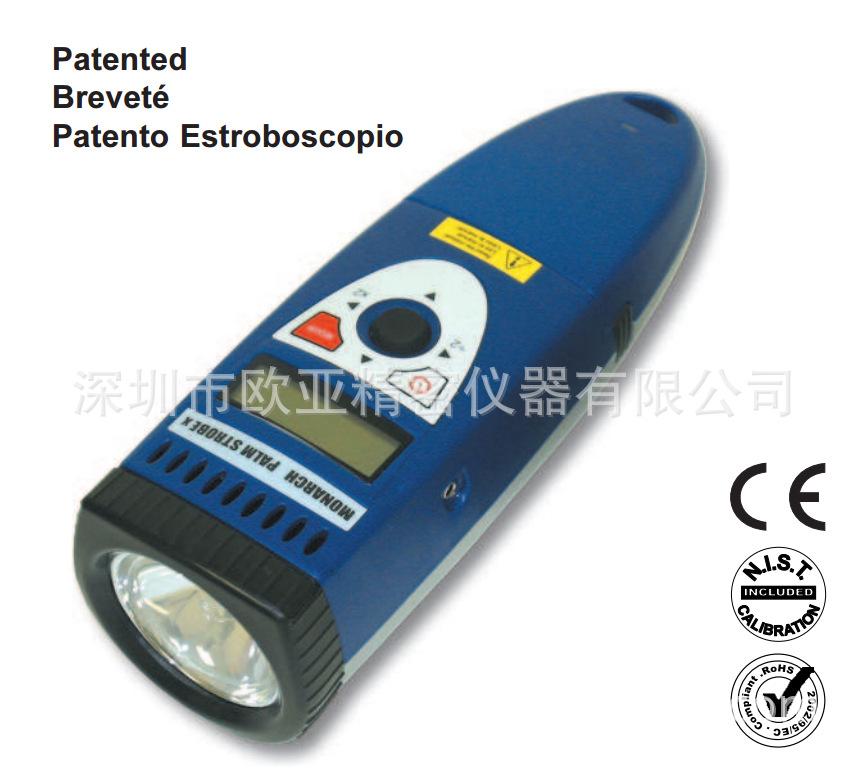

Palm Strobe Psx超小型 可拆卸充電電池 100-12,500FPM
PSX超小型頻閃機技術參數：
|
PALM STROBE x Offers excellent brightness, exceptional features and extra long battery life. Unique one-touch joystick type button allows single hand operation for fast frational RPM tuning. selec mode of operation for internal tuning, external TTL input, tachometer display and x2 /2 functions. Eight memory positions provide rapid recall of user defined frequencies.
FEATURES
- PALM STROBE x has a removable, re-chargeable battery pack.
- Unique joy-stick tuning button for single hand operation
- Light weight
- Flash rates to 12,500 FPM
- Tachometer mode from remote sensors
- TTL compatible input/output
- N.I.S.T. Calibration included
- Available as a complete Kit with Strobe, (2) spare batteries, re-charger (115 or 230 or Universal Vac), Spare Lamps, Holster and Carrying Case.
PALM STROBE X SPECIFICATIONS
(prices and specifications subject to change without notice).
Display6 digit alphanumeric backlit LCDLight Power7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPMFlash Duration10 - 30 µseconds typicalFlash Lamp Life100 million flashes typicalInternal Mode
Flash Range: 100 - 12,500 FPMExternal ModeRange and Display: 0 - 14,000 FPMResolution: ± 0.1 FPMupdat Rate: 1 second typicalAccuracy: ± 0.5 FPM or ± 0.01% of reading.FPM Accuracy: ± 0.2 FPMupdat Rate: InstantaneousTrigger to Flash Delay: < 5 µsec External Input: 0 - volt TTL compatible (+12V pk max) 20 µsec min pulse width. Positive edge triggered.Tachometer ModeRange: 5 - 250,000 RPMAccuracy: ± 0.01% or 0.1 RPMUpdatete Rate: 1 second typical
External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width. Positive edge triggered
Run Time2 hour typical at 1800 FPM with fully charged batteries.AdjustmentFour Quadrant Pressure Sensitive Joystick Button adjusts flash rate, x2 and ÷2Output Pulse250 µsec positive pulse, 5 Vdc typicalPowerRemovable NiMH Rechargeable Battery Pack with integral charge control electronicsWeight1.2 lbs (0.55 kg) including batteryStrobe Dimensions3.04 x 9.34" (77 x 237mm)
美國蒙拿多頻閃觀測機
1. Nova-Strobe
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM 外接轉速
PBL型 LED光源 精度0.01FPM 30-500,000FPM 轉速 相位 延遲
bax型 數字液晶顯示, 電源驅動 30--10,000FPM
bbx型 數字液晶顯示, 電池驅動 30--10,000FPM
dax型 數字液晶顯示, 電源驅動 30--20,000FPM
dbx型 數字液晶顯示, 電池驅動 30--20,000FPM
2. Phaser-Strobe pbx型 帶時間及角度延遲 30--50,000FPM
3. Palm Strobe psx型 超小型 可拆卸充電電池 100-12,500FPM
psx 備用電池包
頻閃機備用燈管L-1903，L1904
4. ROS光電傳感器
ROLS激光傳感器
IRS紅外傳感器
SPSR自供電傳感器
SLS激光傳感器
5. GE-200發動機轉速表傳感器
頻閃機是以一定頻率閃動的光源。在用頻閃機觀測高速旋轉或運動的物體時，通過調節它的閃動頻率，使其與被測物的轉動或運動速度接近並同步時，被測物雖然在高速運動著，但看上去卻是緩慢運動或相對靜止的。這種視覺暫留現象，使人目測就能輕易觀測高速運動物體的運行狀況。如各類轉子、齒輪嚙合、振動設備診斷、紡織、印刷、包裝生產線、高速物體表麵缺損及運行軌跡。頻閃機被廣泛應用於機械製造、印刷、輕工、紡織、電力、醫藥、食品加工等行業。
