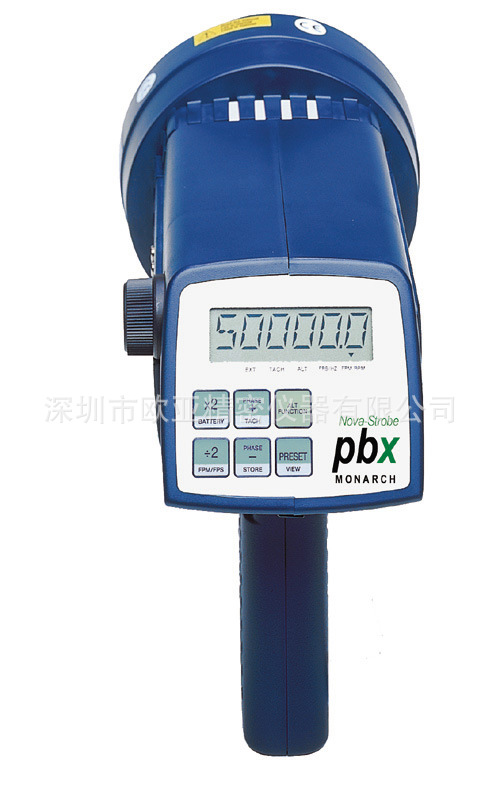

Phaser-Strobe pbx型 帶時間及角度延遲 30--50,000FPM
pbx頻閃機技術參數：
型 號 | Phaser-Strobe |
pbx | |
測 量 范 圍 | 30-50,000FPM |
精 度 | ±0.01％ |
分 辨 率 | 0.05FPM |
燈 管 壽 命 | 1 億次 |
閃 能 | 150mJoule<10,000FPM,50mJoule>10,000FPM |
平 均 功 率 | 10 W |
可編程記憶 | 有此功能 |
內 部 模 式 | 有此功能 |
相 位 延 遲 | 0－359°±0.1° |
時 間 延 遲 | 0－6.500s±0.0001s |
閃動持續時間 | 10－30微秒 |
外 部 輸 入 | 24V max |
外 部 驅 動 | TTL（24V max） |
電 源 | 充電電池(充電電壓100V-240Vac) |
重 量 | 1.2kg（含電池） |
尺 寸 | 229×93×92mm 反光麵直徑：122mm 手柄長度：108mm |
The Phaser-Strobe pbx incorporates the unique design features of the Nova-Strobe dbx with an increased operating range of 30 to 50,000 flashes per minute, as well as external phase- shifting. The unique digital adjustment knob can selec the decade for adjustments, so coarse and fine adjustments of flash rates are made quickly and with significantly better resolution than competitive units. The memory feature of the Phaser-Strobe pbx allows nine flash rates to be stored - displayed in flashes per minute or flashes per second. Phaser-Strobe pbx operates with internal rechargeable batteries or continuously from AC line power with the power supply/recharger.
FEATURES
- Flash rates from 30 to 50,000 flashes per minute, The all digital, crystal controlled microprocessor keeps readings rock steady.

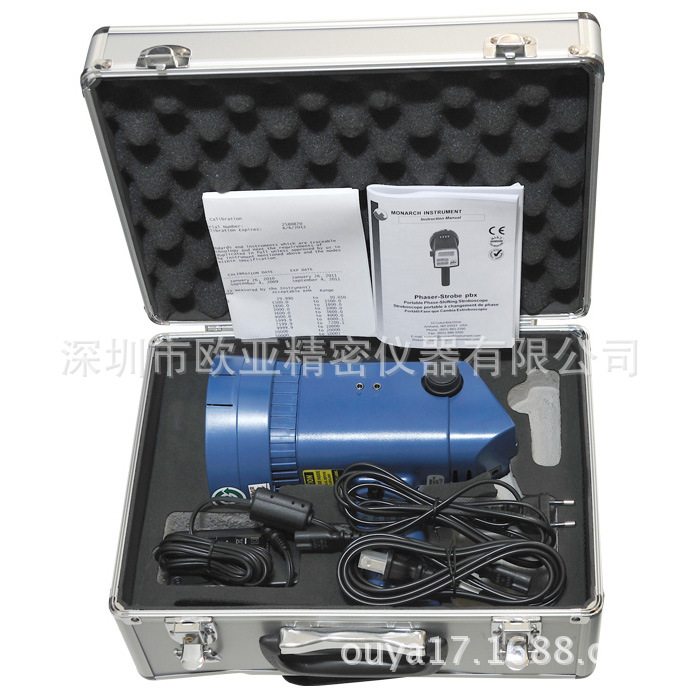

- pbx Kit (shown right) includes carry case and spare lamp
- Times 2 and divide by 2 push buttons allow easy checking for RPM harmonics and allow stop motion far beyond the 50,000 fpm limit.
- Store and recall up to 9 user selectable values. Last measurement memory, even with the power off.

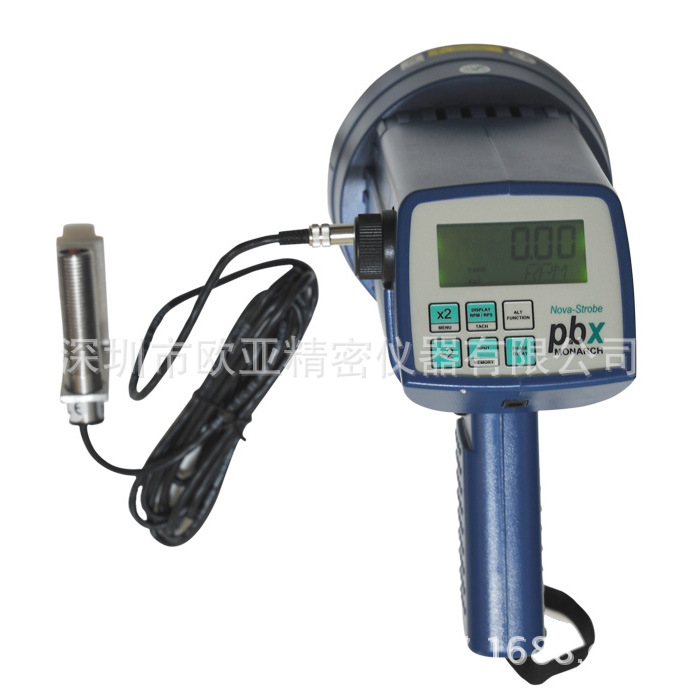

- Individual in and output TTL jacks provide power to remote sensors and allows "daisy chaining" multiple strobes. A Tachometer mode allows accurate speed measurement up to 200,000 RPM using external sensors.
- Dual-function delays in external mode. Delays adjustable as phase angle or time with resolution to 0.1 degree and 0.0001 seconds.
- Auto step mode provides slow motion appearance for high speed repetitive event.
- Backlit alphanumeric LCD display shows flash rate in flashes per second or flashes per minute and delays in degrees or milliseconds.
- NIST Certificate of Calibration included.
美國蒙拿多頻閃觀測機
1. Nova-Strobe
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM 外接轉速
PBL型 LED光源 精度0.01FPM 30-500,000FPM 轉速 相位 延遲
bax型 數字液晶顯示, 電源驅動 30--10,000FPM
bbx型 數字液晶顯示, 電池驅動 30--10,000FPM
dax型 數字液晶顯示, 電源驅動 30--20,000FPM
dbx型 數字液晶顯示, 電池驅動 30--20,000FPM
2. Phaser-Strobe pbx型 帶時間及角度延遲 30--50,000FPM
3. Palm Strobe psx型 超小型 可拆卸充電電池 100-12,500FPM
psx 備用電池包
頻閃機備用燈管L-1903，L1904
4. ROS光電傳感器
ROLS激光傳感器
IRS紅外傳感器
SPSR自供電傳感器
SLS激光傳感器
5. GE-200發動機轉速表傳感器
頻閃機是以一定頻率閃動的光源。在用頻閃機觀測高速旋轉或運動的物體時，通過調節它的閃動頻率，使其與被測物的轉動或運動速度接近並同步時，被測物雖然在高速運動著，但看上去卻是緩慢運動或相對靜止的。這種視覺暫留現象，使人目測就能輕易觀測高速運動物體的運行狀況。如各類轉子、齒輪嚙合、振動設備診斷、紡織、印刷、包裝生產線、高速物體表麵缺損及運行軌跡。頻閃機被廣泛應用於機械製造、印刷、輕工、紡織、電力、醫藥、食品加工等行業。
