美國進口TFP-01標準試驗彎指IEC61032試具B價格

This is the "international" test finger required by most IEC, EN and CSA standards, in addition to many UL standards. The Jointed Finger Probe is a high-precision probe built in exact accordance with IEC standards such as IEC 60950, IEC 61010, and is also used for CSA and UL standards. It features a palm simulator to prevent misuse, and restricted joint movement which simulates human finger movement. The finger is made of chrome-plated steel and the rest of the instrument is Delrin®.

This is the onLY Finger Probe available with a integral jack in the handle for continuity testing - as mandated by the IECEE CB Scheme.

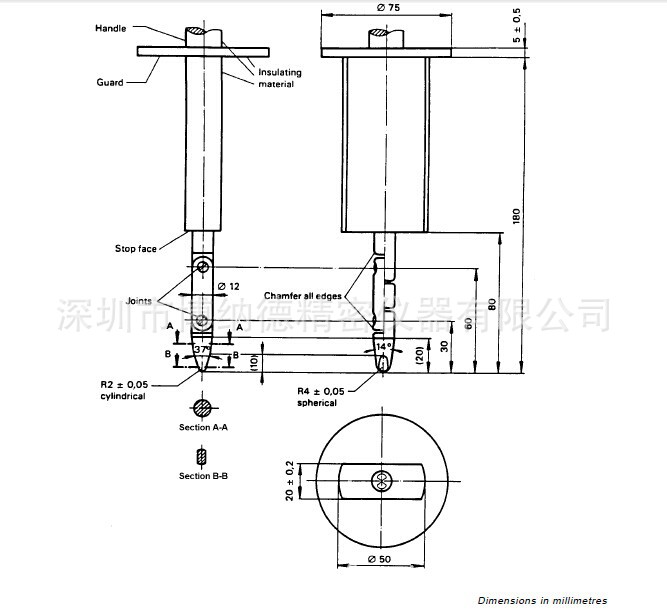

IEC61032-Probe B-Figure 2

技術參數：

  彎指直徑：12mm

  彎指長度：80mm（三節總長度）

  擋板直徑：50mm

  擋板長度：100mm

4.使用方法

   標準試驗指的關節部分不能觸及帶電部件或不能接近危險部件，並且50mm-20mm的擋板不能進入。

   防止接近危險部件的試驗要求中，B型試驗探棒需帶30±3 N推力。一般配合推拉力計使用。

   在防觸電測試中，需要接線和配置電源、燈泡裝置。

5.註意事項：試驗探棒為精密不銹鋼產品，使用中輕拿輕放，註意保養。
