廠傢直銷精確定位金銀銅鐵外貿出口型TS-500地下金屬探測器
型號：TS-500
名稱：TS-500地下金屬探測器
中英ENGLISH說明
本機器是采用最新技術研發的新一代金屬.它具有較大的探測深度和準確的識別能力，是專業型超深，特別適用於地層深部的探測作業.
在使用舊式金屬時，最令人討厭的問題是地麵的影響：隨著探測盤與地麵的距離變化機器的信號也跟著變化，若把探測盤掃過凹凸不平的地麵，這個變化就更大瞭，操作者仿佛到處都聽到信號聲，弄不清那裡真正埋有金屬.這種現象叫做"礦化反應".造成"礦化反應"的原因，是由於構成土壤和各種礦物使機器發出信號.在土壤結構復雜的地方，"礦化反應"非常強烈，它引起的信號比金屬信號還要大，這時操作人員就很難判斷發出信號的地方到底是埋有金屬還是"礦化反應".
本機器內設有地平衡線路，能排除一切"礦化反應"的影響，隻有在探測盤遇到金屬時才發出信號，從而大大提高瞭探測深度和準確性.
本機器探測方式分為地平衡模式和識別模式：在地平衡模式下適合在地麵搜索金屬物品，然後用金屬識別功能加以識別，在識別模式下可以黑色金屬如鐵等物體，隻能顯示有色金屬如黃金、銀等物體。另外它除瞭通過顯示表頭來區分金屬類別外它還可以通過音調功能設置區分金屬類別。
配備外置耳機介面，可接駁單聲道耳機，簡單易用；內置大容量可充電電池，有低電壓指功能，配備充電器，充滿電後可連續工作十小時以上。配備專用兵工鏟，方便野外作業。拉桿長1.05米。
應用范圍：配有大探盤設計，探測麵積寬，機器探測靈敏，聲音宏亮，有識別模式能區分有色金屬同黑色金屬。應用於大麵積的考古、尋找地下埋藏金屬物體的粗選。也可應用於軍隊做掃雷器。
規格參數
重量：約7.5kg
電源：DC12V蓄電池，可充電
探測深度：2-3.5米
信號頻率：9.6KHz
聲音頻率：400Hz
包裝尺寸:49*25.5*44mm
ENGLISH:

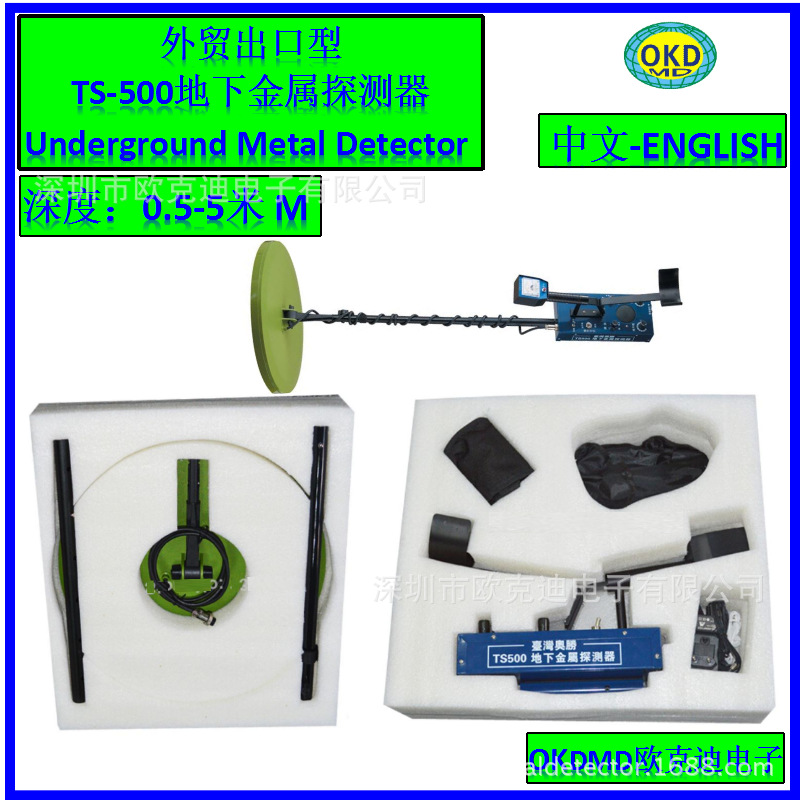

TS-500 Underground metal Detector
Function brief introduction
This product is a new genegration of metal detector with the adoption of the latest technology. It is a professional-type probe of greater detection depth and accurate recognition, especially suitable for deep stratigraphic exploration operations.
In the use of old-style metal detectors, the most annoying problem is the impact of the ground. As the distance between the disk and the grond changes, the signal of the equipment will also change. If the disk detect the rough ground surfaces, the change will be even bigger. The operator seems to hear sound signals everywher and is not able to identify wher the real buried metals are. This phenomenon is called "mineralization reaction." The causes of "mineralization reaction" are the structure of the soils and the signals caused by various of minerals. iIn a place with complex soil structure, "mineralization reaction"is very , and signal will be even more significant than the metal signals, then the operator would be difficult to identify between the "mineralization reaction" and signals casued by buried metals.
This apparatus equipped with balance lines, is able to remove all "mineralization reaction" effect, only react when the metal plate encountered with metals, thereby greatly improved the depth and accuracy of detection.
The size of the apparatus is equipped with two detection plates. Under normal circumstances, such as soil conditions in the interior, or more complicated place, can use the small probe set for conventional detection. Under conventional detection , It can work steadily and distinguish accurately, and has strong anti-interference ability. In exceptional circumstances, such as in the field of homogeneous soil, or the targets are buried deeply, you can use the large probe to deepen the detection depth. But the apparatus with greater detection depth is susceptible to clutter interference .
Specification
Ground Balance: Auto / Manual
Search Mode: Scan / metal Type
Max Search Depth: 5 M
Center frequency:437 kHz
Vibration Frequency: 4.19 MHz
Signal Frequency: 465 kHz
Audio Frequency: 450 kHz
Power Consumption: 0.5 W
Automatic Power Down: Yes
Low Battery Indication: Yes
Working Temperature: 10°C-60°C
Power Supply: DC 12V (8 x 1.5V AA Batteries)
Battery Life: up to 45 hours
Size: 18x32x 85cm
Packing Size: 53.5 x 19.4 x 30 cm
24小時售後服務.
