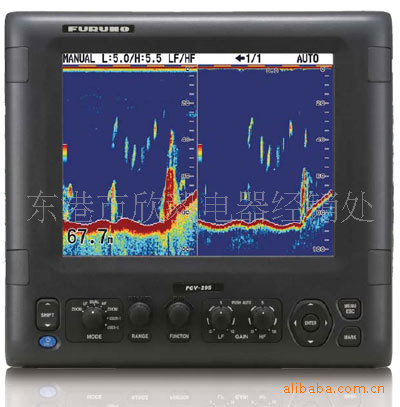

10.4" 'Fogging-Free' color LCD provides clear view in any weather conditions

Post-processing gain control applies to all existing returns on the display

White Edge function trace the bottom contour with a thin white line

FURUNO Digital Filter delivers crystal clear target presentation

FURUNO Free Synthesizer transceiver allows adjustable operating frequency

Power Requirements

12 or 24 VDC: 2.6 / 1.3 A

Transducer Plug on back of unit

WAGO

GENERAL

1. Operating Frequencies

The synthesized transceiver works with dual

frequencies in 28 to 200 kHz. Specify

transducer type when ordering, among

28/38/50/68/82/88/107/150/200 kHz

2. Output Power 1/2/3 kW

3. Power Reduction Auto/10 to 100% (in 10% step)

4. Tx Rate 20 to 3000/min

5. Pulselength Short1/Short2/Standard/Long/Manual (Manual

Pulselength: 0.1 to 5.0 ms)

6. RX Band Narrow/Standard/Wide

7. Amplifier High dynamic range

DISPLAY

1. Display 10.4" color LCD (VGA: 640 x 480)

2. Color 8/16/64

3. Brightness 450 cd/m2

4. Ranges 5 to 3000 m (Split Range available)

5. Shift 0 to 2000 m

6. Marker Zoom/Bottom-lock Expansion Ranges

5 to 2000 m

7. Display mode Single (HF/LF), Dual, Single + Zoom,

two Custom Modes

Zoom Mode (Bottom Lock, Bottom Zoom,

Marker Zoom), Mix Mode, Nav data, A-scope

8. Picture Advance Direction

Left, Right, L/R

9. Picture Advance Speed

Stop, 1/16, 1/8, 1/4, 1/2, 1/1, 2/1, 4/1,

Synchronized with own ship speed

10.Alarms Audio-visual alarms for a preset depth of water,

fish and a preset value of water temperature

11.Language English, French, Spanish, German, Italian,

Portuguese, Swedish, Danish, Norwegian,

Finish, Greek, Chinese, Japanese, Thai,

Korean, Russian

12.Others Auto Mode, Interference, Clutter, TVG, Color

Erase, Hue, Temp Graph, A-scope, White Marker

DATA INTERFACE

NMEA0183 (Ver. 1.5, 2.0 or 3.0; Any talker)

Input: BWC, GGA, GLC, GLL, GNS, GTD, HDG, HDT, MDA,

MTW, MWV, RMA, RMB, RMC, VHW, VTG, XTE

Output: DBT, DPT, DBS, MTW, TLL, SDmrk, VHW, RMB, dat

ENVIRonMENTAL CONDITIONS

Display Unit: -15 ºC to +55 ºC (IEC60945 tested)

Water Resistance: IP55 (When flush mounted)

POWER SUPPLY

12-24 VDC, 45 W max. 100/110/220/230 VAC with optional rectifier

EQUIPMENT LIST

Standard

1. Display Unit

2. Installation Materials and Standard Spare Parts

Option

1. Speed/temperature sensor

ST-02MSB (Thru-hull, bronze), ST-02PSB (Thru-hull, plastic)

2. Temperature sensor

T-02MSB (Thru-hull, bronze), T-02MTB (Transom, bronze),

T-03MSB (Thru-hull, bronze)

3. NMEA cable MJ-A6SPF0003-050C (5 m)

CO-SPEVV-SB-C 2P x 0.2SQLF (5/10/15 m)

4. Rectifier PR-62

5. Transducer (Specify the frequency and type of transducer)

1 kW: 28F-8 (28 kHz), 50B-6/6B (50 kHz), 50B-9B (50 kHz),

68F-8H (68 kHz), 88B-8 (88kHz), 200B-5S (200 kHz),

50/200-1T (50/200 kHz), 50/200-12M (50/200 kHz)

2 kW: 28F-18 (28 kHz), 28BL-6HR (28 kHz), 38BL-9HR (38 kHz),

50B-12 (50 kHz), 50BL-12/12HR (50 kHz), 82B-35R (82

kHz), 88B-10 (88 kHz), 200B-8/8B (200 kHz)

3 kW: 28F-24H (28 kHz), 28BL-12HR (28 kHz), 38BL-15HR (38

kHz), 50F-24H (50 kHz), 50BL-24H/24HR (50 kHz),

68F-30H (68 kHz), 88F-126H (88 kHz), 100B-10R (100

kHz), 150B-12H (150 kHz), 200B-12H (200 kHz)
