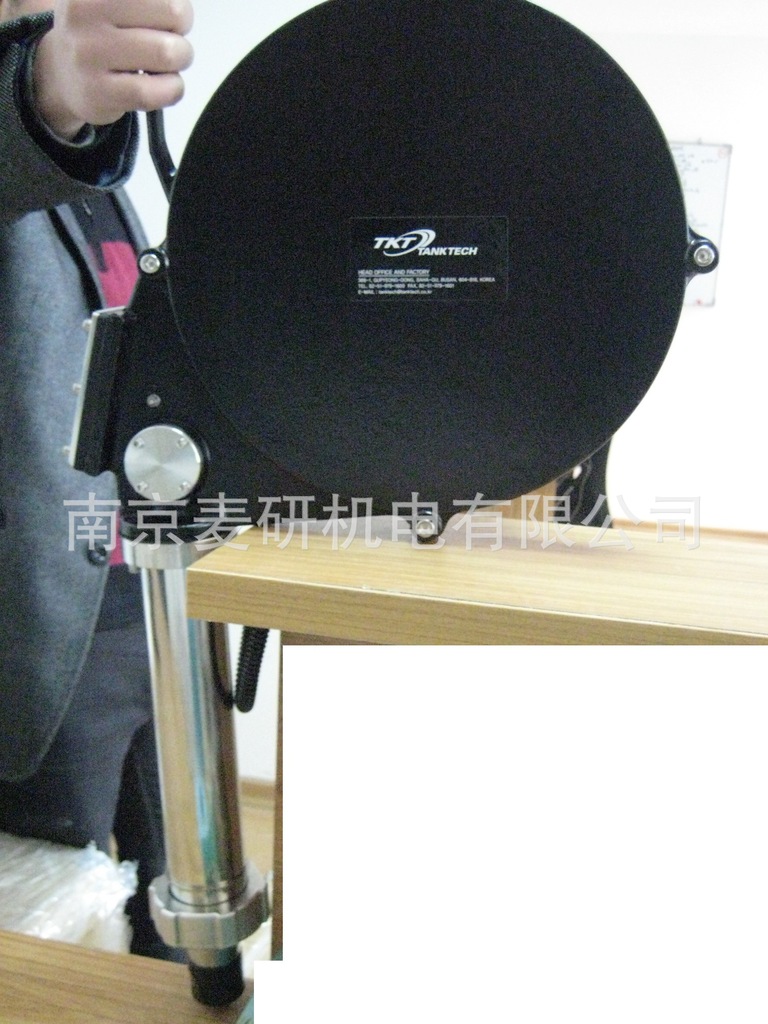

整體展示

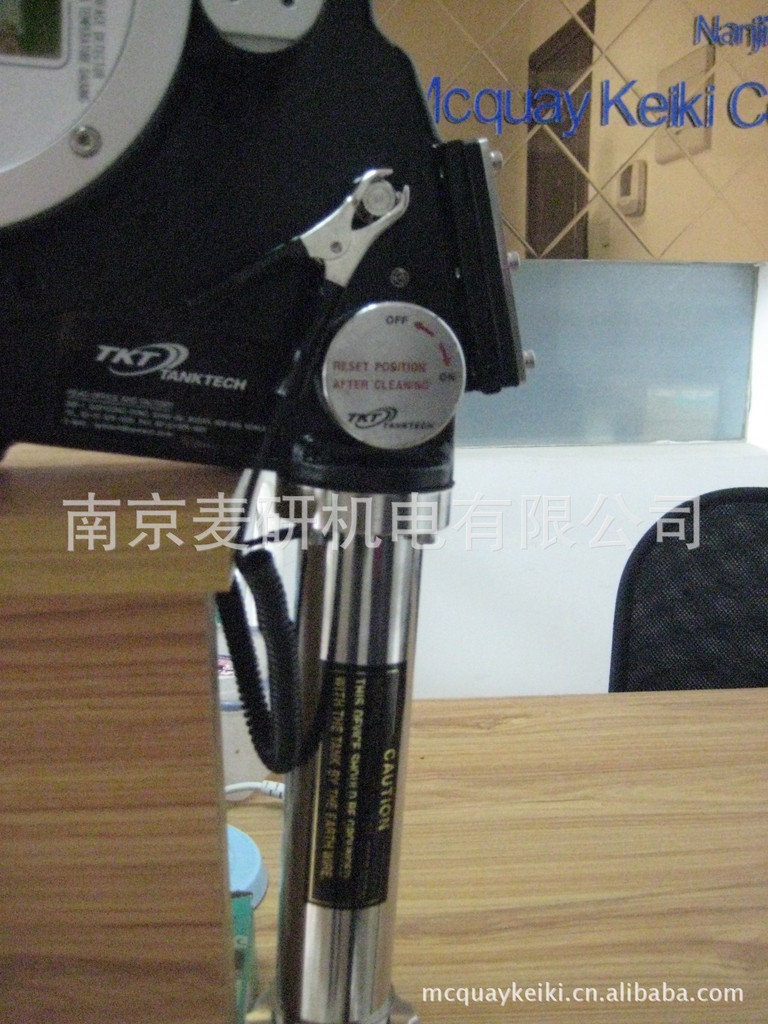

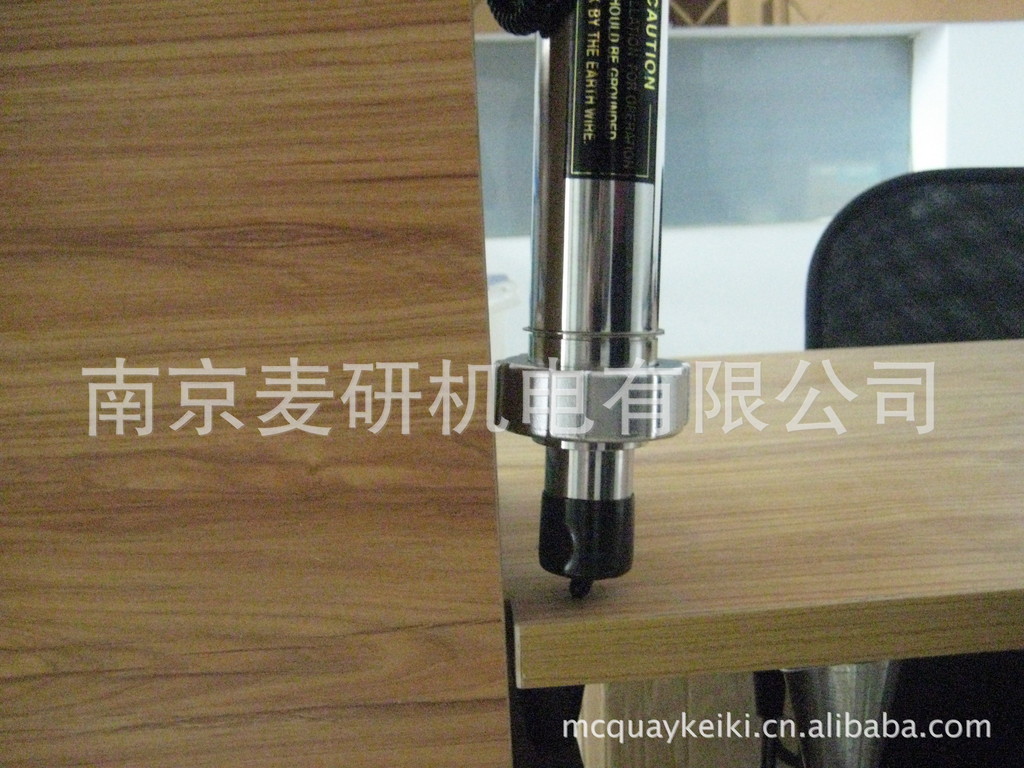

測量頭展示

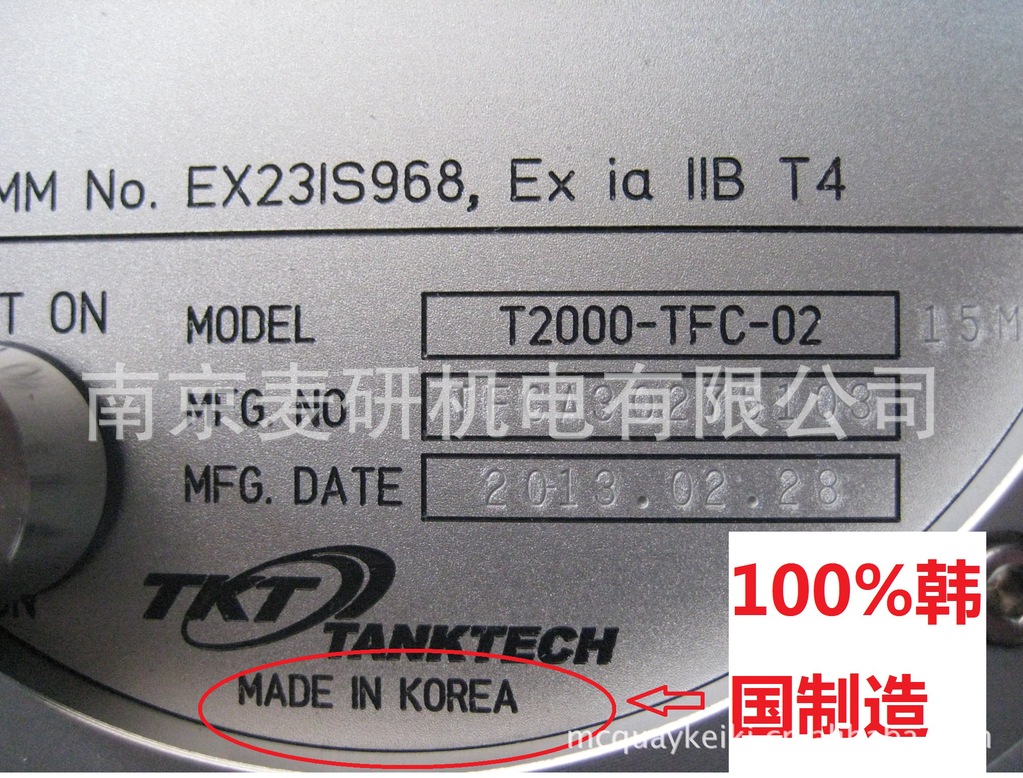

背麵特寫

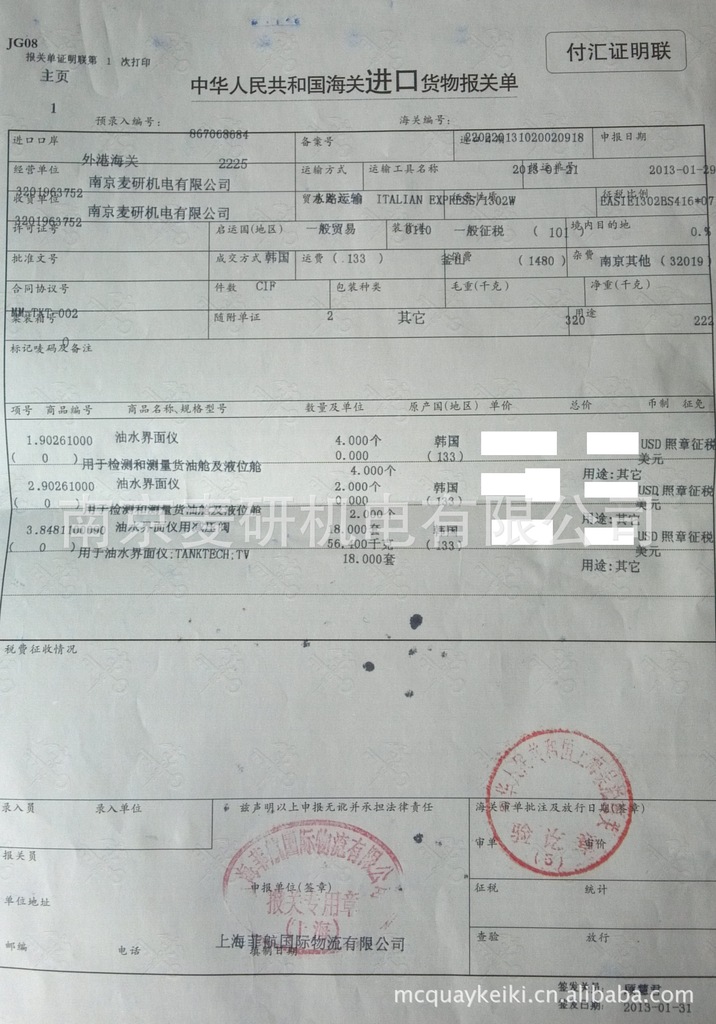

我公司進口報關單據

註：我公司TKT油水界麵機可按客戶船用要求製作各品牌對接介面

SPECIFICATION.油水界麵機技術參數

1-1 General Description一般概述

TANKTECH's Portable Oil/Water Interface Detector, T2000 series offer the
total solution for management

of cargo in tanks. This device can detect and measure theUllage,Oil/Water
InterfaceandTemperature

of cargo at the same time.

TANKTECH公司的T2000系列油水界麵機能為貨油的管理提供全麵的解決方案。這個裝置能在同一時間裡

檢測和測量貨艙的差容量、油水界麵及溫度。

1-2 Model No.型號:T2000-TFC-02

Accuracy of ullage, interface detection

差容量及界麵測量的精確度

±2 mm

Indication of level divided by ullage and interface

差容量及界麵之間的液位距離顯示

Visible and Audible

Tape length測量尺長度15M

Tape graduation測量尺刻度等級Metric

Tape resolution測量尺分辨度1 mm

Diameter of probe探頭直徑34mm

Minimum detectable level最小的檢測液位8 mm

Ambient temperature range周圍環境溫度范圍-20℃to 70℃

Temperature sensor measurement range溫度傳感器測量范圍-20℃to 110℃

Temperature measurement resolution溫度測量分辨度0.1℃

Accuracy over calibration range校準范圍的精確度±0.1℃( 0℃to 60℃)

Temperature reading mode溫度讀數方式℃(Celsius) or℉

LCD display液晶顯示4~7 Segment

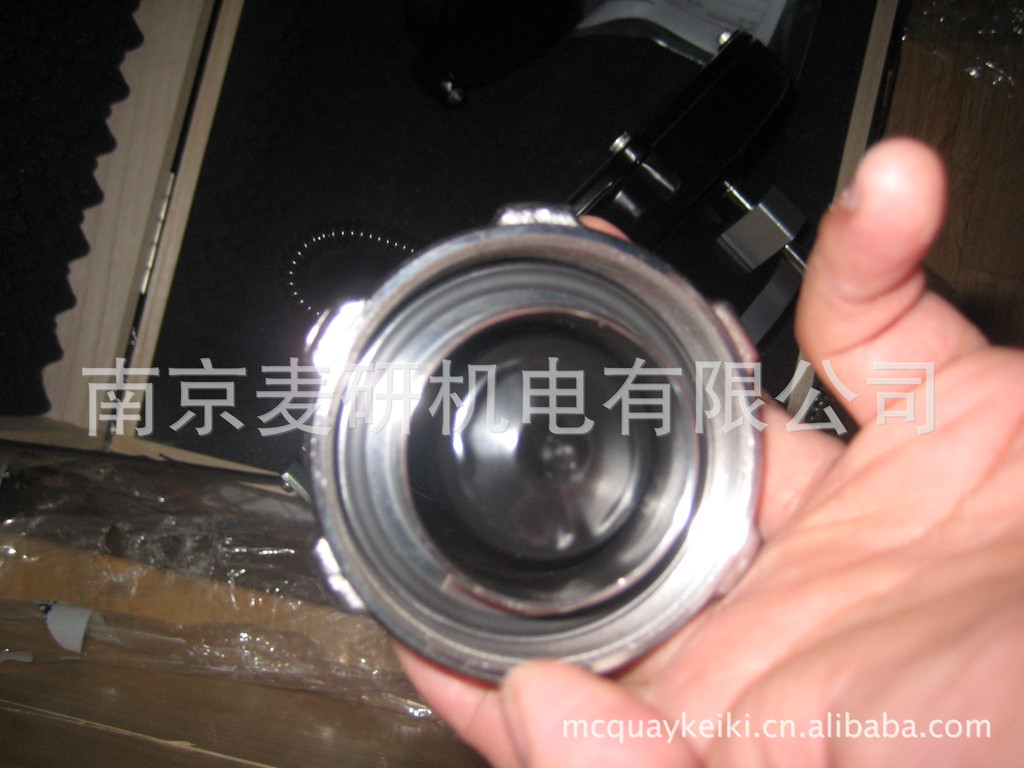

Valve top coupling開閉閥頂部連接

(Top mounting of model型號: TVC-02 )

PF 2-1/4” TAP

Weight重量7.4kg / 15M

Overall dimensions外型尺寸

(height×width×thickness)高×長×寬

APP. 585×346×150 mm

Battery電池9 Volt(MODEL : MN1604)

Intrinsically safe type防爆等級Ex ia IIB T4

1-3 Materials材料

MODEL型號: T2000-TFC-02 ( Body ) ------------------- : Aluminum
casting鑄鋁( JIS – AC4C-T6 )

1-4 Coating塗層

IN / OUT SIDE進出端-----------------------------------------
: Epoxy nylon coating環氧尼龍塗層

COLOR顏色---------------------------------------------- : Black黑色

THICKNESS厚度( IN/OUT SIDE進出端) ------------------- : 80mic.
