Matsutec

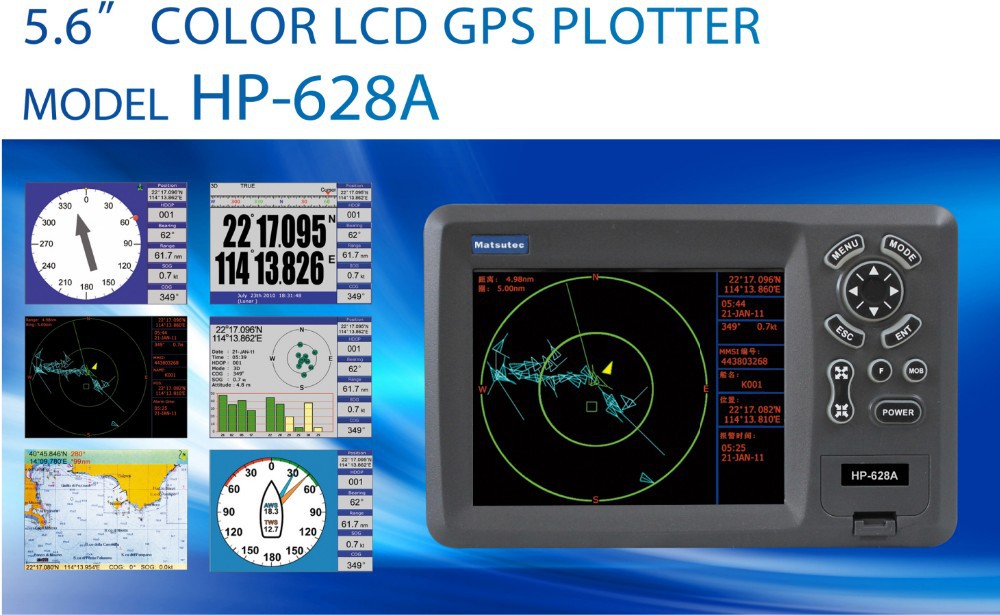

5.6" Color LCD Marine GPS/AIS chart plotter
Model: HP-628A

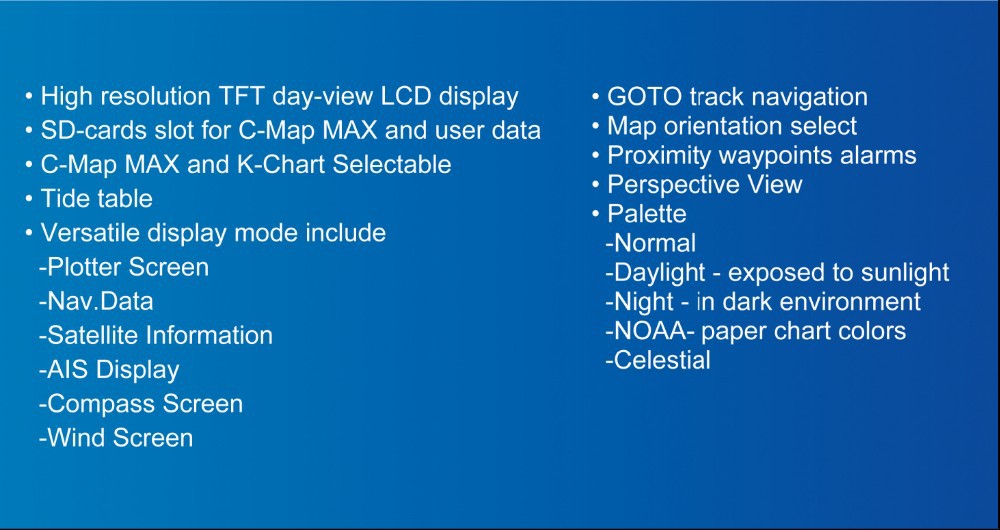

FEATURE:
1. High resolution TFT day-view LCD display
2. SD-cards slot for C-map Max and user data
3. C-map Max and K-chart Selectable
4. Tide table
5. Versatile display modes including:
- Plotter Screen
- Nav Data
- Satellite Information
- AIS Display
- Compass Screen
6. GOTO Track Navigation
7. Map Orientation Select
8. Proximity waypoint alarms
9. Perspective View
10. Palette
- Normal
- Daylight - Exposed to Sunlight
- Night - In Dark Environment
- NOAA - Paper Chart Colors
- Celestial

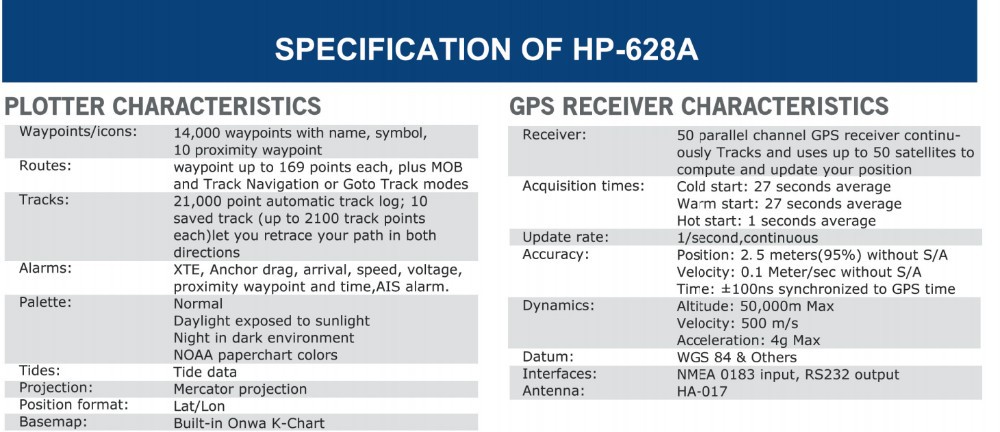

SPECIFICATIONS
Plotter Characteristics
1. Waypoints/Icons: 14,000 waypoints with name, symbol, 10 proximity waypoint.
2. Route Memory: waypoint up to 169 points each, plus MOB and Track Navigator or Goto track modes
3. Tracks: 21,000 point automatic track log; 10 saved track (up to 2100 track points each) let you retrace your path in both derections
4. Alarm: XTE, Anchor Drag, Arrival, Speed, Voltage, Proximity, Waypoint and Time, AIS alarm.
5. PALLETE
- Normal
- Daylight: Exposed to sunlight
- Night: In dark environment
- NOAA: Paper chart color
6. Tides: Tide Data
7. Projection: Mercator projection
8. Position format: Lat/Lon
9. base Map: Built-in onWA K-Chart
10. External Map: SD cards slot for user settings
11. User data storage: Internal backup of user settings, or external SD-card
12. Plot Interval: 1s to 99h or 0.01nm to 9.99nm
13. 0.01nm to 1,000nm
14. Nav Data Input/Output:
- Input:
$--DBT, $--DPT, $--GGA, $--GLL, $--MTW, $--RMA, $--RMB, $--RMC, $--VHW, $--VTG, $--ZDA
- Output:
$--AAM, $--APB, $--BOD, $--BWC, $--GGA, $--GLL, $--RMB, $--RMC, $--VTG, $--XTE, $--ZDA, $--WPL, $--HDG
- Output for autopilot:
$--AAM, $--APB, $--BOD, $--VTG
15. PERSPECTIVE VIEW: On/off
GPS Receiver Characteristics
1. Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and updat your position
2. Acquisition: Cold start: 27 seconds average
Warm start: 27 seconds average
Hot start: 1 seconds average
3. updat rate: 1/second, continuous
4. Accuracy: Position: <2.5 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A
Time: ±100ns synchronized to GPS time
5. Dynamics: Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max
6. Datum: WGS 84 & Others
7. Interface: NMEA 0183 Input , RS232 output
8. Antenna: HA-017

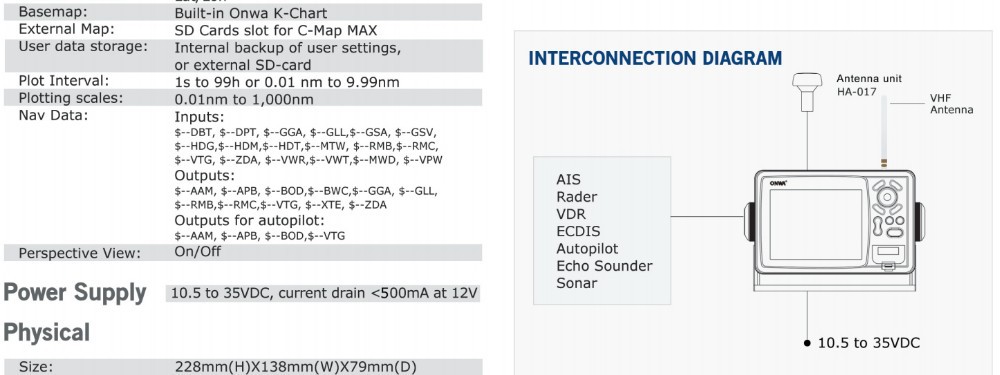

AIS Interface
Data input: NMEA 0183, RS232
Baud rate: 38400
Power Supply: 10.5 to 35VDC, current drain < 500mA at 12V

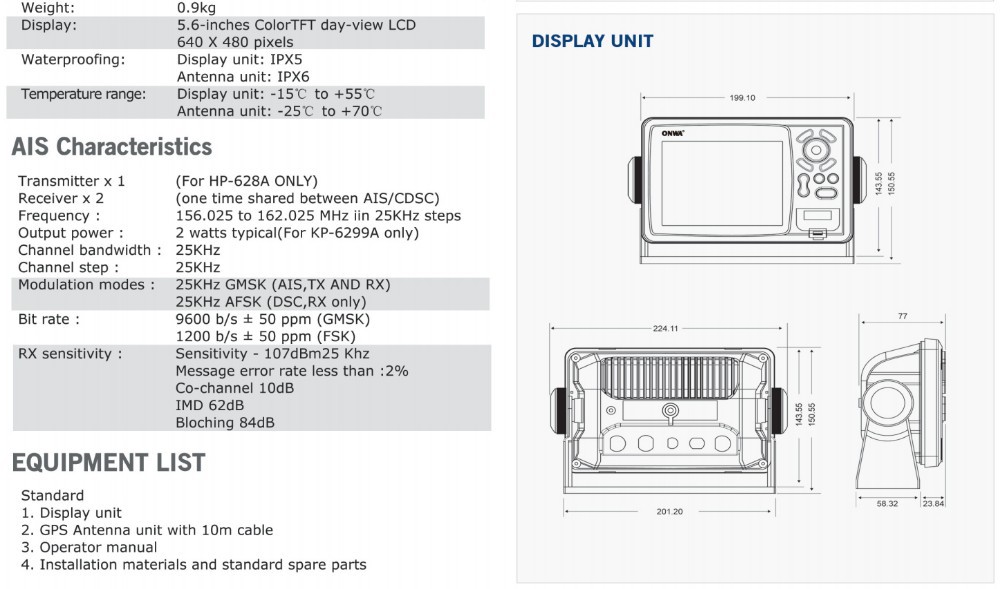

Physical
1. Size: 228mm(H) × 138mm(W) × 79mm(D)
2. Weight: 0.9kg
3. Display: 5.6-inches color TFT day-view LCD, 640 x 480 pixels
4. Waterproofing: Display unit: IPX5; Antenna unit: IPX6
5. Temperature: -15°C to + 55°C (Display unit); -25°C to + 70°C (GPS antenna)
AIS Characteristics
Transmitter x 1 ( For KP-628A only )
Receiver x 2 (one time shared between AIS/CDSC)
Frequency : 156.025 to 162.025 MHz in 25KHz steps
Output power : 2 Watts typical (For HP-628A only)
Channel bandwidth : 25KHz
Channel step: 25KHz
Modulation modes : 25KHz GMSK (AIS, TX AND RX)
25Hz AFSK (DSC, RX, only)
8. Bit rate: 9600 b/s ± 50 ppm (GMSK)
1200 b/s ± 50 ppm (FSK)
9. RX sensitivity : Sensitivity - 107dBm 25Khz
Message error rate less than 2%
Co-channel 10dB
IMD 62dB
Bloching 84dB
Equipment List (Standard)
- Display unit
- Antenna unit with 10m cable
- Operator manual
- Installation materials and Standard spare parts
