南科光電是廣州南科集成電子有限公司旗下專門從事半導體照明研發、製造、銷售和服務的專業部門。自2005年以來，南科光電在LED照明領域潛心研究,並開發出LED路燈、工礦燈、筒燈、射燈、隧道燈、臺燈、燈泡等數十種產品及多項世界首創技術和數十項專利技術，主要表現在以下幾個方麵：
一.全球首創使用高光效小尺寸LED芯片，應用超大規模集成電路封裝技術實現高電壓集成光源，降低瞭單位光效成本，降低瞭單位麵積的發熱量，可直接使用市電。
二.全球首創高壓N-MOS耗盡管,CCS-L恒流源器件及可提供低功耗，恒壓恒流的驅動電路,使每一路LED光源都得到雙重保護,延緩LED光源的老化。
三.全球首創針狀散熱器的散熱效率要比傳統片狀散熱器有較大幅度提高,能使LED結溫比普通散熱器低15℃以上，並且防水性能比鋁型材散熱器的防水性能要好。
四.本公司配光采用定向照明技術，可使路燈燈具的利用系數達到75%以上。

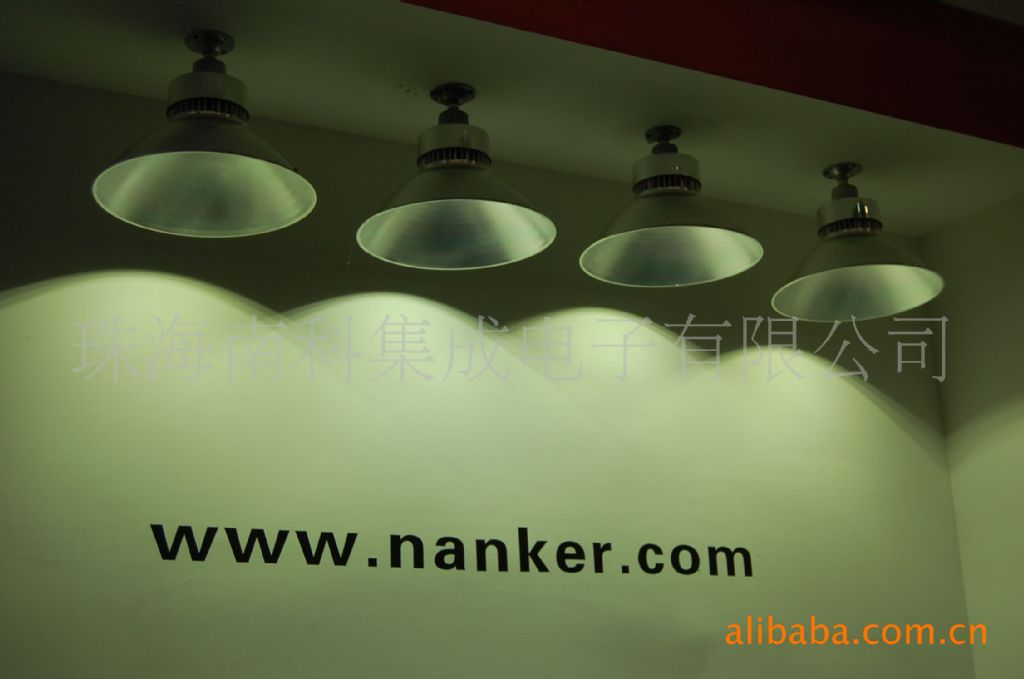

| 產品名稱Name | LED 工礦燈high bay Lights | LED 工礦燈high bay Lights | LED 工礦燈high bay Lights | LED 工礦燈high bay Lights | LED 防塵工礦燈Dust proof high bay lights | LED PC罩工礦燈 high bay lights with PC reflector | LED PC罩工礦燈 high bay lights with PC reflector |
| 產品型號Part Number | NKU-64/4-060/2-FA | NKU-64/4-080/2-FA | NKU-20/25-120/4-FB | NKU-20/25-160/4-FB | NKU-20/12-060/2-FC | NKU-20/25-120/4-FD | NKU-20/25-160/4-FD |
| 輸入功率Input Power | 60W | 80W | 120W | 160W | 60W | 120W | 160W |
| 光源光通量Luminous Flux | 4800 lm | 6400 lm | 9600 lm | 12800 lm | 4800 lm | 9600 lm | 12800 lm |
| 燈具光效Luminous Efficiency | 55 lm/w | 55 lm/w | 55 lm/w | 55 lm/w | 55 lm/w | 55 lm/w | 55 lm/w |
| 輸入電壓Voltage | 90VAC~277VAC(交流) | 90VAC~277VAC(交流) | 90VAC~277VAC(交流) | 90VAC~277VAC(交流) | 90VAC~277VAC(交流) | 90VAC~277VAC(交流) | 90VAC~277VAC(交流) |
| 工作電流Current | 150mA | 200mA | 300mA | 400mA | 150mA | 300mA | 400mA |
| 工作頻率Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| 功率因數AC Power Factor | 98% | 98% | 98% | 98% | 98% | 98% | 98% |
| 有效功率DC Power Efficiency | 94% | 94% | 94% | 94% | 94% | 94% | 94% |
| 發光角度Beam Angle | 71°(50%) | 71°(50%) | 71°(50%) | 71°(50%) | 73°(50%) | 71°(50%) | 71°(50%) |
| 色溫Color Temperature | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K |
| 顯色指數Color Rendering Index | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 |
| 光源壽命Light Source Life | 50000h | 50000h | 50000h | 50000h | 50000h | 50000h | 50000h |
| 環境溫度Working Temperature | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ |
| 相對濕度Working Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| 材料Housing ＆Lampshade | 鋁合金aluminium alloy | 鋁合金aluminium alloy | 鋁合金aluminium alloy | 鋁合金aluminium alloy | 鋁合金aluminium alloy | 鋁合金aluminium alloy+PC | 鋁合金aluminium alloy+PC |
| 防護等級IP Rating | IP20 | IP20 | IP20 | IP20 | Ip64 | IP20 | IP20 |
| 燈具顏色Color | 銀灰silver gray | 銀灰silver gray | 銀灰silver gray | 銀灰silver gray | 銀灰silver gray | 銀灰silver gray | 銀灰silver gray |
| 外形尺寸Size | Φ380359(mm)(掛鉤Hook) | Φ380359(mm)(掛鉤Hook) | Φ500442(mm)(掛鉤Hook) | Φ500442(mm)(掛鉤Hook) | Φ358X360(mm)(掛鉤Hook) Φ358X310(mm)(吊盤Sucker) | Φ500611(mm)(掛鉤Hook) | Φ500611(mm)(掛鉤Hook) |
| Φ380315(mm)(吊盤Sucker) | Φ380315(mm)(吊盤Sucker) | Φ500400(mm)(吊盤Sucker) | Φ500400(mm)(吊盤Sucker) | Φ500561(mm)(吊盤Sucker) | Φ500561(mm)(吊盤Sucker) | ||
| 包裝尺寸Package Dimension | 430430X330(mm) | 430430X330(mm) | 560560X420(mm) | 560560X420(mm) | 395X395X335(mm) | 560560X585(mm) | 560560X585(mm) |
| 安裝方式Installation | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick | 掛鉤吊裝Hook with a stick/吊盤吊裝Sucker with a stick |
| 毛重G.W/凈重N.W | 3kg/1.1kg | 3kg/1.1kg | 5.0kg/2.5kg | 5.0kg/2.5kg | 13.12kg(4pcs)/2.88kg | 7.6kg/3.2kg | 7.6kg/3.2kg |
