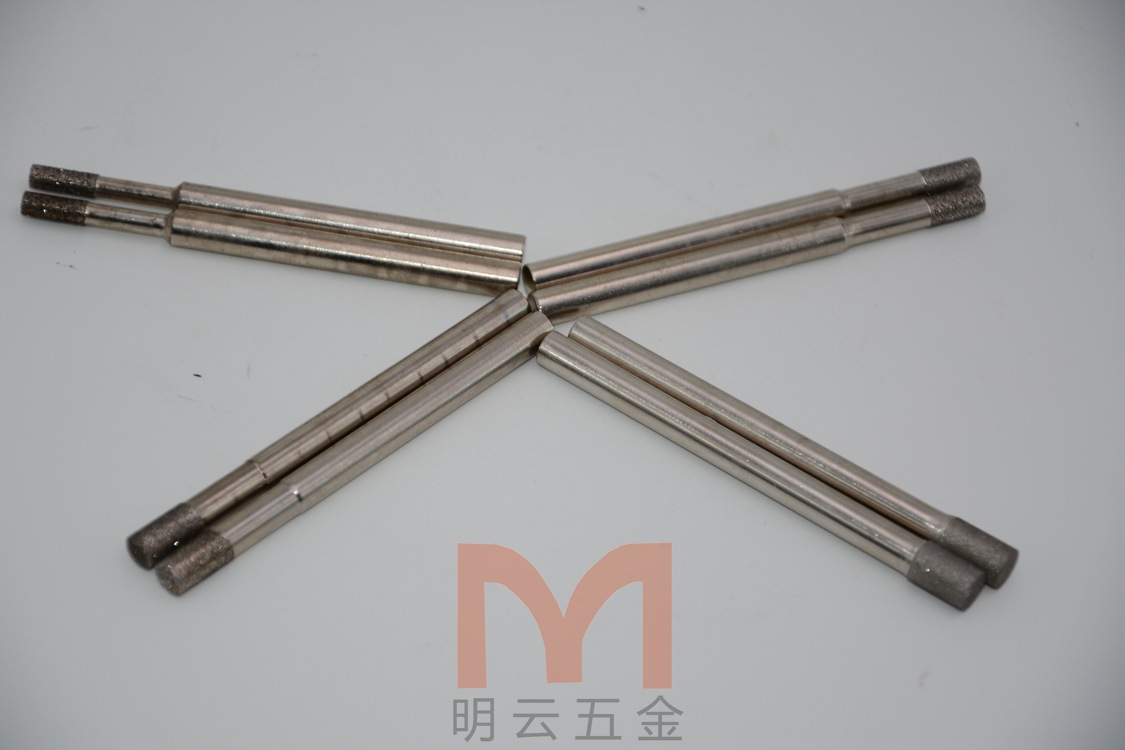

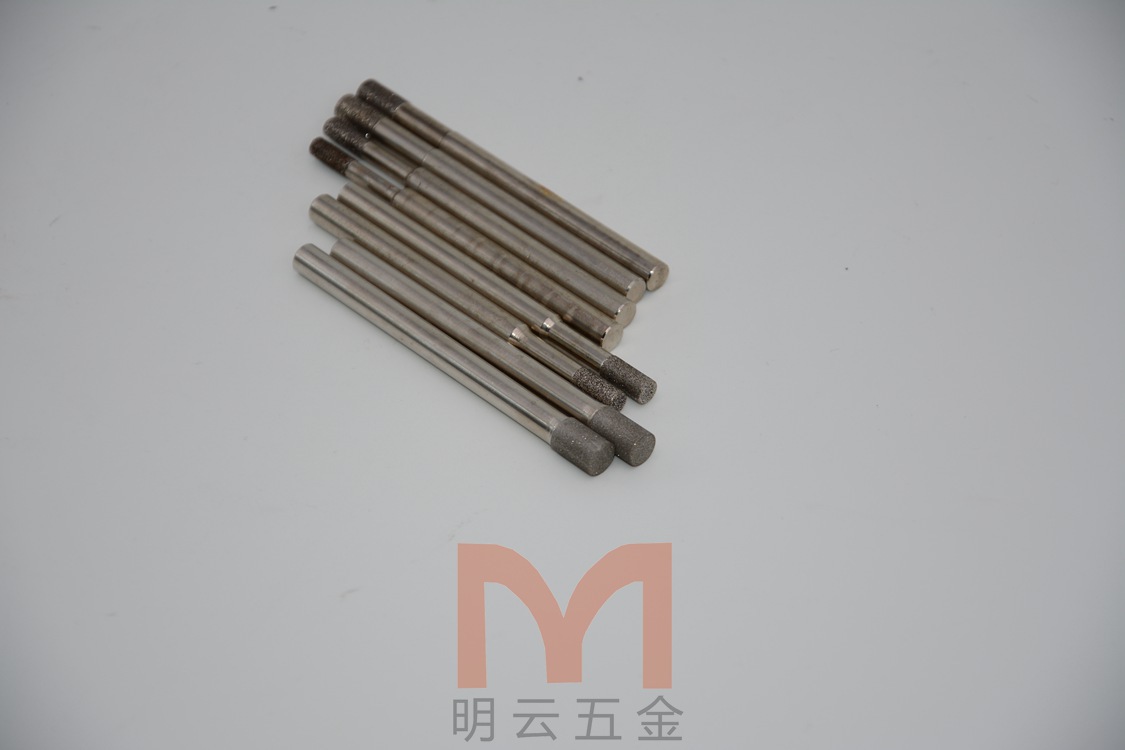

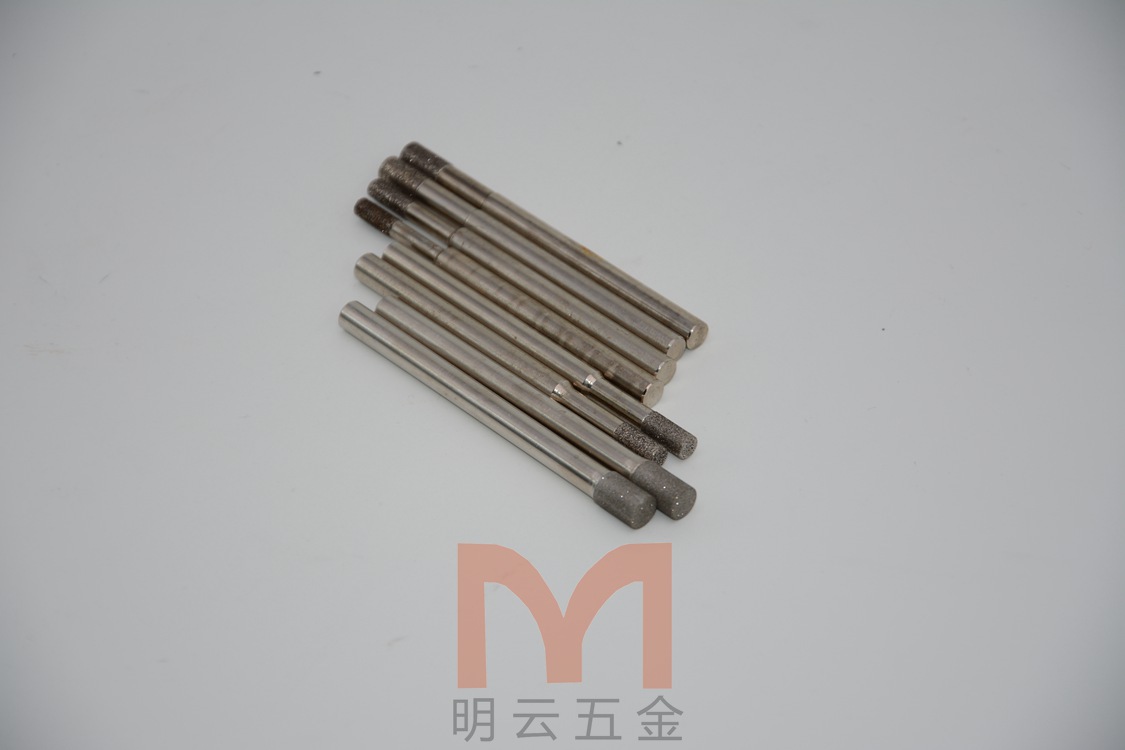

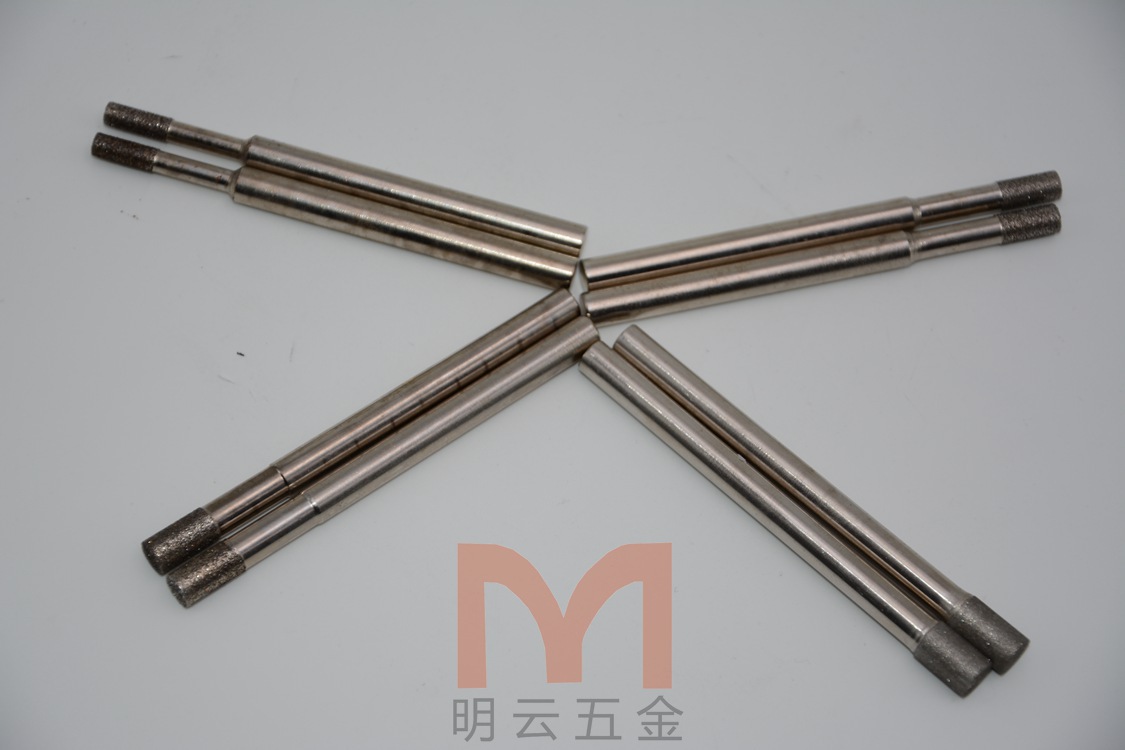

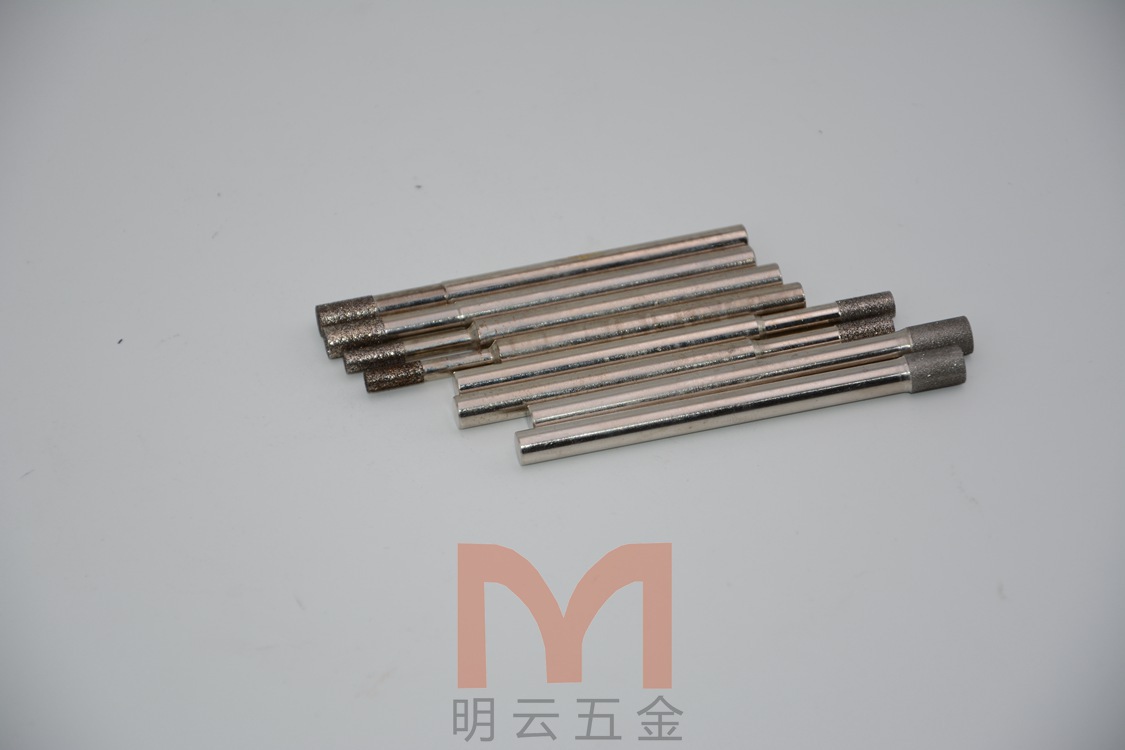

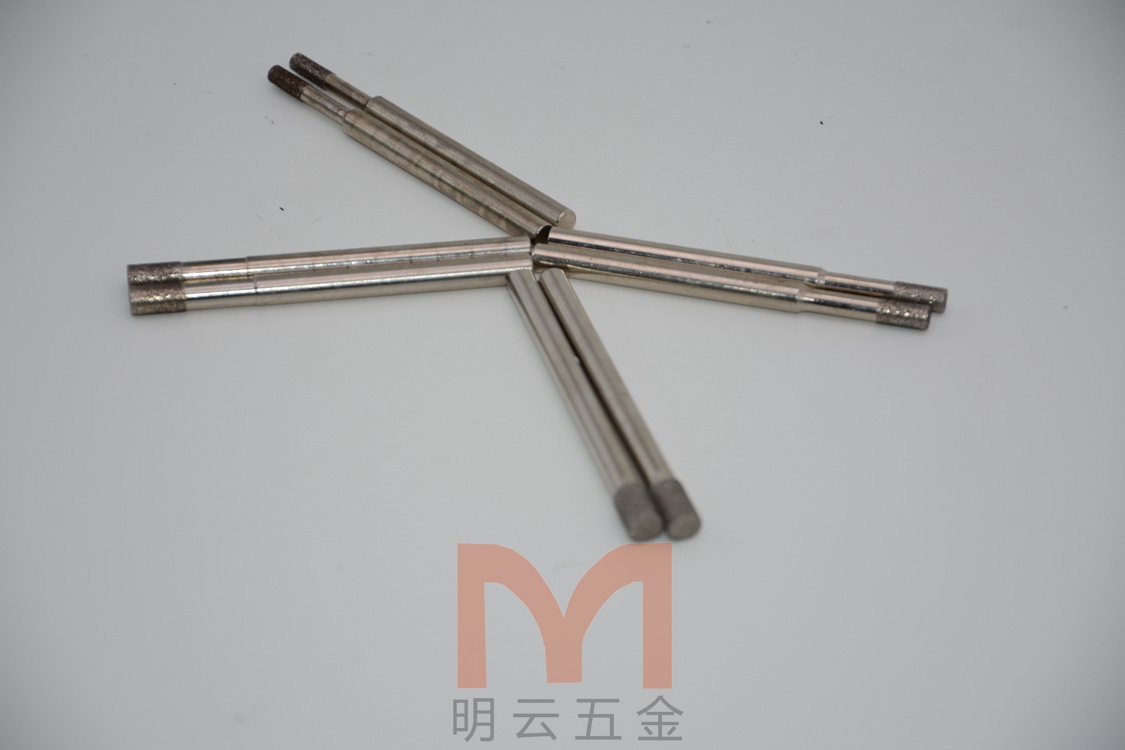

鉆石/氮化硼內研磨帶柄砂輪
配合內孔研磨機使用,可用於內徑研磨，如陶瓷、藍寶石、玻璃及超硬合金之孔徑精細研磨，氮化硼（CBN）精密研磨棒，則用於高硬度之碳鋼及鉻合金鋼精細研磨。可使架後的內孔,更高業度。采用合金軸徑，因此剛性特強，高精度加工機最為合用。
主要用途：鉆石內孔研磨砂輪，超硬合金之研削加工氮化硼內孔研磨砂輪，各種工具鋼，合金鋼（HRC50-70）硬度之研削加工，粒度根據客戶要求，訂貨時請註明SDC或CBN。
編號/Orderno. | ￠D | T | N | L | ￠B | 粒度 | |
鉆石/Diamond | 氮化硼/CBN | ||||||
YD-3004 | YB-3004 | 0.4 | 2 | 5 | 45 | 3.0 | #400 |
YD-3005 | YB-3005 | 0.5 | 2 | 5 | 45 | 3.0 | #400 |
YD-3006 | YB-3006 | 0.6 | 3 | 5 | 45 | 3.0 | #200 |
YD-3007 | YB-3007 | 0.7 | 3 | 8 | 45 | 3.0 | #200 |
YD-3008 | YB-3008 | 0.8 | 3 | 8 | 45 | 3.0 | #200 |
YD-3009 | YB-3009 | 0.9 | 4 | 8 | 45 | 3.0 | #200 |
YD-3010 | YB-3010 | 1.0 | 5 | 8 | 45 | 3.0 | #200 |
YD-3015 | YB-3015 | 1.5 | 5 | 8 | 45 | 3.0 | #150 |
YD-3020 | YB-3020 | 2.0 | 5 | 12 | 45 | 3.0 | #150 |
YD-3025 | YB-3025 | 2.5 | 5 | 15 | 45 | 3.0 | #150 |
YD-3030 | YB-3030 | 3.0 | 5 | 15 | 45 | 3.0 | #150 |
YD-3040 | YB-3040 | 4.0 | 5 | - | 50 | 3.0 | #150 |
YD-3050 | YB-3050 | 5.0 | 8 | - | 50 | 3.0 | #150 |
YD-3060 | YB-3060 | 6.0 | 8 | - | 50 | 3.0 | #150 |
YD-6040 | YB-6040 | 4.0 | 10 | 22 | 80 | 6.0 | #100 |
YD-6050 | YB-6050 | 5.0 | 10 | 22 | 80 | 6.0 | #100 |
YD-6060 | YB-6060 | 6.0 | 10 | 22 | 80 | 6.0 | #100 |
YD-6070 | YB-6070 | 7.0 | 10 | - | 80 | 6.0 | #100 |
YD-6080 | YB-6080 | 8.0 | 10 | - | 80 | 6.0 | #100 |
YD-6090 | YB-6090 | 9.0 | 10 | - | 80 | 6.0 | #100 |
YD-6100 | YB-6100 | 10 | 10 | - | 80 | 6.0 | #100 |
YD-6120 | YB-6120 | 12 | 10 | - | 80 | 6.0 | #100 |
YD-6140 | YB-6140 | 14 | 10 | - | 80 | 6.0 | #100 |
YD-6160 | YB-6160 | 16 | 10 | - | 80 | 6.0 | #100 |
YD-6180 | YB-6180 | 18 | 10 | - | 80 | 6.0 | #100 |
YD-6200 | YB-6200 | 20 | 10 | - | 80 | 6.0 | #100 |
