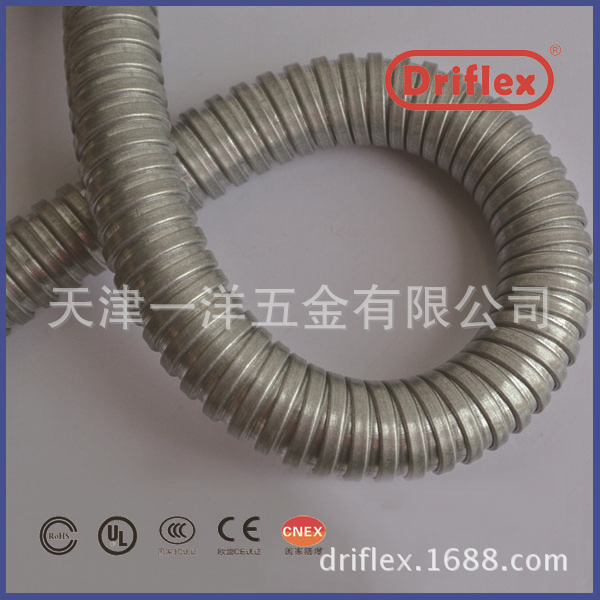

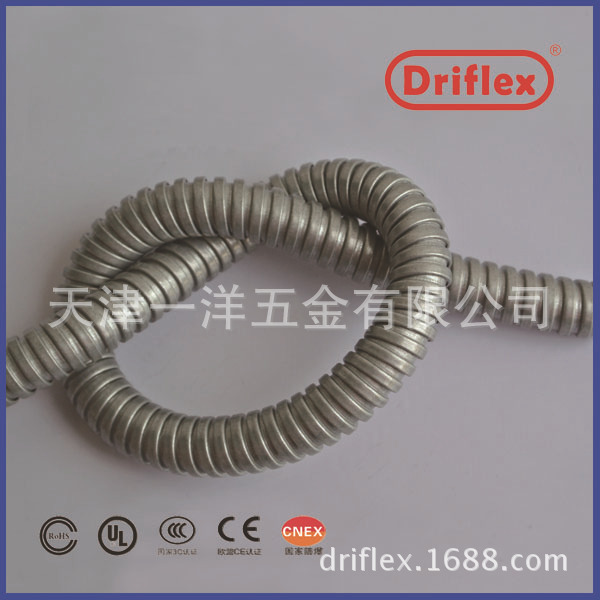

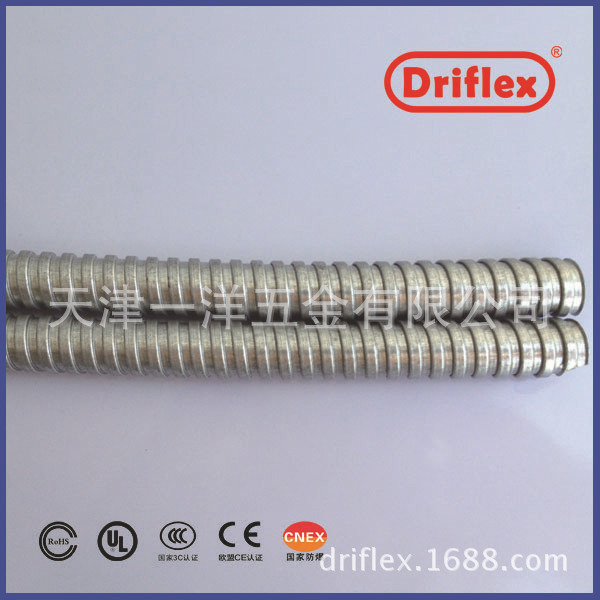

Model: FM-12UL
Description:
鍍鋅鐵皮製成.
高強度及彎曲性.
遵照國際電工法規350及美國UL標準製作.
耐溫范圍：-50oC to +300oC.
Part NoNominal Size ISO (mm)Nominal Size US (inches)I.D. (mm)O.D. (mm)Min. Bend Radius (mm)Length (M/coil)
| FM-10UL | 16 | 3/8" | 9.52- 9.96 | 14.22- 15.49 | 51 | 50 |
| FM-11UL | 20 | 1/2" | 15.88- 16.38 | 21.84 - 23.37 | 76 | 50 |
| FM-12UL | 25 | 3/4" | 20.62-21.21 | 26.54 - 28.07 | 102 | 50 |
| FM-13UL | 32 | 1" | 25.40 - 26.42 | 30.02 - 35.05 | 127 | 50 |
| FM-14UL | 40 | 1-1/4" | 31.75- 33.02 | 39.37 - 41.40 | 159 | 30 |
| FM-15UL | 50 | 1-1/2" | 38.10 - 40.01 | 46.99- 49.53 | 190 | 30 |
| FM-16UL | 63 | 2" | 50.80 - 52.83 | 59.69 - 62.23 | 254 | 20 |
| FM-17UL | 75 | 2-1/2" | 63.54 | 72.64 - 77.72 | 318 | 15 |
| FM-18UL | 90 | 3" | 76.20 | 85.34- 90.42 | 381 | 15 |
| FM-19UL | 100 | 4" | 101.60 | 110.74 - 115.82 | 508 | 10 |
