<齊盛激光功能特點：
Features:
- 光、機、電、一體化設計，性能更穩定。
Integration of photographic, mechanic and electric technologies, giving more stable performance.
Great processing precision, maximum tolerance at 0.05mm.
- 極高的雕刻速度1000/s。
Extremely high engraving speed, 1000/s.
- 業內領先的連續、快速曲線切割功能：普通機型60/s，先進機型300/s。
The leading technology of uninterrupted and fast curve cutting: with standard model at 60/s and advanced model at 300/s.
- 最短加工路徑優化功能，大大提高工作效率。
Optimized function of selecting shortest path, greatly improving working efficiency.
- 用戶可選的激光管專用冷水機，大大提高激光管的工作壽命和雕刻效果。
Customer optional cooling water machine for laser tube, greatly prolonging the working life of the tube and bettering engraving effect.
imported big-diameter galvanized silicon reflection mirror of 10.6um length wave and ZnSe focus lens provide slighter light wane and finer focus.
- 與AutoCAD, CorelDRAW,文泰等各種圖形處理軟件無縫對接，直接原圖輸出。
Seamlessly compatible to such image processing softwares as AutoCAD, CorelDRAW, and,Wenti, giving output of original photos.
- 直接支持AutoCAD任意手繪曲線。
Support hand any drawn curves of AutoCAD.
- 支持多種格式的文件，圖形格式有BMP、PLT、DXF、GIF、AI等
Support files of various formats such as BMP, PLT, DXF, GIF and AI for image processing.
- 先進的顏色管理，支持任意多種顏色，隨意定義雕刻次序，全部或部分一次性輸出。
Advanced color management, supporting the combination of any colors, engraving in freely defined sequence, partial or total output in one time.
- 完美的坡度雕刻、灰度圖雕刻。
Perfect grade and grayness engraving.

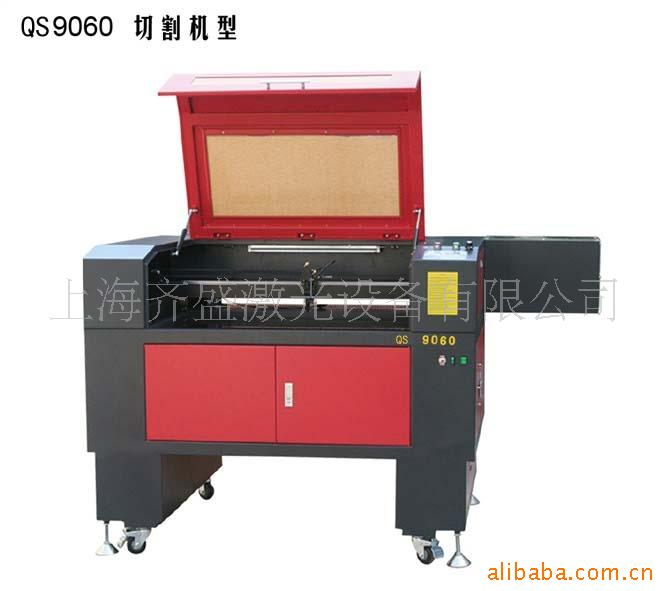

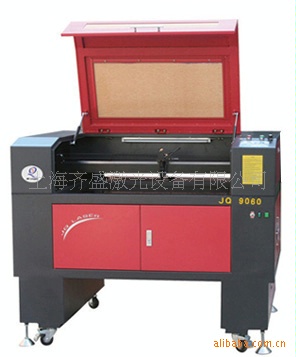

QS-B9060技術參數
機型Model |
| QS-B9060fashinon model |
激光類型Laser-type | CO2激光管CO2 laser tube | |
激光功率Lader-power |
| 80w/100w |
雕刻麵積Engraving area |
| 880*600mm |
切割麵積]Cutting area |
| 900*600mm |
雕刻速度Engraving speed | 0-1000mm/s | |
切割速度Cutting speed | 0-400mm/s | |
重復定位精度Repeating location | ≤±0.01 | |
支持圖文格式Graphic format supported | BMP, HPGL(PLT), JPEG, DST, DXF,AI | |
運行系統Moving system | DSP專業控製,微步恒流細分 Professional controlling, micro elegancy | |
通訊介面Communication connection | PCI.通訊介面，聯機 | |
工作電壓Working voltage | 220V±10% 50HZ | |
切割平臺Cutting platform | 選配多種雕刻工作平臺（選配） Equipped with a variety of engraving working tables (Match) | |
輔助裝置Auxiliary equipments | 冷卻系統,排風系統Cooling system, ventilation system | |
控製軟件Controlling software | 齊盛激光專用軟件The special software for Qisheng Laser配有中英文界麵Has the Chinese and English contact surface | |
外形尺寸Machine dimension |
| 1550*1050*1250 |
