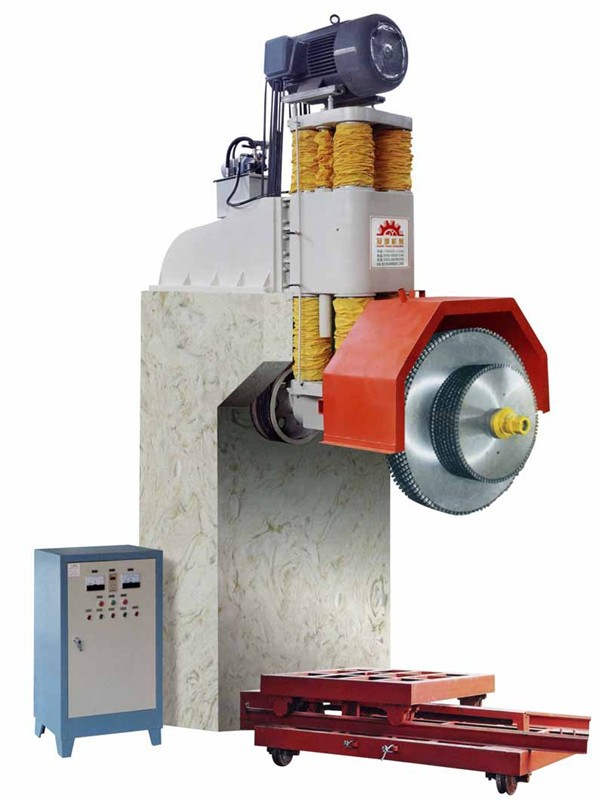

本機是在組合鋸的基礎上通過優化改良而成,機臺上采用四立柱式液壓鎖緊結構,整體剛性好、間隙小,有效降低切割過程產生的晃動,所生產的板材精度高,平整度好。同時在提高刀頭的使用壽命和降低耗電量方麵都有顯著成效。立柱采用獨特組合式雙密封裝置,大大降低粉塵對機械液壓元件的磨損,有效延長機器的使用年限。獨特的潤滑系統,有效減少機器保養次數,降低元件的磨損,是一款綜合效益都有明顯提高的石材切割機。
This machine is incombination sawbased on theoptimization of modified form,the machineadopts fourcolumnhydrauliclocking structure,good integral rigidity,small space,effectively reduce thecuttingprocess ofthe sloshing,the production ofplatewith high precision,good flatness.At the same timein improvingthe service life of the cutter headand lowerpower consumptionareobvious effect.The column uses theunique combination ofdouble sealingdevice,greatly reducingdust onhydraulic componentwear,prolongtheservice life ofthe machine.The unique lubrication system,effectively reducethe machinemaintenance times,reducecomponentabrasion,is acomprehensive benefitsare improvedstone cuttingmachine.
型號 Model
| 單位 Company
| D8 | D12 | D14 | D18 | D22 |
鋸片直徑 Saw blade diameter
| mm | 1650/2200 | 1650/2200 | 1650/2200 | 1650/2200 | 1650/2200 |
鋸片數量 Saw the number
| P | 8(1650mm*4 +980mm*4) | 12 | 14 | 18 | 22 |
升降行程 The lifting stroke
| mm | 1000/1300 | 1000/1300 | 1000/1300 | 1000/1300 | 1000/1300 |
最大加工尺寸 Max processing size
| mm | 3500*1450 *9000(1100) | 3500*1500 *900(1100) | 3500*1550 *900(1100) | 3500*1600 *900(1100) | 3500*1650 *900(1100) |
主電機功率 Power of main motor
| kw | 37/45 | 45/55 | 55/65 | 65/75 | 75/90 |
耗水量 Water consumption
| m³/h | 16 | 20 | 26 | 34 | 40 |
重量 Weight
| T | 7.5 | 8 | 8.5 | 9 | 11.5 |
Chinastonemachinery brands-Fujiandragon machinery.Contact 13799604717,QQ774797083
Key words:Stone machineryhydrauliccombination saw
