日本TECLOCK百分表，TECLOCK千分表，TECLOCK杠桿表現貨供應：

TECLCOK千分表型號有：TM-1201，TM-1251，TM-1202，TM-1205，TM-1201PW

TECLCOK百分表型號有：TM-110，TM-110R，TM-110D，TM-110G，TM-110P，TM-105，TM-5106，TM-35，TM35-01，TM35-03，TM35-04，TM-34，TM-36，TM-37，TM-37C，KM-121，KM-121D，KM-131，KM-132D，KM-130D，KM-130D，KM-55，TK-155，KM-05100，TM-1200，TM-1210，TM-1211，TM-102，TM-98，TM-91，TM-92，TM-93，ST-305A，ST-305B，TM-1201，TM-1202，TM-1205

TECLCOK杠桿表型號有：LT-310，LT-311，LT-314，LT-315，LT-316，LT-370，LT-315PS，LT-352，LT-353，LT-354，LT-355，LT-358，LT-310，LT-311，LT-314，LT-315，LT-316，LT-370




						Standard gauge of scale interval 0.001mm and outer frame diameter 56mm Protection and durability of mechanism parts like gear are pursued by impact release mechanism( shock proof ). Jewel axis is applied to improve durability. Stable repeated precision is realized by applying level enlargement mechanism. Limiter is equipped as standard for all models. it is convenient to set up tolerance range. Lift lever can be adopted.

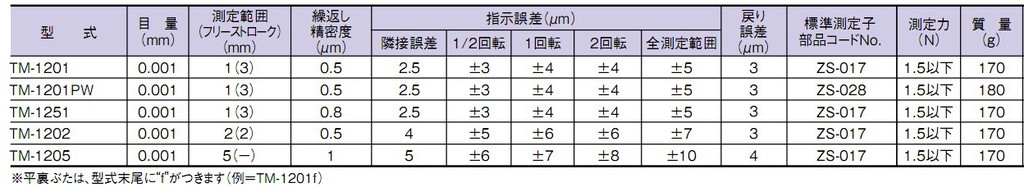

				TM1201




	This is the most standard dial gauge of which scale interval is 0.01mm. A model can be seleced according to usage among stainless stem, central 2 hands , oil ejecting function and night line function. This is standard series for high durability and high accuracy made by pursuing parts precision. Shock proof function is adopted to all models.
		■0.05mm scale mark dial indicator

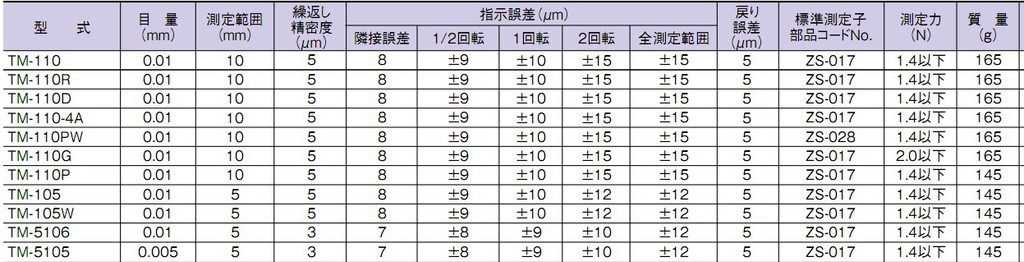

TM-110		■0.05mm scale mark dial indicator




						As outer frame diameter is small ( minimum diameter : 36mm),this is suitable for production line with narrow set up space and to measure many points with machines put in. Lift lever can be adopted ( excluding TM-34) Line up of measuring range 3.5mm, 4mm, 5mm and 10mm although this is small.

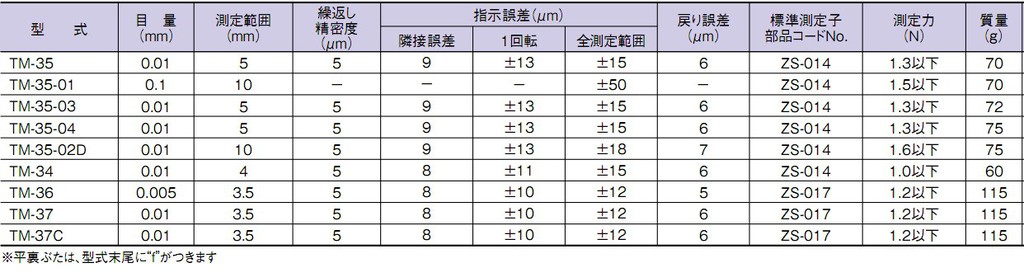

				TM-35




						Long stroke dial gauge of measuring range 20mm, 30mm. Shock proof mechanism is adopted to all models. Lift lever can be also adopted. (excluding KM-121PW)

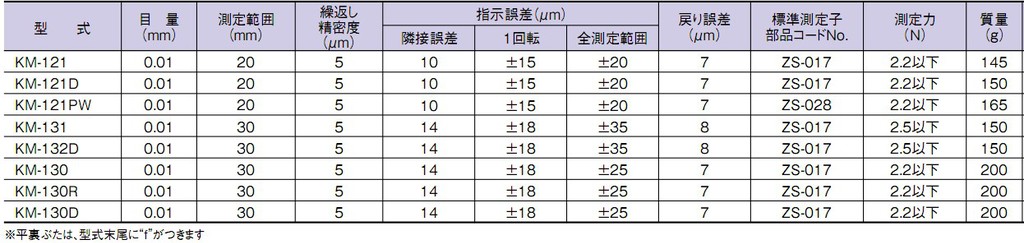

					KM-121




		Long stroke dial gauge of which scale mark plate is large as 50mm, 100mm and 150mm. Measuring up to 150mm stroke is realized with precision parts of high durability and TECLOCK original enlargement mechanism.

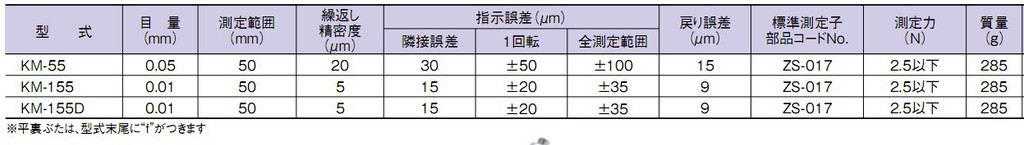

KM-55	KM-05150




						This is less than 1 revolution dial gauge and effective for comparative measurement with scale interval 0.001mm, and 0.01mm. High durability is materialized by adopting TECLOCK original enlargement mechanism. Measuring range is subdivided for 0.08mm, 0.16mm,0.2mm and 1.0mm.
				TM-1200




							This is the dial gauge of scale interval 0.1mm. There are 3 types such as 10mm, 20mm and 30mm complying with measurement range. This is used to measure approximate dimension for wooden work and leather products or to judge deviance dimension.

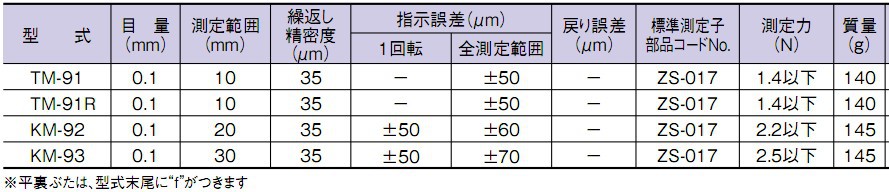

					TM-91




		This differs from general dial gauges and its scale plate is set parallel against measured face . This is convenient to make smooth surface horizontal and read from front face of measured point.

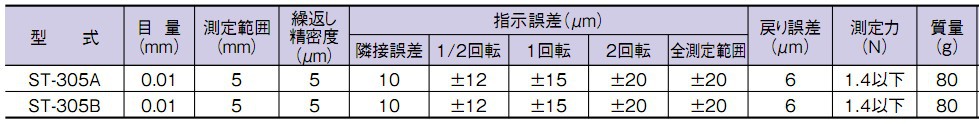

ST-305A
	Displacement volume of measured face can be read from the top.
