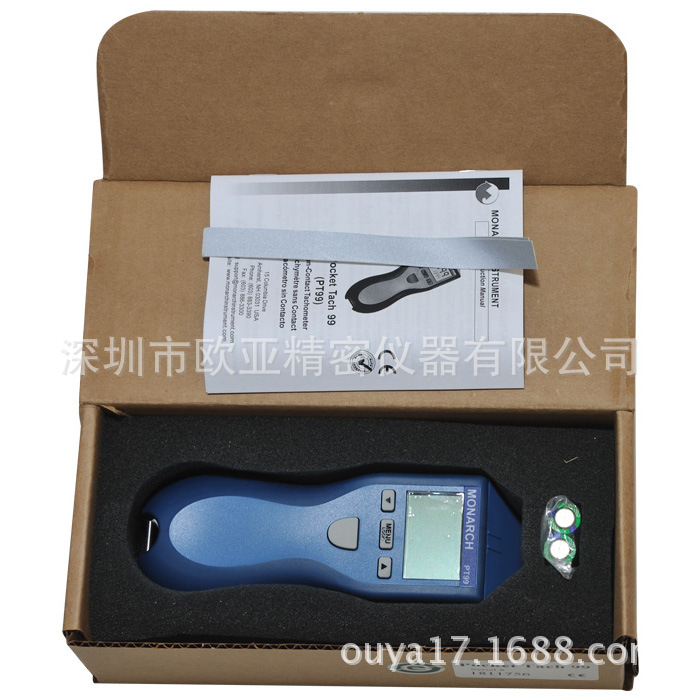

PT99和PLT200是手持式、高精度的光電轉速表。通過貼在被測物體上的反光條來測量物體轉速。其中PT99為非接觸測量,紅色可見光瞄準,與被測物體的最大距離1m;PLT200型轉速表為激光瞄準,最遠測量距離可達7.8m。另外,PLT200為接觸非接觸兩用,即可通過反光條來非接觸測量,也可通過接觸輪接觸測量線速度(如皮帶)。PLT200帶有輸入和輸出接口,可輸出TTL信號。
PLT200手持式高精度轉速表技術參數:
|

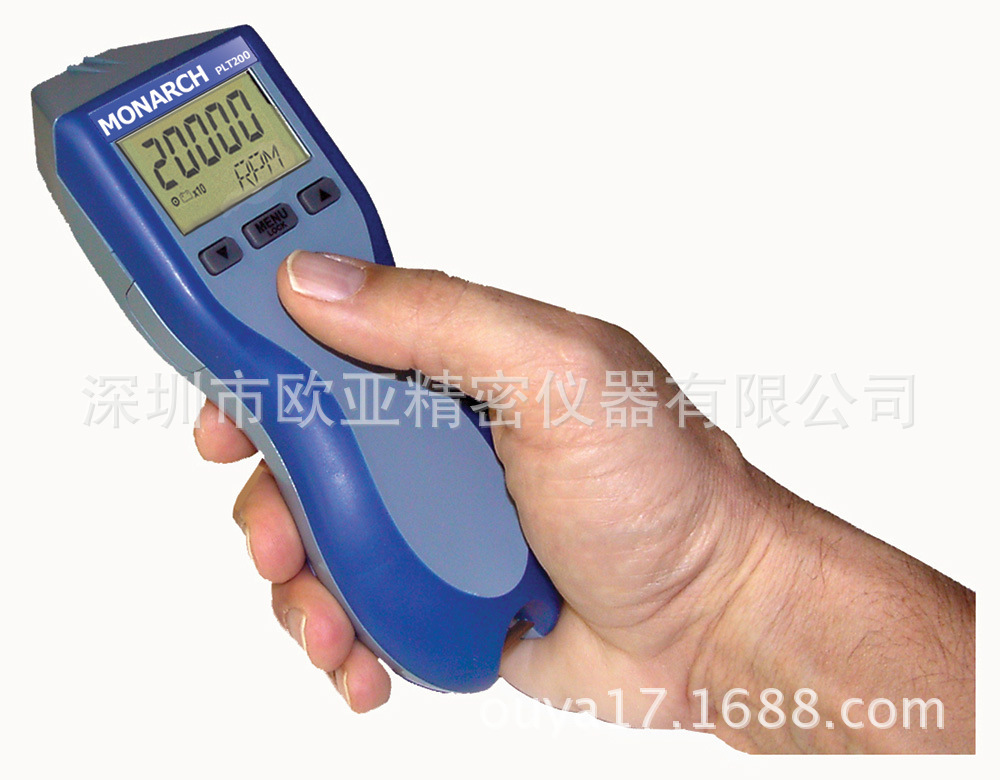

Pocket Laser Tach 200 (PLT200)
PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single hand operation.
Multi-Function

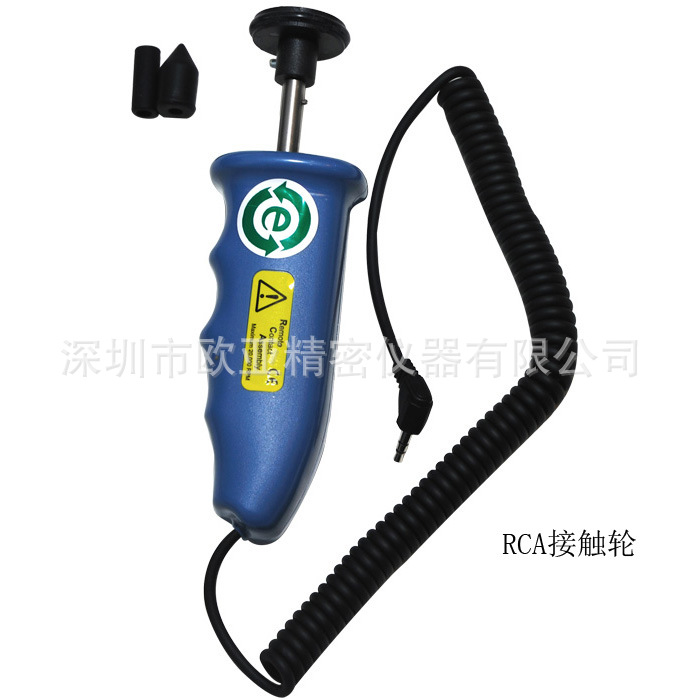

PLT200 is a 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch), which is programmable in both English and Metric linear rates. Support is built-in for both our optional Remote Contact Assembly (RCA) and our Remote Sensors. PLT200 has a TTL compatible Pulse Output to trigger devices like data collectors or stroboscopes. The KIT is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel and a 5 foot roll of reflective tape all in a latching carrying case.
* performance subject to intensity of ambient light irradiation.
FEATURES
All Pocket Tach Series instruments provide a unique ergonomic design which allows you to safely observe both the display and the rotating target at the same time.
- Operating Range up to 25 feet* (Class 2 visible laser)
- Accepts Remote Contact Assembly (optional)
- Accepts Remote Sensors (optional)
- TTL Pulse Output (requires optional 6 foot BNC Cable)
- Auto Ranging/Fixed Decimal (user selectable)
- English and Metric Rates
- Tripod Mounting Bushing
- On-Target and Low Battery Indicators
- Rugged Rubberized Housing
- N.I.S.T. traceable Certificate of Calibration included
PLT200 SPECIFICATIONS | |
Display: | 5 Digits, 5 Alpha-numeric LCD |
Range(s): | Optical: 5 to 200,000 RPM |
Contact RPM: 0.5 to 20,000 RPM (see rates below) | |
Accuracy: | Optical:±0.01% of reading |
Contact:±0.05% of reading (rpm) | |
Totalizer: | 1-999,990 |
Resolution: | 0.001 to 10 RPM (range dependent) |
Operating Range: | 2 inches to 25 feet*, ±70° |
Memory: | Maximum, Minimum and Last reading |
Power: | (2) "AA" 1.5 VDC batteries (30 hours) |
Environmental: | Temp: 5° to 40°C (0° to 100°F) RH:80% RH up to 31°C (88°F) |
Dimensions: | 6.92 "H x 2.4"W x 1.6"D |
Weight: | 7 oz. (210 g) |
美國蒙拿多頻閃觀測機
1. Nova-Strobe
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM 外接轉速
PBL型 LED光源 精度0.01FPM 30-500,000FPM 轉速 相位 延遲
bax型 數字液晶顯示, 電源驅動 30--10,000FPM
bbx型 數字液晶顯示, 電池驅動 30--10,000FPM
dax型 數字液晶顯示, 電源驅動 30--20,000FPM
dbx型 數字液晶顯示, 電池驅動 30--20,000FPM
2. Phaser-Strobe pbx型 帶時間及角度延遲 30--50,000FPM
3. Palm Strobe psx型 超小型 可拆卸充電電池 100-12,500FPM
psx 備用電池包
頻閃機備用燈管L-1903,L1904
美國蒙拿多數字式光電轉速表
1.Pocket-Tach PT99型 非接觸 精度0.01% 5--100,000RPM
2. PLT 200 激光型 非接觸 精度0.01% 5-200,000RPM
PLT 200 Kit 激光型 接/非兩用 精度0.05% 0.5-20,000RPM
32功能, 計數器, 定時器,線速度
3. ACT-1B (分體式) 精度0.005% 5-99,999RPM
ACT-3X(分體式基本型)精度0.0015% 5-999,990RPM
ACT-3X(分體式定制型)USB、5V模擬輸出、報警、12V直流供電
4. ROS光電傳感器
ROLS激光傳感器
IRS紅外傳感器
SPSR自供電傳感器
SLS激光傳感器
5. GE-200發動機轉速表傳感器
