螺牙規格:公制牙(Metric),PG牙,G牙及NPT牙。
產品材質:主體采用優良銅鍍鎳制成,夾緊件采用尼龍塑料,密封圈采用EPDM耐候橡膠制成。
防護等級:IP68(在規定的適合電纜范圍內)
工作溫度:-40度到+110度,短時間可以達到120度。
產品特性:特殊夾緊爪與夾緊圈相扣之設計,配合迫緊螺帽裝配省時便利,夾緊電纜范圍大,抗拉力特強,可防水,防塵,抗鹽,耐酸堿,酒精,油,脂及一般溶劑.
螺牙規格 | 產品編號 | 適合電纜 | 螺紋外徑(C1) | 機板口徑 | 高(H) | 尾長(C2) | 扳手徑 | 基本包裝 |
M12×1.5 | M12-06 | 3~6 | 12 | 12~12.3 | 19 | 6 | 16 | 100pcs |
M14×1.5 | M14-06 | 3~6 | 14 | 14~14.3 | 19 | 6 | 16 | |
M16×1.5 | M16-08 | 4~8 | 16 | 16~16.3 | 20 | 7 | 18 | |
M18×1.5 | M18-10 | 6~10 | 18 | 18~18.3 | 22 | 8 | 20 | |
M20×1.5 | M20-12 | 8~12 | 20 | 20~20.3 | 23 | 8 | 22 | |
M22×1.5 | M22-14 | 10~14 | 22 | 22~22.3 | 23 | 9 | 24 | |
M24×1.5 | M24-14 | 10~14 | 24 | 24~24.3 | 23 | 10 | 27 | 50pcs |
M25×1.5 | M25-14 | 10~14 | 25 | 25~25.4 | 23 | 10 | 28 | |
M27×2.0 | M30-18 | 13~18 | 27 | 27~27.4 | 28 | 11 | 30 | |
M30×2.0 | M30-18 | 13~18 | 30 | 30~30.4 | 28 | 11 | 32 | |
M32×1.5 | M32-22 | 15~22 | 32 | 32~32.4 | 32 | 11 | 36 | |
M33×2.0 | M33-22 | 15~22 | 33 | 33~33.4 | 32 | 11 | 36 | |
M36×2.0 | M36-25 | 18~25 | 36 | 36~36.4 | 32 | 11 | 42 | |
M40×1.5 | M40-25 | 18~25 | 40 | 40~40.4 | 32 | 12 | 45 | 10pcs |
M42×2.0 | M42-28 | 22~28 | 42 | 42~42.4 | 36 | 12 | 48 | |
M48×2.0 | M48-32 | 25~32 | 48 | 48~48.4 | 38 | 13 | 52 | |
M50×1.5 | M50-32 | 26~32 | 50 | 50~50.4 | 38 | 13 | 56 | 5pcs |
M54×2.0 | M54-38 | 32~38 | 54 | 54~54.4 | 38 | 14 | 60 | |
M60×2.0 | M60-44 | 37~44 | 60 | 60~60.4 | 38 | 14 | 64 | |
M63×1.5 | M63-44 | 37~44 | 63 | 63~63.4 | 38 | 14 | 70 | |
M64×2.0 | M64-44 | 37~44 | 64 | 64~64.4 | 38 | 14 | 70 | |
M72×2.0 | M72-52 | 42~52 | 72 | 72~72.4 | 38 | 15 | 75 | |
M80×2.0 | M80-60 | 55~60 | 80 | 80~80.4 | 45 | 20 | 82 | |
M88×2.0 | M88-62 | 55~62 | 88 | 80~80.4 | 45 | 20 | 80 | |
M100×2.0 | M100-84 | 78~84 | 100 | 100~101 | 50 | 20 | 90 | |
G1/4 | G13-06 | 3~6 | 13.1 | 13.1~13.4 | 19 | 6 | 16 | 100pcs |
G3/8 | G17-08 | 4~8 | 16.6 | 16.6~16.9 | 20 | 7 | 18 | |
G1/2 | G21-12 | 8~12 | 20.9 | 20.9~21.2 | 23 | 8 | 22 | |
G3/4 | G26-18 | 13~18 | 26.4 | 26.4~26.7 | 28 | 11 | 30 | 20pcs |
G 1 | G33-22 | 15~22 | 33.4 | 33.2~33.5 | 32 | 11 | 36 | |
G1 1/4 | G42-28 | 22~28 | 41.9 | 41.9~42.2 | 36 | 12 | 48 | 10pcs |
G1 1/2 | G48-32 | 26~32 | 48.0 | 48.0~48.3 | 38 | 13 | 52 | |
G 2 | G60-44 | 37~44 | 60.0 | 60.0~60.4 | 37 | 14 | 64 | |
PG7 | PG7-06 | 3~6 | 12.5 | 12.5~12.8 | 19 | 6 | 16 | 100pcs |
PG9 | PG9-08 | 4~8 | 15.2 | 15.2~15.5 | 19 | 7 | 16 | |
PG11 | PG11-10 | 6~10 | 18.6 | 18.6~18.9 | 22 | 8 | 20 | |
PG13.5 | PG13.5-12 | 8~12 | 20.4 | 20.4~20.7 | 23 | 8 | 22 | |
PG16 | PG16-14 | 10~14 | 22.5 | 22.5~22.8 | 23 | 9 | 24 | |
PG21 | PG21-18 | 13~18 | 28.3 | 28.3~28.7 | 28 | 11 | 30 | 20pcs |
PG29 | PG29-25 | 18~25 | 37.0 | 37.0~37.4 | 32 | 11 | 42 | |
PG36 | PG36-32 | 26~32 | 47.0 | 47.0~47.4 | 38 | 13 | 52 | 10pcs |
PG42 | PG42-38 | 32~38 | 54.0 | 54.0~54.4 | 38 | 14 | 60 | |
PG48 | PG48-44 | 37~44 | 59.3 | 59.3~59.7 | 38 | 14 | 64 | |
NPT3/8 | N17-08 | 4~8 | 16.5 | —— | 20 | 7 | 18 | 100pcs |
NPT1/2 | N21-12 | 8~12 | 21.3 | —— | 23 | 8 | 22 | |
NPT3/4 | N26-18 | 13~18 | 26.6 | —— | 28 | 11 | 30 | |
NPT 1 | N33-22 | 15~22 | 33.4 | —— | 32 | 11 | 36 | 20pcs |
NPT1 1/4 | N42-28 | 22~28 | 42.1 | —— | 36 | 12 | 48 | |
NPT1 1/2 | N48-32 | 26~32 | 47.8 | —— | 38 | 13 | 52 | 10pcs |
NPT 2 | N60-44 | 37~44 | 59.6 | —— | 37 | 14 | 64 | |
備註: | 本產品規格為常規產品規格,如對產品技術有特殊要求接受定制。 |

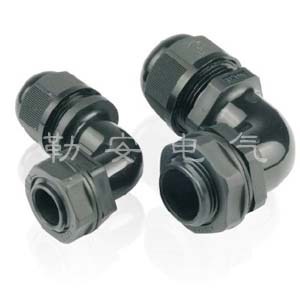

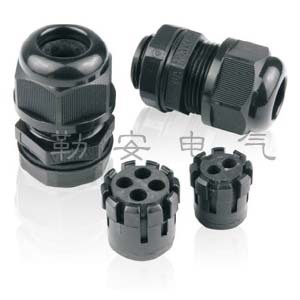

另外我們公司還提供各種規格紮帶、紮帶固定座、電纜固定頭、電纜鎖頭,電纜防水接頭、金屬電纜鎖頭、金屬電纜防水接頭、彎角電纜防水接頭、多孔電纜防水接頭、塑料浪管、浪管接頭、浪管固定頭、波紋管、波紋管接頭、金屬蛇管、金屬軟管、金屬軟管接頭、金屬蛇管接頭、不銹鋼機表線路金屬軟管、不銹鋼編制防爆金屬軟管、不銹鋼紮帶,噴塑金屬紮帶、活用護線套、等配線器材產品,並可根據你的設備系統或工程技術上的要求,提供最佳的產品技術和產品性價比解決方案,歡迎來電垂詢洽談。
