Detailed Product Description
Length:23cm
Weight:0.03Kg
Color:White

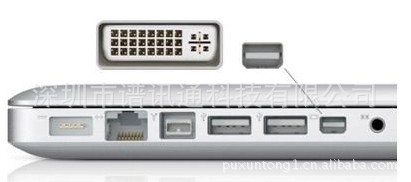

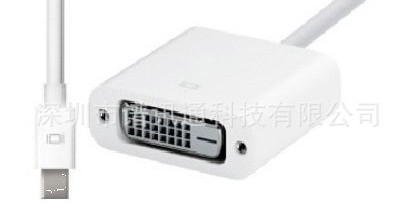

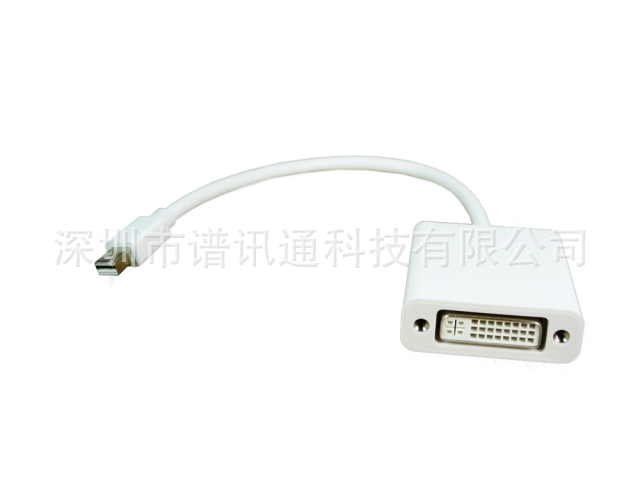

The Mini DisplayPort to DVI signal format converter seamlessly connect next generationDisplayPort based MacBook, MacBook Pro, or MacBook Air with a Mini DisplayPort to conventional DVI displays, such as CRT, LCD monitors and projectors. Mini DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications. It not only has an elegant appearance with the white color but also brings much convenience with its small size.
It offers solutions for digital entertainment center, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.
Features
1,Support Mini DisplayPort 1.1a input and DVI output.
2,Support DVI highest video resolution 1080p.
3,Support DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
4,Support DVI 12bit per channel (36bit all channel) deep color.
5,Powered from Mini DisplayPort source.
SPECIFICATIONS
Input Video Signal：5 Volts p-p (TTL)
Maximum Single Link Range：1920x1080P
Output Video：DVI
Input/Output Connector：Input:Mini DisplayPort Male 20pin Output: DVI Female (24+5)
Vertical Frequency Range：50/60Hz
Video Amplifier Bandwidth：2.25Gbps/225MHz
Interlaced(50&60Hz)：480i,576i,1080i
Progressive(50&60Hz)：480p,576p,720p,1080p
Operating Temperature：0 °Cto +70°C
perating Humidity：10% to 85 % RH (no condensation)
Storage Temperature：-10°Cto +80
使用說明：MiniDisplayPort轉DVI轉接器實現瞭將具有MiniDisplayPort視訊界面的主機連上一般的標準類比式顯示器、投影機、具備DVI接頭或訊號線的LCD液晶顯示器的作用。您可以使用外接顯示器作為主要工作空間、或是作為電腦桌面的延伸；此外，也可以在連接投影機時使用鏡像模式，和觀眾看見相同的畫面。
特別提示：請參閱您手邊顯示器的說明書、或是聯系顯示器制造商，以確定您購買的是正確的轉接器,拍錯買傢負責運費退換哦!!
適用機型:MB466、MB467、MB470、MC026、MB471、MB604、MB543、MB940、MB990以及所有帶MINI DISPLAYPORT的機型均可適用！
以上僅為部分機型,更多機型請參照說明書或者百度搜索型號查看接口參數,有Mini Displayport接口的機型均可使用,其它品牌亦可（僅限於外接顯示器，不具備主動式功能，不可直接顯卡接顯示器實現自啟動~）
實用功能
★Mini DisplayPort公頭=> DVI (24+5)母頭
★支持DisplayPort信號到DVI信號的轉換
★支持DVI最高分辨率:1920x1080P
★支持DVI 225mHZ/2.25Gbps per channel/6.75Gbps all Channel帶寬
★信號從Mini Displayport端輸入DVI端.
★支持單向、單通道、四線連接
