斯曼峰YB-DX23D型電動吸引器是一臺高負壓、大流量、交流驅動可移動式吸引裝置，供醫療機構吸除患者氣道內分泌物，手術室內吸除患者體內滲出液和沖洗液。

• 浸漬旋片泵。
• 裝有防止正壓產生和進入工作系統的安全裝置。
• 負壓調節系統可根據臨床需要作無級調壓。
• 噪聲低、容量大，手動、腳踏開關任意選用，操作方便。

• 極限負壓值：≥0.09MPa(680mmHg)
• 負壓調節范圍:0.02Mpa～極限負壓值
• 抽氣速率：≥32L/Min
• 貯液瓶：2500mL×2
• 電源：AC220V 50Hz
• 輸入功率：280VA
• 外包裝尺寸：40cm×38cm×47cm
• 凈重：16公斤

1. Efficient single rotor vacuum pump with oil impregnated vanes capable of producing a vacuum higher than 0.09MPa(680mmHg).and a suction flow more than 20 L/min.
2. Double 2500ml glass collection bottles to collect the sucked liquid, each of them calibrated in 100ml steps up.
3. Adjuster knob to regulate the precision vacuum gauge .

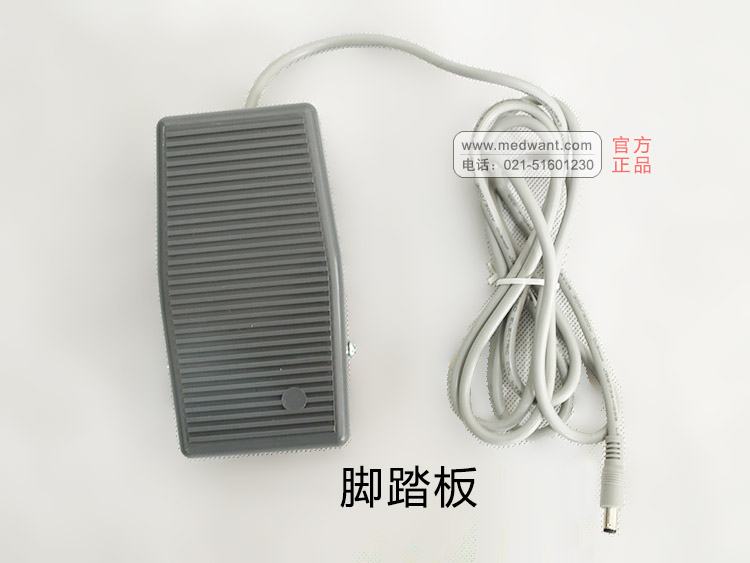

4. No difficulty near or remote control as both hand-switch and foot-switch installed in parallel.
5. Stability and durability. The unit is assured of long trouble free service.

1. Max Vacuum:≥0.09MPa(680mmHg)
2. Flow rate:≥32L/min
3. Storage bottles:2500ml×2
4. Power supply:AC220V  50Hz
5. Input:280VA
6. Dimemsion:400mm×380mm×470mm
7. G.W./N.W.:18/16kg
