斯曼峰DY-3型低壓（大流量）吸引器適用於各醫療單位作腸、胃、胸腔、膀胱等手術後及內科、兒科等持續引流用。

一、

• 采用無油潤滑電磁泵作為負壓源，無需日常維護和保養，並且可以長期連續使用；系統不會產生正壓；

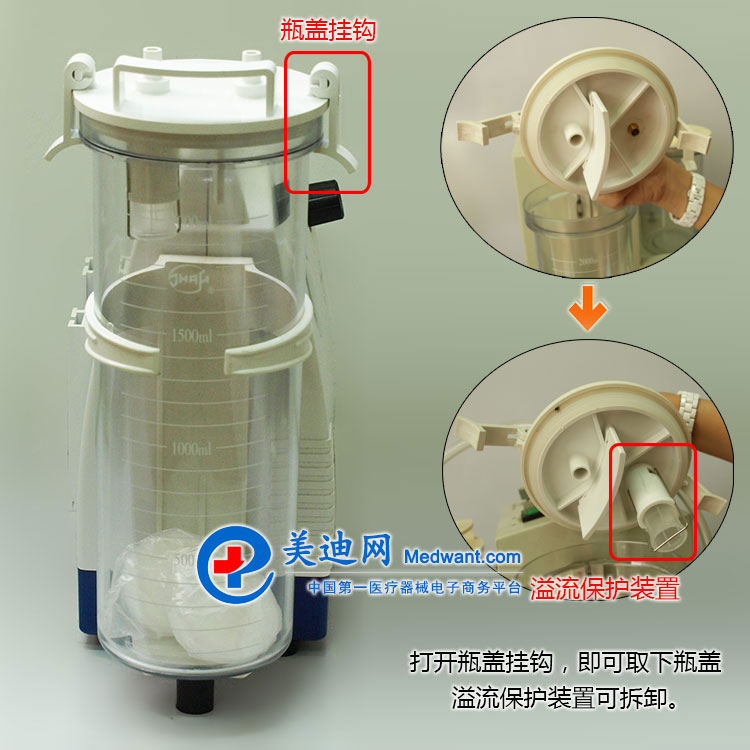

• 溢流保護裝置能有效地阻止液體進入泵內；空氣過濾器可以減少吸出物中細菌對周圍環境的影響；

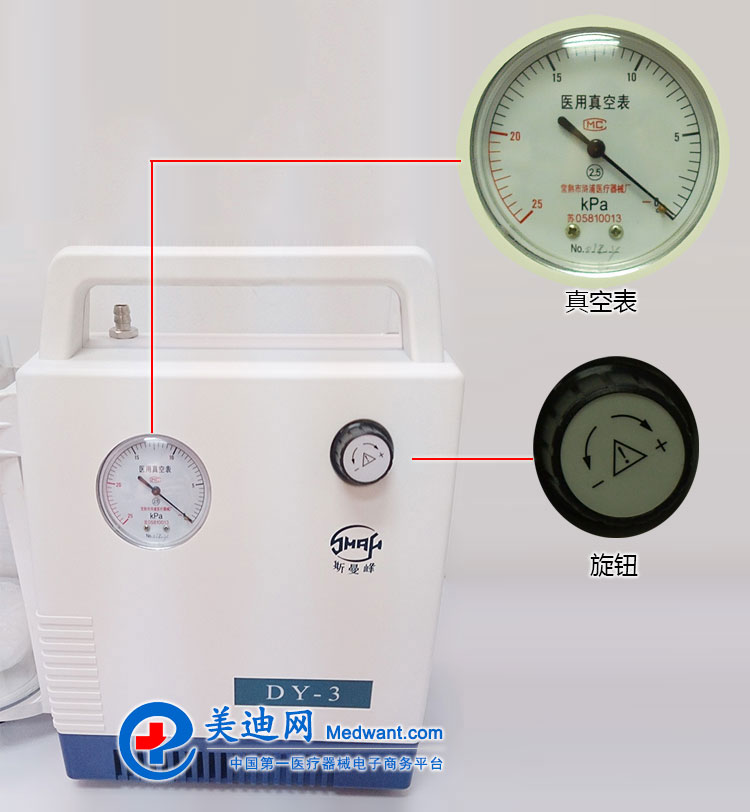

• 負壓調節裝置具有鎖定功能，可根據需要任意設定負壓值，並且能有效的防止誤接觸後的負壓偏移，對所設定的負壓具有恒定功能；
• 聚碳酸酯塑料貯液瓶便於拆卸、清洗和攜帶，並可高溫消毒；
• 塑料箱殼美觀、耐用；結構緊湊、重量輕、操作簡單、攜帶方便。

二、

• 最大負壓值：17KPa~20KPa (128mmHg~150mmHg)
• 負壓調節范圍：2KPa(15mmHg)～極限負壓值
• 抽氣速率：≥20 L/分鐘
• 噪聲：≤60dB(A)
• 貯液瓶：2000mL（PC塑料）
• 電源：AC220V±10%，50Hz
• 輸入功率：100VA
• 凈重：4.3公斤

1. Safely powered by electromagnetic pump which requires no lubrication or daily maintenance can be continuously used for a long-time. No positive pressure producing. It is secure for patients.
2. Overflow protection device can safely and efficiently prevent the liquid form entering into pump. And the air emitted by the pump is prefiltered by a bacterial filter which provides an effective barrier against contamination and protection to the environment.
3. Vacuum regulator with a locked set can be optionally regulated according to requirements. And it can efficiently prevent the regulator knob moving by mistake.
4. Autoclavable, transparent plastic bottle is more convenient for disassembly, cleaning and carrying.
5. Body made of plastic material is light, compact, and convenient for carrying and operating.

Max Vacuum:17~20KPa(128~150mmHg)
Vacuum range:2KPa(15mmHg)~ Max Vacuum
Flow rate:≥20L/min
Noise:≤60dB(A)
Jar capacity:2000ml(polycarbonate)
Power input:100VA
Power supply: AC220V  50Hz
Dimemsion:410mm×205mm×420mm
G.W./N.W.:6.3/4.3kg
