1. 采用大流量無油潤滑真空泵作負壓源，抽氣速率高，無油霧污染，可免去泵體的日常維護和保養。
2. 溢流保護裝置可防止液體進入中間管道和泵內。
3. 管路中裝有單向閥，可選擇停機操作。
4. 根據臨床需要，可選配濾液裝置，便於采樣且拆卸，清洗方便。
5. 負壓調節閥旋轉靈便，可控制吸引時所需要的負壓，並由真空表來顯示。
6. 負壓泄放裝置安裝在設備頂部，可用於停機操作時的負壓由高調低，亦可用於病人端的負壓釋放。
7. 該設備體積小、重量輕，操作簡易、便捷。

1. 極限負壓值：≥0.09MPa （680mmHg）
2. 負壓調節范圍：0.02MPa ～ 極限負壓值
3. 抽氣速率：≥20L/min
4. 噪聲：≤60dB(A)
5. 貯液瓶：1000ml（透明PC塑料）
6. 電源：～220V 50Hz
7. 輸入功率：150VA
8. 外包裝尺寸：39cm X 36cm X 42cm
9. 毛/凈重：9.5/8Kg

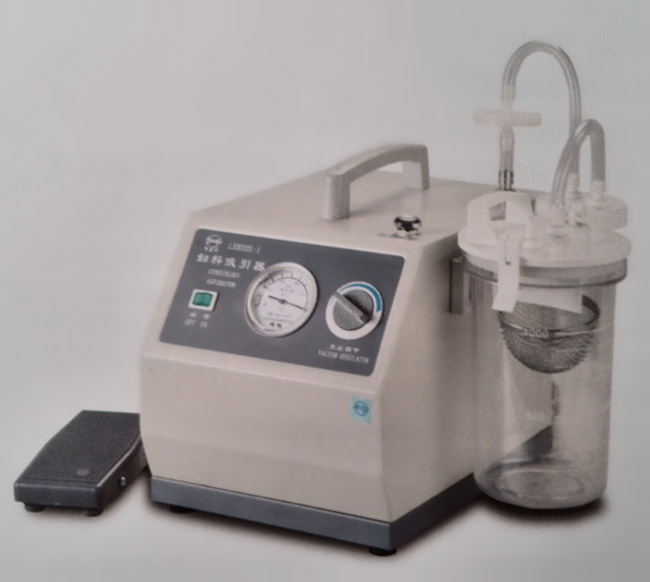

The model is a novel, high vacuum, high flow, small-sized medical suction unit. It is intended for obstetrical operation such as early artificial interruption of pregnancy and removal of the residua after postpartum in various hospital or health care facilities. It is also adequate for other surgery suction when equipped with matching catheters.

1. Oil-less vacuum source with a high flow, double piston cylinder, pump needs maintenance free and easy service.
2. Large-bore bottles made of PC plastics with high quality, convenient for cleaning. Conveying and carrying. The liquid filter can be assembled according to the requirement for sample selected in clinic.
3. The overflow protection device is intended to prevent liquid or solid particles from entering the intermediate tubing; the air filter can reduce contamination to the environment.
4. The back-valve fitted in the pipe system makes it more safety and reliable to operate during halting, and the vacuum regulator controls the level of vacuum required in clinic by adjusting the regulator knob.
5. Vacuum release valve fitted on the foot-switch uses for adjusting the vacuum from high to low when halting, and also uses for the pressure releasing applied to the patient.
6. The gas circuit controlling system designed strictly makes the setting vacuum level stable and not required to set repeatedly.
7. Stability and durability low noise, safe and reliable to operate.

1. Max.Vacuum: ≥0.09MPa (680mmHg)
2. Adjustable vacuum range : 0.02MPa - Max.vacuum
3. Flow rate : ≥ 20 L/min
4. Noise :≤60dB(A)
5. Storage bottle :1000mL
6. Power supply : AC220V 50Hz
7. Input :150VA
8. Dimension: 390mm×360mm×420mm
9. G.W./N.W.: 9.5/8kg
