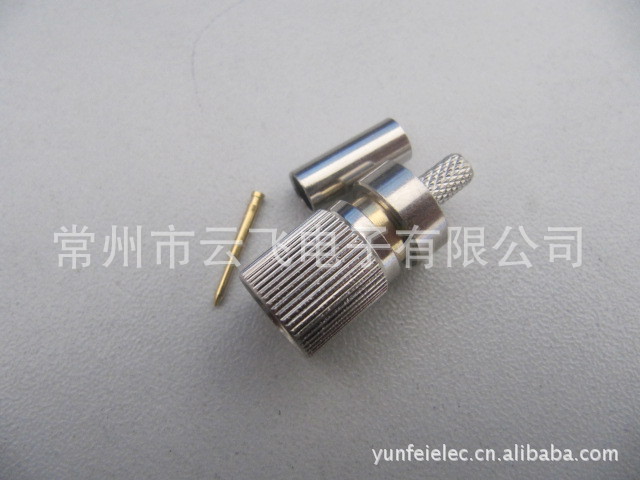

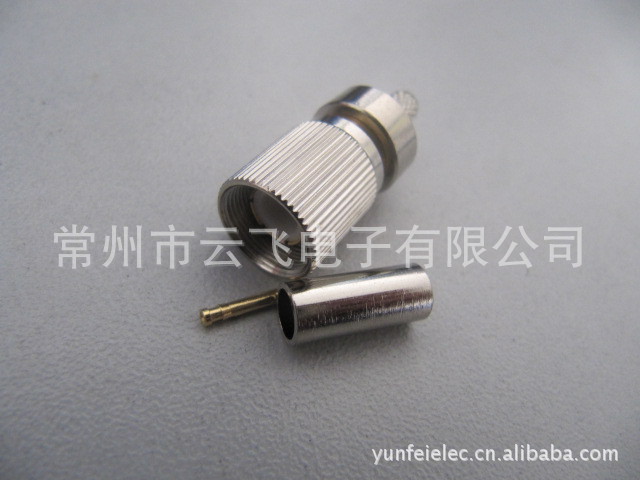

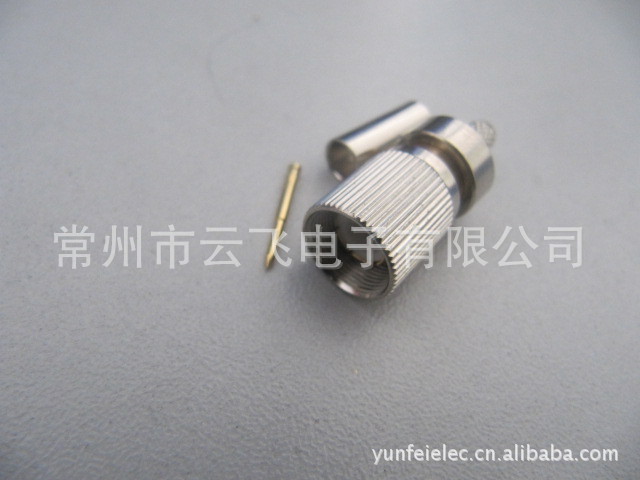

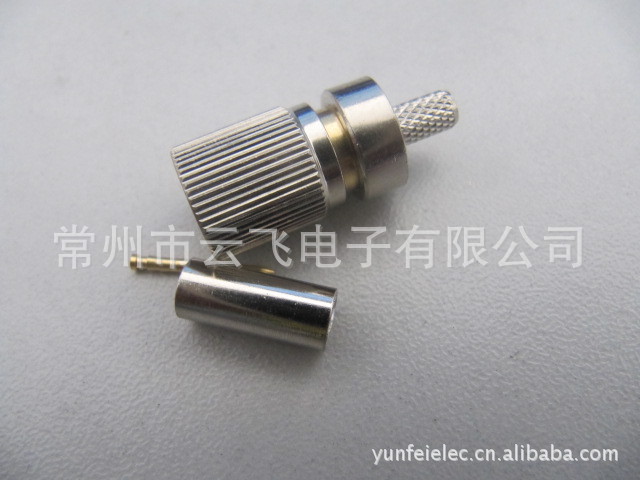

A款：壓接尾鍍鎳

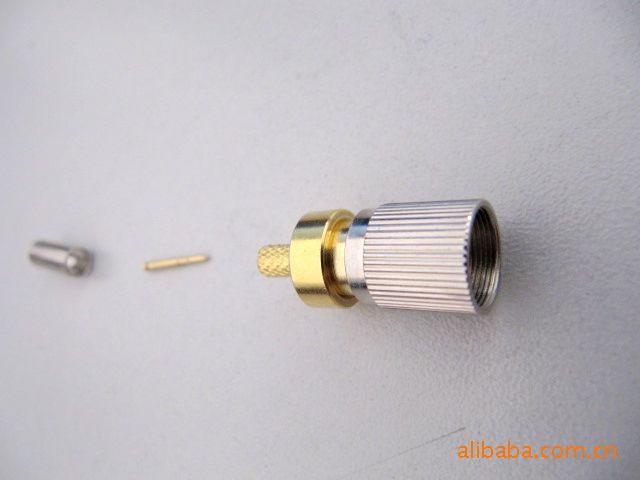

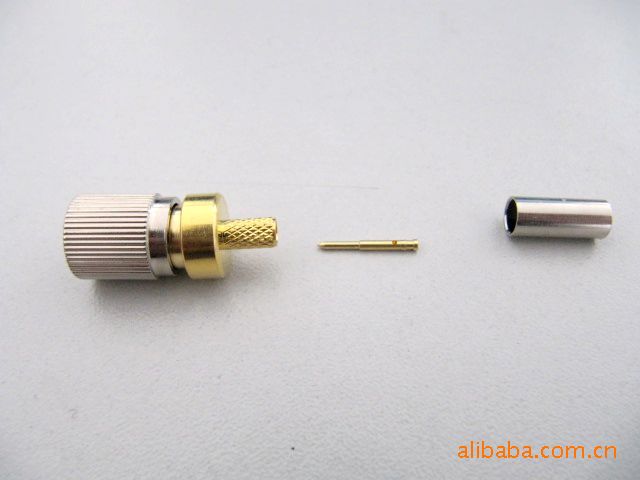

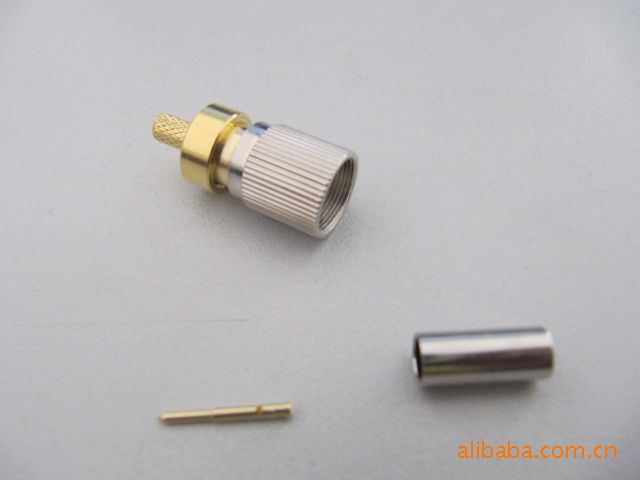

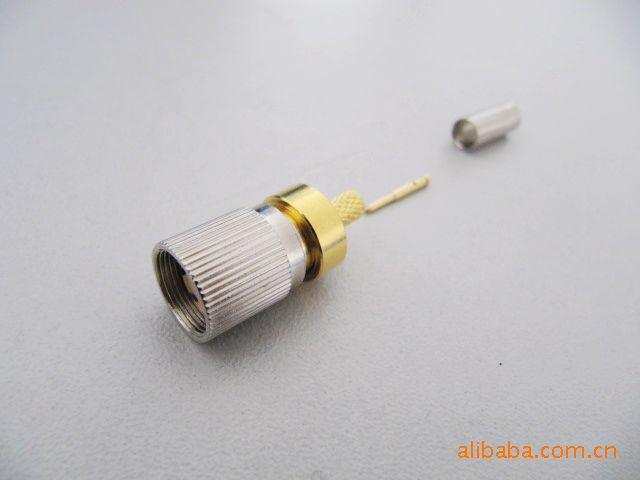

B款：壓接尾鍍金
L9型連接器
 |
| MALE | FEMALE | |||||
| Min | Max | Min | Max | |||
| A | 1.60nom. | 1.60nom. | A | |||
| B | 5.60nom. | 5.60nom. | B | |||
| C | 400 | 3.80 | C | |||
| D | 0.15 | 0.25 | 0.75 | D | ||
| E | 0.97 | 1.03 | 6.60 | 6.69 | E | |
| F | 5.50 | 8.10 | 8.25 | F | ||
| G | 6.40 | 6.60 | 6.70 | G | ||
| H | 9.70 | H | ||||
| I | M9*0.5 | I | ||||
| k | 2.90 | 3.10 | k | |||
| 1)resilient dim.To meet electrical and mechanical requirements | ||||||
| Technical Characteristics | 技術參數 |
| Electrical characteristics | 電氣性能 | |
| Characteristic impedance | 75Ω | 阻抗 |
| Frequency range | 0-12GHz | 頻率范圍 |
| VSWR(straight connectors) | ≤1.20 typ. | 駐波比（直式電纜連接器） |
| Insulation resistance | ≥500MΩ | 絕緣電阻 |
| Center contact resistance | ≤4mΩ | 內導體接觸電阻 |
| Outer contact resistance | ≤2mΩ | 外導體接觸電阻 |
| test voltage | 1500 V rms | 測試電壓 |
| Working voltage | 300 V rms | 工作電壓 |
| RF-leakage(dB) | ≥90dB | 射頻泄露 |
| Mechanical characteristics | 機械性能 | |
| Coupling torque | 30Ncm max. | 結合扭矩 |
| Connecting operations | ≥500 | 耐久力 |
| Environmental influences | 環境影響 | |
| Temperature range | -40°C-+85°C | 溫度范圍 |
| Quality test | DIN 47295 | 質量測試 |
| Climatical class according IEC 68 | 40/085/21 | 氣候依據 |
| Materials | 材料 | |
| Body | Brass | 主體 |
| Spring loaded contacts | CuBe | 內導體 |
| Insulaor | LCP or equivalent | 絕緣子 |
| Crimping ferrules | Soft copper | 壓接管 |
| Plating body contact area | Au | 主體接觸區域電鍍 |
| Plating center contact area | Au | 中心導體接觸區域電鍍 |
| Plating other parts | Ni | 其他零件電鍍 |
