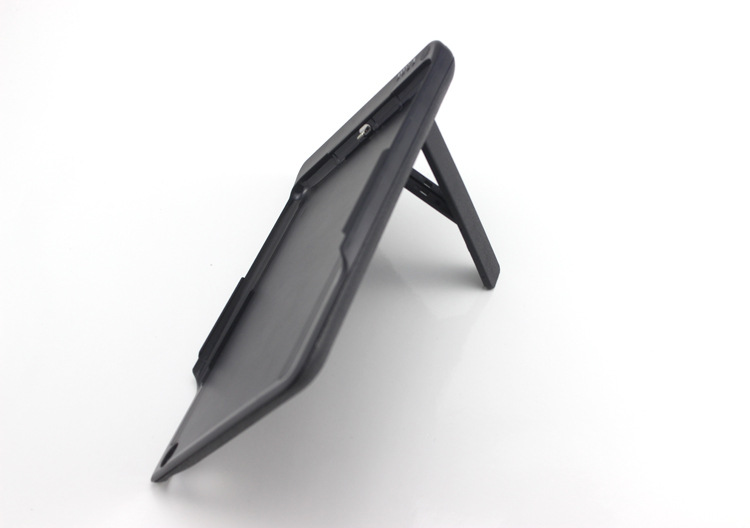

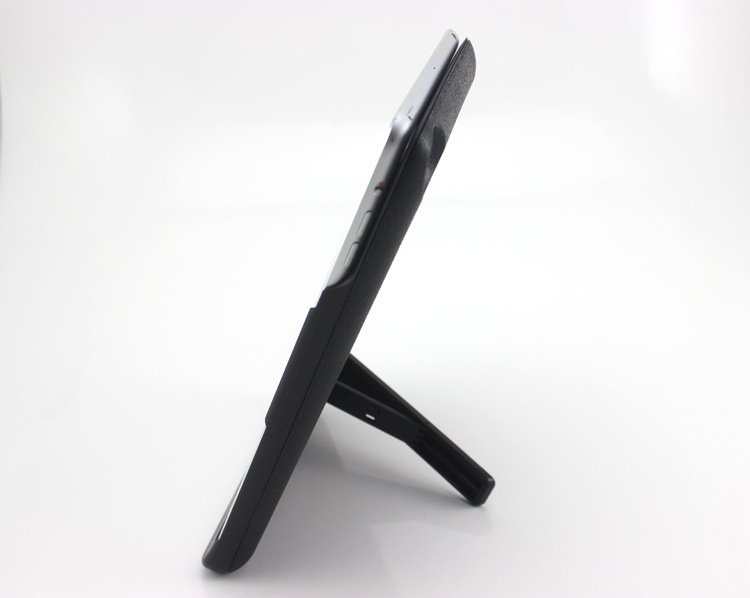

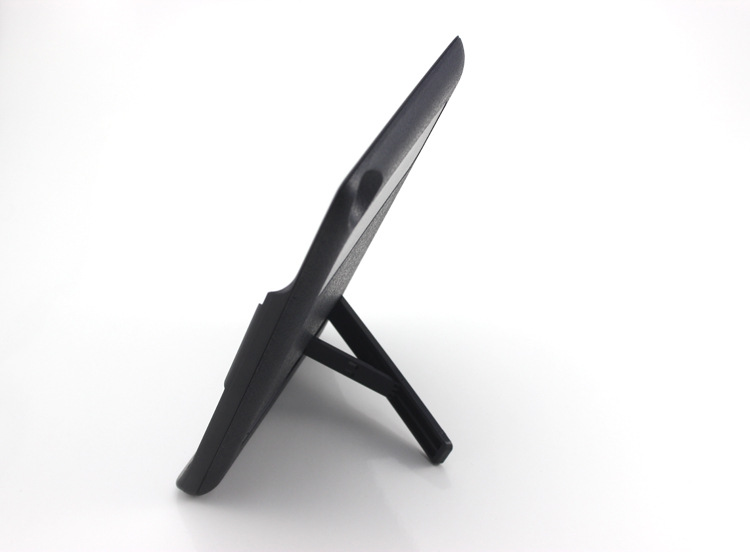

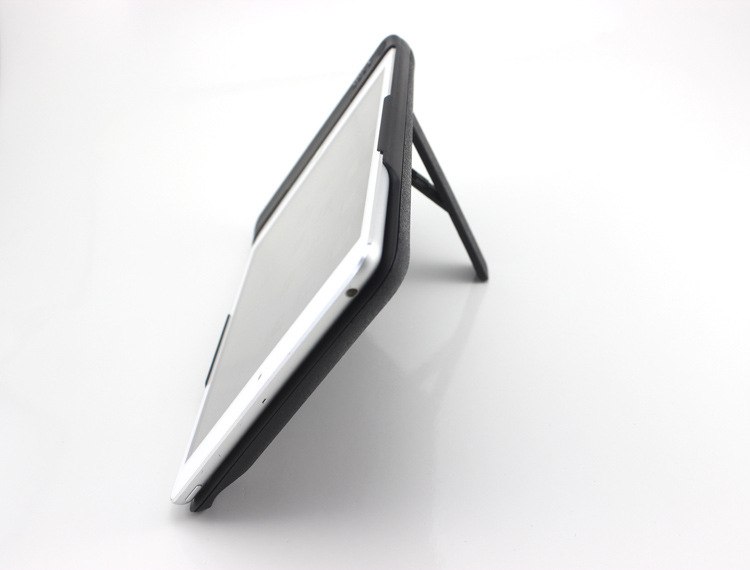

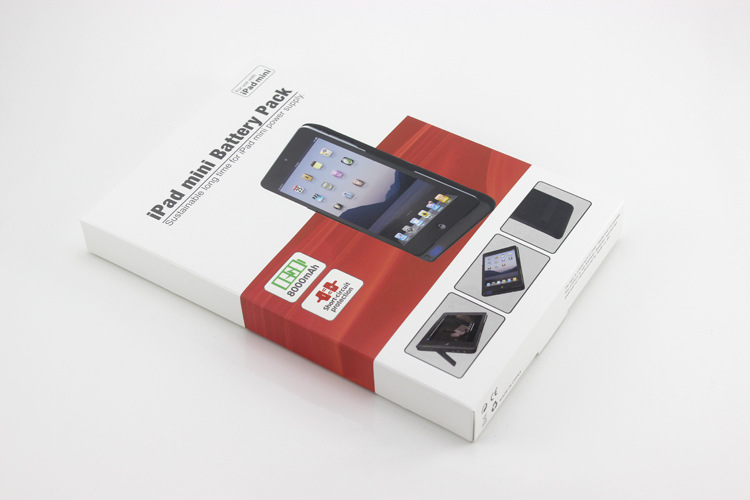

iPad mini續航電池包ipad mini背夾電池包帶支架

Introduction(產品介紹)

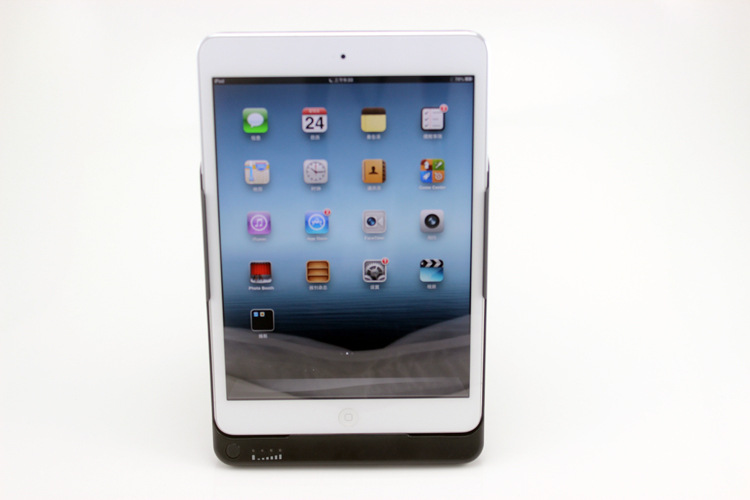

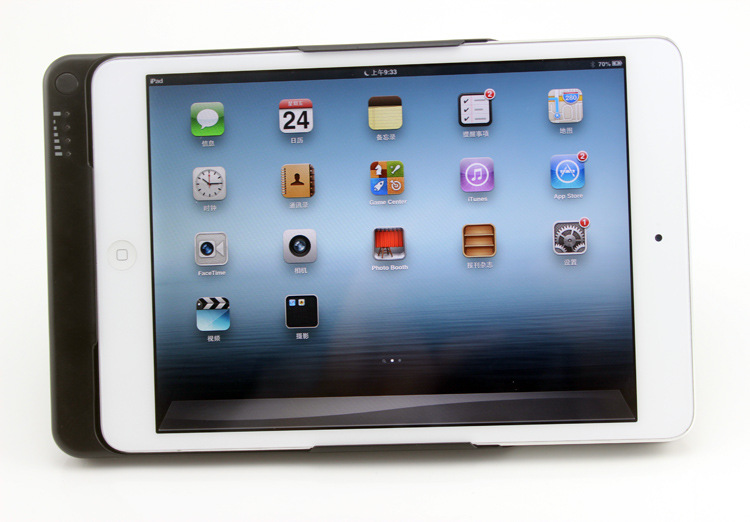

    本產品適用於iPad mini。除瞭作為一款續航能力超強的便攜式後備電池包外，還可iPad mini保護後蓋使用，為你的iPad mini帶來強勁動力及絕佳防護。
    內置超大容量可充電鋰電池（8000mAh），可持續長時間為iPad mini供電；
    帶4個電量指示LED及1個電量檢測開關，可以實時查看電池包電量，使用更方便；
    采用新型電源管理及電路保護IC，有過充保護、過流保護、過壓保護、短路保護，全面保護被充電產品及電源.

電性參數：
    1.輸入電壓：5V；    2.輸入電流：2A；    3.靜態電流：＜100μA
    4.輸出電壓：5V；    5.輸出電流：1A
電量顯示：
    按下電量檢測開關，電源打開，LED指示燈亮起，表示輸出端有5V電壓輸出。再按下檢測開關≥3秒時，電源關閉。
    打開電源後，如無外接負載，3分鐘後電池包將自動進入待機狀態。
    按下電量檢測開關時，如電池包電量大於90%，四個LED燈會同時亮起；如電池包電量大於70%且小於90%，則第一，二，三個LED燈同時亮起；如電池包電量大於50%且小於70%時，則第一，二個LED燈同時亮起；當電池包電量大於30%且小於50%時，則第一個LED燈亮起；當電池包電量小於30%時，則四個LED燈同時閃爍，提示用戶需要充電。
User Manual(操作說明)

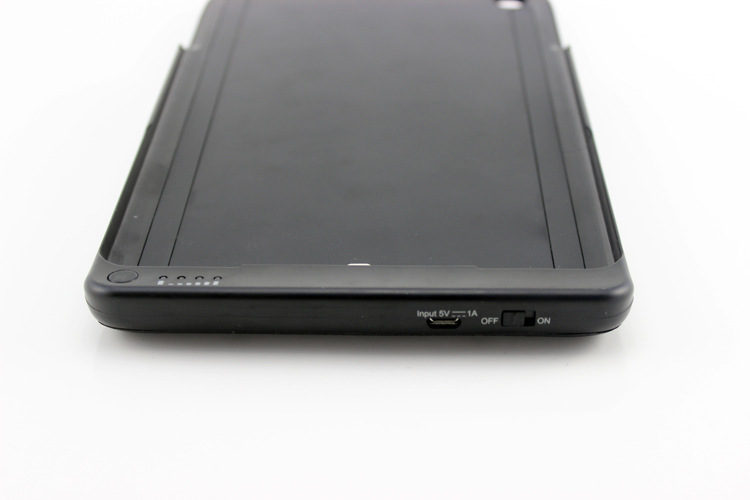

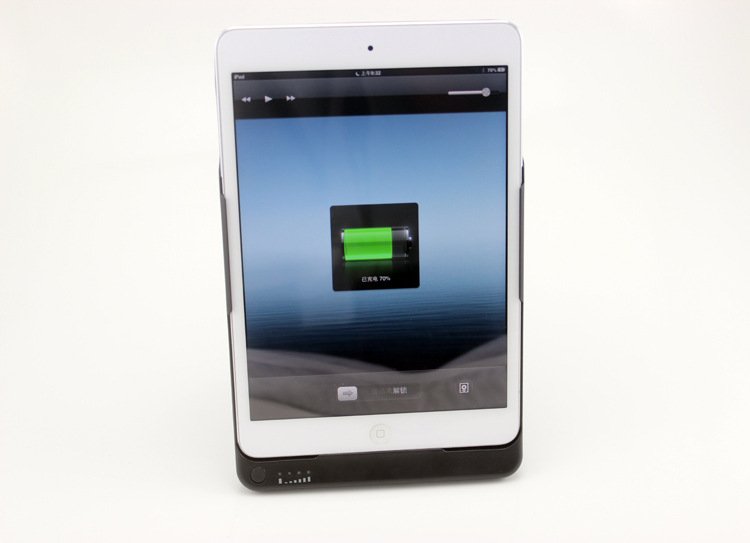

1. 將iPad mini裝入電池包後，再將電池包上的充電開關撥到ON，則電池包開始對iPad mini進行充電，iPad mini上會有相應的充電圖標提示。充電結束後，將充電開關撥到OFF，再將主機從電池包內取出即可。

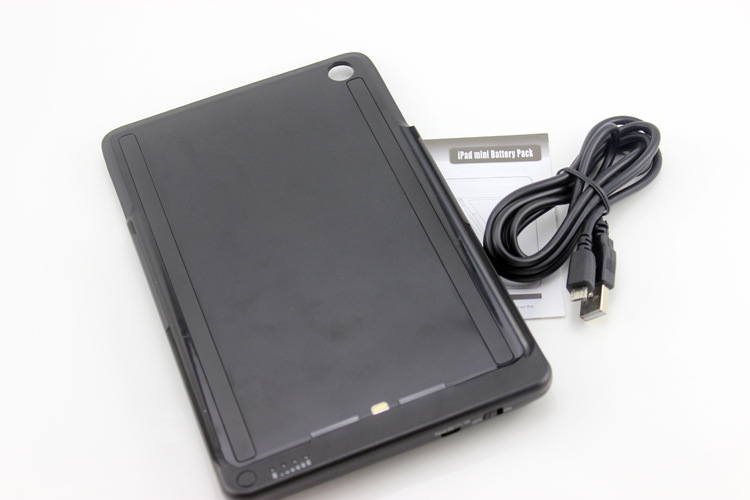

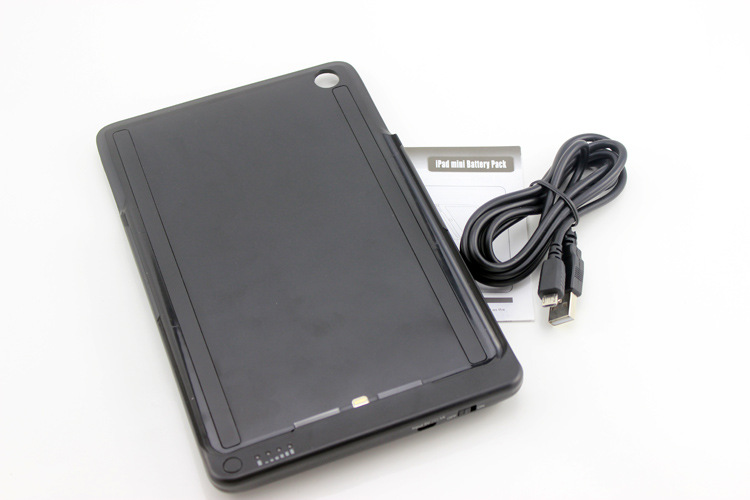

2. 將電池包通過配套的USB轉換線接至iPad mini原裝適配器,再將火牛連接至AC電源,則可以對電池包進行充電,充電時四個LED為流水方式顯示,充電飽和後,四個LED轉為常亮顯示,充電過程中充電開關撥至任意位置均不影響充電過程。
3. 當使用電池包為iPad mini進行充電時,也可用USB轉換線接至iPad mini原裝適配器,此時將優先給電池包進行充電。

Attention（註意事項）
1. 充電時，電池包會開始發熱，此為正常現象，為預防過熱，請在通風陰涼處為電池包充電。
2. 請不要使用化學溶劑擦拭本產品。
3. 請不要試圖拆解，摔，砸，或是用利器割，劃電池包。
4. 請將電池包遠離熱源，火源放置，並避免陽光直射。
5. 請不要將電池包存放於潮濕處或是投入水中

Introduction:
This product is suitable for iPad mini. In addition to being a super battery life of portable back-up battery pack, can also be used as the iPad mini protective cover, bring to your iPad mini strong momentum and excellent console protection.
Built-in large capacity rechargeable lithium battery (8000mAh),Sustainable long time for iPad mini power supply.
IPad4 original AC adapter with the battery pack charging to the saturation takes about 4 hours.
With 4 LED battery indicator and a battery test switch, real-time check the battery pack power, use more convenient.
Use new power manage and circuit protection IC,have Overcharge Protection,Overcharge protection,Overvoltage protection,short-circuit protection,
protect the charge product and power.

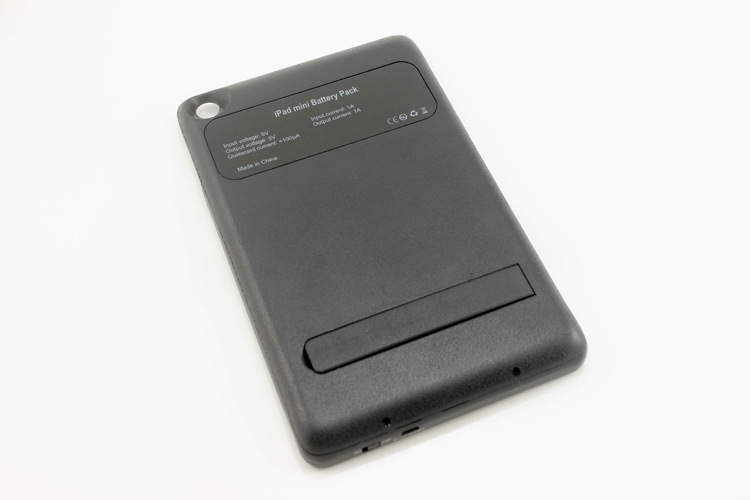

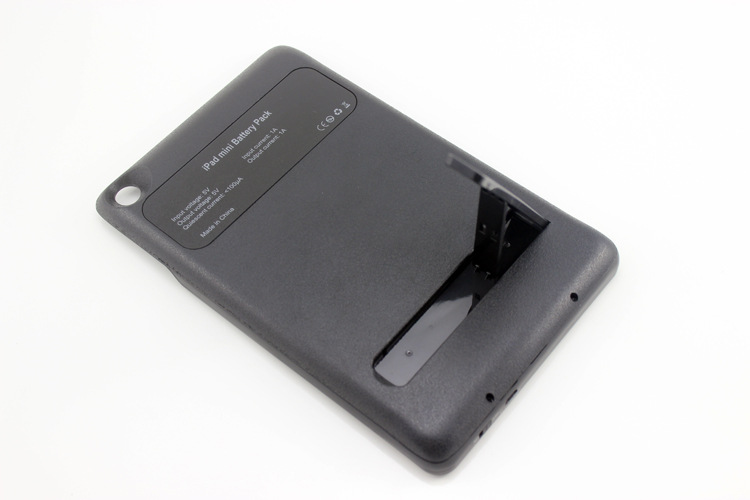

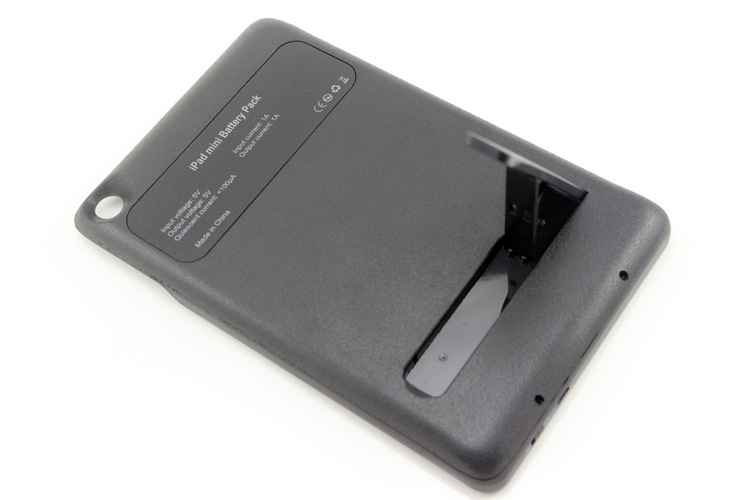

Electrical parameters:
1. Input voltage: 5V;
2. Input current: ≤ 2.5A;
3. Quiescent current: <100μA;
4. Output voltage: 5V;
5. Output current: ≤1A
Battery indicator:
Press the battery test switch, power on, LED light indicates that there is 5V output voltage output. Then press the test switch ≥ 3 seconds, the power is off.
Turn on the power, if no external load, 3 minutes after the battery pack will automatically enter standby mode.
Press the battery test switch, such as the battery pack charge more than 90%, while the four LED light will light up; such as the battery pack power is greater than 70% and less than 90%, the first, second and third LED lights also light cases; If the battery pack power greater than 50% and less than 70%, while the first and second LED lights also light up; when the battery pack power is greater than 30% and less than 50%, the first LED lights ; When the battery pack capacity is less than 30%, while the four LED lights flash, prompting the user needs to be charged.
