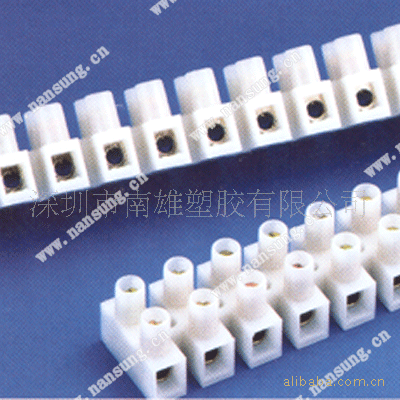

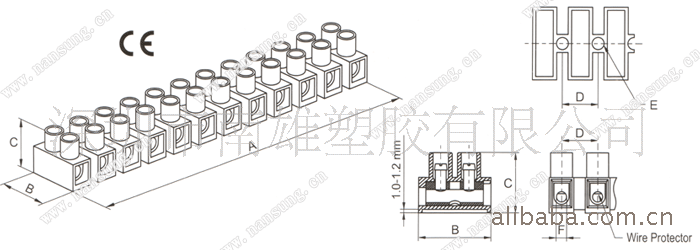

端子臺 (H 型) Terminal Block (H Type) ?底座：底座加高 1.2 ～2.5mm。 ?膠殼：尼龍66工程塑料，UL 94V-2、94V-0阻燃等級。 ?溫度：105?C (UL)，-30?C to T110?C (VDE)。 ?彈片：不鏽鋼材質，PA7DS、PA8DS、PA9DS、PA10DS、PA12DS、PA14DS附加彈片。 ?螺絲：鍍鋅白鐵。 ?剝線長度：請參照使用說明書。 ?接線排數：12排。
| |
| 型 號 Model | 訂單編號 Cat. No. | 適用電線/Wire Range Cross-Sec | 適用電線/Wire Range Cu, AWG | 螺絲 Screw | 包裝單位 Packing |
| PA7 | PA7 | 1.5 mm² | #22 - #12 Sol/Str | M2.6x5 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA7DS | PA7DS | 1.5 mm² | #22 - #12 Sol/Str | M2.6x5 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA9 | PA9 | 2.5 mm² | #22 - #12 Sol/Str | M3.0x6 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA9DS | PA9DS | 2.5 mm² | #22 - #12 Sol/Str | M3.0x6 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA8 | PA8H | 1.5 mm² | #22 - #12 Sol/Str | M2.6x5 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA8DS | PA8HDS | 1.5 mm² | #22 - #12 Sol/Str | M2.6x5 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA10 | PA10H | 2.5 mm² | #22 - #10 Sol, #14 - #10 Str | M3.0x6 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA10DS | PA10HDS | 2.5 mm² | #22 - #10 Sol, #22 - #12 Str | M3.0x6 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA8 | PA8P | 1.5 mm² | #22 - #12 Sol/Str | M2.6x6 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA10 | PA10P | 2.5 mm² | #22 - #10 Sol, #14 - #10 Str | M3.0x7 | 50 Pcs/Bag , 500 Pcs/Ctn |
| PA12 | PA12H | 6.0 mm² | #22 - #10 Sol/Str | M3.5x7 | 40 Pcs/Bag , 400 Pcs/Ctn |
| PA12DS | PA12HDS | 6.0 mm² | #22 - #10 Sol/Str | M3.5x7 | 40 Pcs/Bag , 400 Pcs/Ctn |
| PA14 | PA14H | 10.0 mm² | #22 - #8 Sol/Str | M4.0x9 | 25 Pcs/Bag , 250 Pcs/Ctn |
| PA14DS | PA14HDS | 10.0 mm² | #22 - #8 Sol/Str | M4.0x9 | 25 Pcs/Bag , 250 Pcs/Ctn |
| PA16 | PA16H | 16.0 mm² | #14 - #6 Sol/Str | M4.0x9 | 10 Pcs/Bag , 200 Pcs/Ctn |
| PA18 | PA18H | 25.0 mm² | #12 - #4 Sol/Str | M5.0x11 | 10 Pcs/Bag , 100 Pcs/Ctn |
 |
