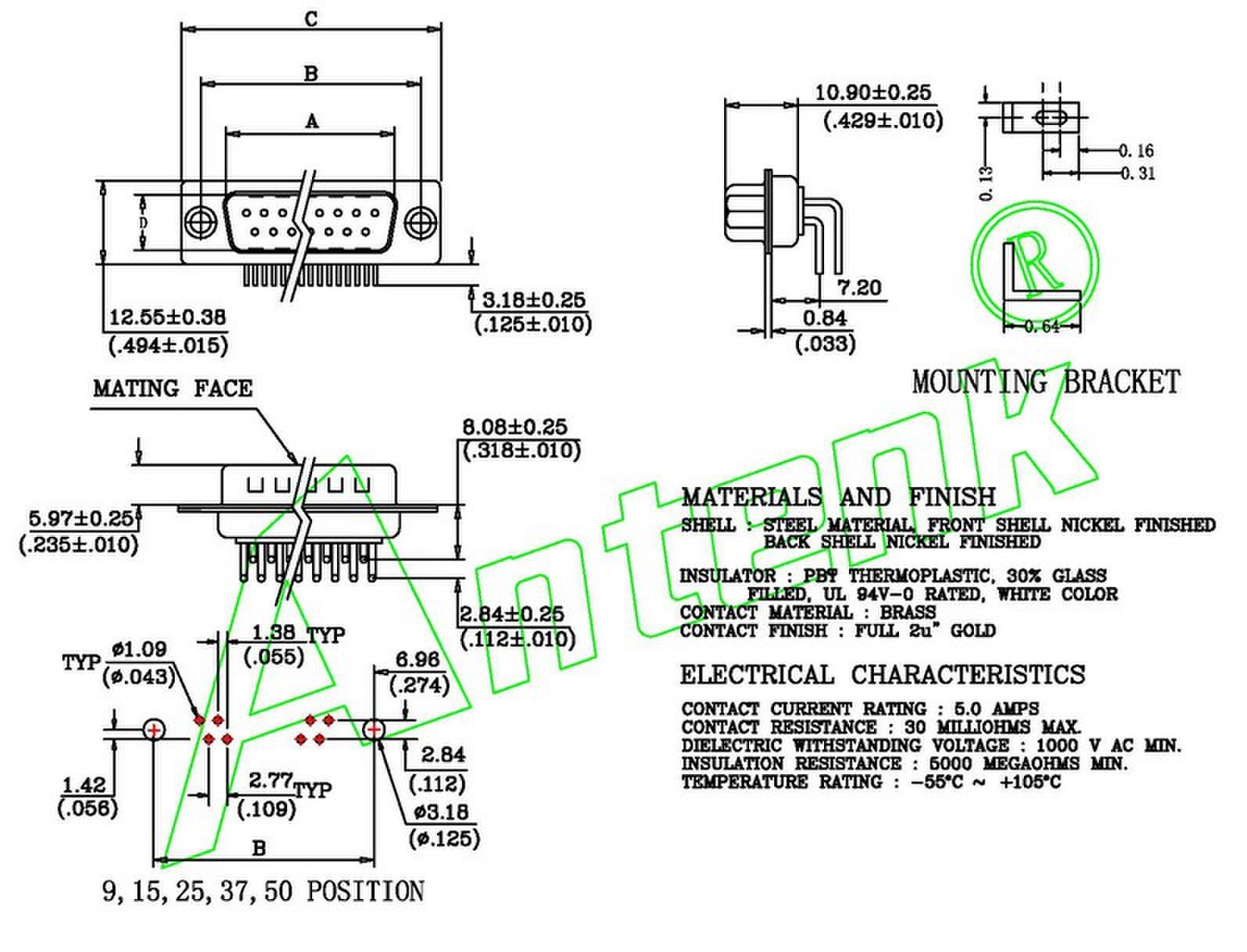

規格描述(Specification)
D-Sub 車PIN/公座/90°（DR）
Pin位：9P
D-Sub Male/90°（DR)
QTY of pin: 9P
材料((Matetrial)
膠體材質：PBT , thermoplastic +30%Glass
膠體顏色：黑色，灰色，白色，藍色
insulation material:PA6T Polyester UL94V-0
Color of body :Black,gray,white,blue
電氣特性(Electronical Specification)
額定電流：5AMPS
耐電壓：1000Vr.m.s,1mA,60s
接觸電阻：≤25mΩ
絕緣電阻：≥5000MΩ
Current Rating: 5.0 AMP
Voltage rating: 1000VAC/min
Contact resistance: 30mΩmax
Insulation resistance: 5000MΩmin
機械特性(mechanical characteristics )
工作溫度：-55℃~+105℃
Working Temperature :-55℃~+105℃
所有產品均接受訂單生產;起訂量500/PCS；生產交期1-2周；量大可優惠；
The above products can be produced to accept orders; MOQ 500/PCS; production and delivery of 1 to 2 weeks; quantity discount;
具體產品圖需求可以發郵件到[email protected]中詢盤；我們將在24小時之內給你回復；
The diagram needs of specific products can send an email to the inquiry in [email protected]; we will reply you within 24H;
國內聊天工具可以加QQ:1469730281
Domestic chat tool can add QQ: 1469730281
歡迎訪問官網:www.antenk.com.cn
Welcome to visit the official website :www.antenk.com.cn
歡迎來電咨詢Welcome to call me at :
Tel:+86-755-27067689 Fax:+86-755-27067079 Mob:+86-136 3279 4178 Ms Peng彭小姐
Add:深圳市寶安區松崗鎮塘下湧光輝科技園1棟2樓
2Flood of Building1,Guanghui Industrrial Park,Tangxiayong Village,Songgang Town,Bao'an District,Shenzhen City,Guangdong.China。
