本公司專業生產PI Header；FEMALE HAEDER,杜邦WAFER.FPC/FFC;FC,FD;USB.D-SUB,RJ45/R11;DVI;HDMI等精密連接器。
久越精密電子有限公司成立與1990年。是一傢專業全方位的連接器，接插件專業研發，設計、生產制造廠商。公司已ISO9001,ISO1400管理體系認證,所生產的產品均符合歐盟ROHS，無鹵環保要求及SONY,LG等環保要求。已成為許多知名公司的長期合格供應商。
本公司可以直接提供轉廠，17%增值稅業務。

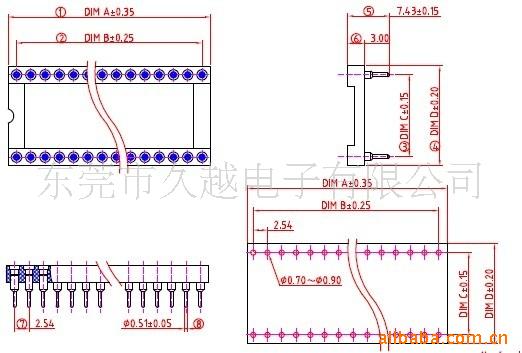

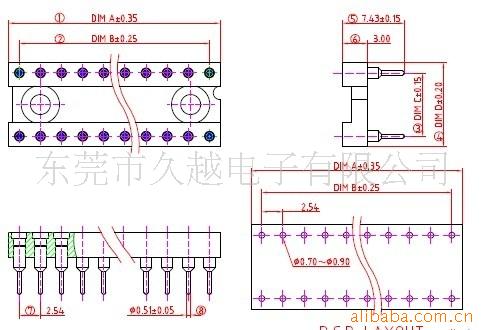

產品介紹：
MaterialsPin (outer sleeve) : Brass,machined, CuZn38Pb2
Clip(contact 4 finger) : Beryllium copper ,heat treated or PHBZ
Plating(outer sleeve) : Tin plated : 2um/80u"nickel,5um/200u"Tin
Gold plated: 2um/80u"nickel,full gold
Plating clip(contact): 2um/80 u"nickel,gold or tin plating
Insulator body(black) : Glass filled thermoplastic polyester UL94V-0
electrical
Current rating : 3 Amps/contact max.
Contact resistance : ≦4mΩ/contact
Insulation resistance : ≧10000M Ωat 500VAC
Rated voltage : 100VRMS/ 150 VDCMechanical
Operating temperature : Gold plated:-55℃ to +125℃
(Continuous) -67°F to +105° F
Tin plated:-40 ℃ to +105℃
Average insertion force with steel pin of: Φ0.43mm/0.017" < 250g
Average withdrawal force with steel pin of Φ0.43mm/0.017" >50g
Mechanical life : min.200Application
1.The open frame is most common type.
2.The open body design gives better access (for cleaning and inspections)
to air -cooling.
3.Side and end stackable.
4.High retention design prevents IC walkout during heavy vibration.
5.Closed bottom sleeve for 100% anti-wicking of silder.
6.Twist free construction.
』Environmental data
Solderability (IEC 60068-2-20. Ta) :235 ℃, 2s
Resistance to soldering heat (IEC 60068-2-20. Tb) :
-Through hole mount components :260 ℃, 10s
