Function introduction:

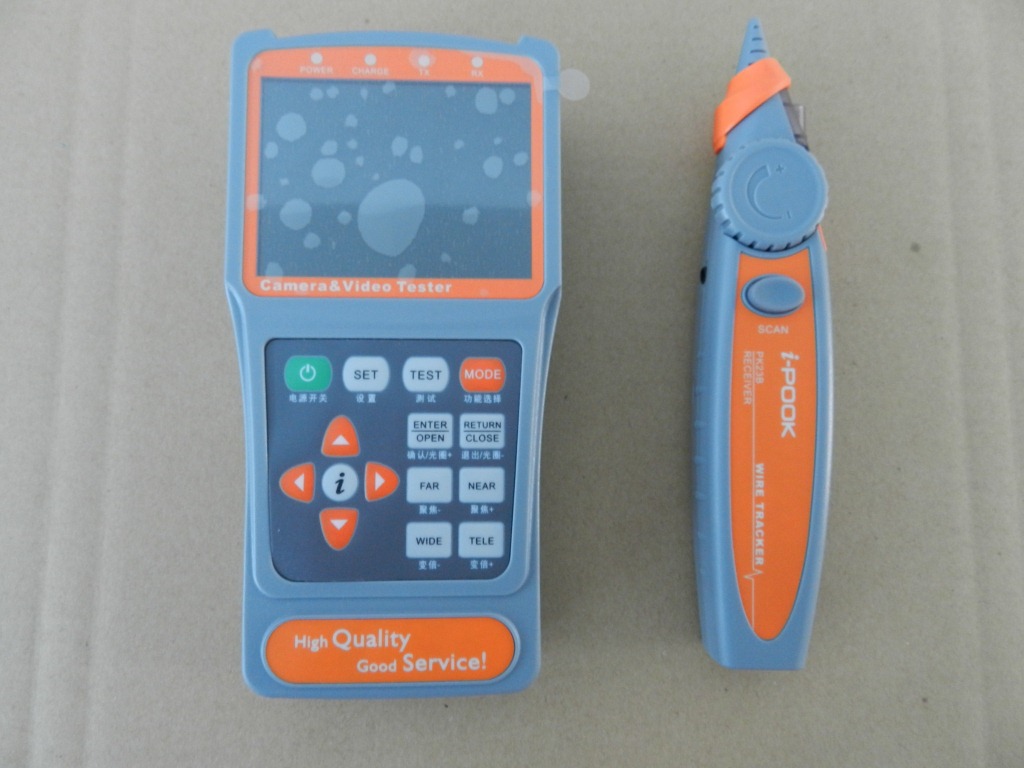

Test video: video monitoring test instrument, built-in high-definition 3.5 inch (resolution 960*240) large screen digital LCD monitor, connecting the front camera through the VIDEO IN interface of the instrument, can be intuitively easy to see the camera image effect. The LCD monitor brightness, adjustable, suitable for fieldconstruction and maintenance;

Test audio: audio test function of video monitoring test instrument, to video monitoring front end pickups and other audio equipment test;

The length of test: cable length measurement function of video monitoring test instrument, can measure thestandard cable length, the longest measuring up to 100 meters;

Mobile power supply: mobile video monitoring test instrument, which can output 5V 1A power supply, can be amobile phone / tablet computer charging;

Emergency power supply: video monitoring test instrument specifically for the camera and the design of the powersupply output port of the 12V 2A, to provide temporary power supply for a camera. Mainly used in some cameraslive demonstration and testing, at the same time, for some need to install the camera field, because prior to the implementation of the project site has no power, must find the temporary power supply for the camera power supply, power output of PK68D will play a necessary role, 12V2A emergency power supply, can drive the high power infrared camera;

Line to line: video monitoring test instrument unique cable test function, through the UTP Cable A test port on the meter, can test out various wire connection mode (any of the above two wire or two wire), a variety of RJ45 and even video surveillance engineering connection, can fast, accurate display. Simple, convenient, practical.Engineers can accurate judgment and mark the beginning and end of the line position, thereby fast cable connection to straighten out in the complex of the cable pile;

Line gauge: line instrument function, can find the target web / video line / telephone line by line finder, lineinstrument more flashlight function, use more convenient; can connect switch / camera live line

PTZ PTZ control: video monitoring test instrument built in Pelco-D/P, SAMSUNG, BOSCH and other PTZ control protocol, through the RS485 interface itself, the user can control the head of the upper and lower, left, right turning, and adjust the zoom, focus, the whole machine aperture size, to realize the detection of cloud equipment;

485 data monitoring: video surveillance testing instrument through the RS485 interface to capture the keyboardor DVR send the control protocol code, test the monitoring center computer room to send over the PTZ control command data whether the normal receipt, verification of RS485 data transmission;

Yuntai address scanning: address scanning function of video monitoring test instrument is unique, can quicklyhelp engineers find a address. Maintenance engineering for some need to maintain fast ball, may not know aaddress, if you want to remove the fastball to check, relatively large workload. PK68D scan functionindependently, can help engineers to find the ball machine.

Color video output: video monitoring instrument can through the OUT port to send video, color pattern, a pattern: white, yellow, blue, green, pink, red, blue, and black eight colors, the monitor center receives the color patternwhether to judge the video channel is not normal transmission, at the same time the color pattern, through the monitoring center received, can determine whether the transmission attenuation or because of interference caused by the color deviation. Site inspection of the equipment is suitable for video transmission, such as video,video cable etc.;

5400mA.H rechargeable lithium battery! Battery operating time long!! In English menu, the operation is simple and convenient!!
