<齊盛激光功能特點：

Features:

1. 光、機、電、一體化設計，性能更穩定。

Integration of photographic, mechanic and electric technologies, giving more stable performance.

Great processing precision, maximum tolerance at 0.05mm.

1. 極高的雕刻速度1000/s。

Extremely high engraving speed, 1000/s.

1. 業內領先的連續、快速曲線切割功能：普通機型60/s，先進機型300/s。

The leading technology of uninterrupted and fast curve cutting: with standard model at 60/s and advanced model at 300/s.

1. 最短加工路徑優化功能，大大提高工作效率。

Optimized function of selecting shortest path, greatly improving working efficiency.

1. 用戶可選的激光管專用冷水機，大大提高激光管的工作壽命和雕刻效果。

Customer optional cooling water machine for laser tube, greatly prolonging the working life of the tube and bettering engraving effect.

imported big-diameter galvanized silicon reflection mirror of 10.6um length wave and ZnSe focus lens provide slighter light wane and finer focus.

1. 與AutoCAD, CorelDRAW,文泰等各種圖形處理軟件無縫對接，直接原圖輸出。

Seamlessly compatible to such image processing softwares as AutoCAD, CorelDRAW, and,Wenti, giving output of original photos.

1. 直接支持AutoCAD任意手繪曲線。

Support hand any drawn curves of AutoCAD.

1. 支持多種格式的文件，圖形格式有BMP、PLT、DXF、GIF、AI等

Support files of various formats such as BMP, PLT, DXF, GIF and AI for image processing.

1. 先進的顏色管理，支持任意多種顏色，隨意定義雕刻次序，全部或部分一次性輸出。

Advanced color management, supporting the combination of any colors, engraving in freely defined sequence, partial or total output in one time.

1. 完美的坡度雕刻、灰度圖雕刻。

Perfect grade and grayness engraving.

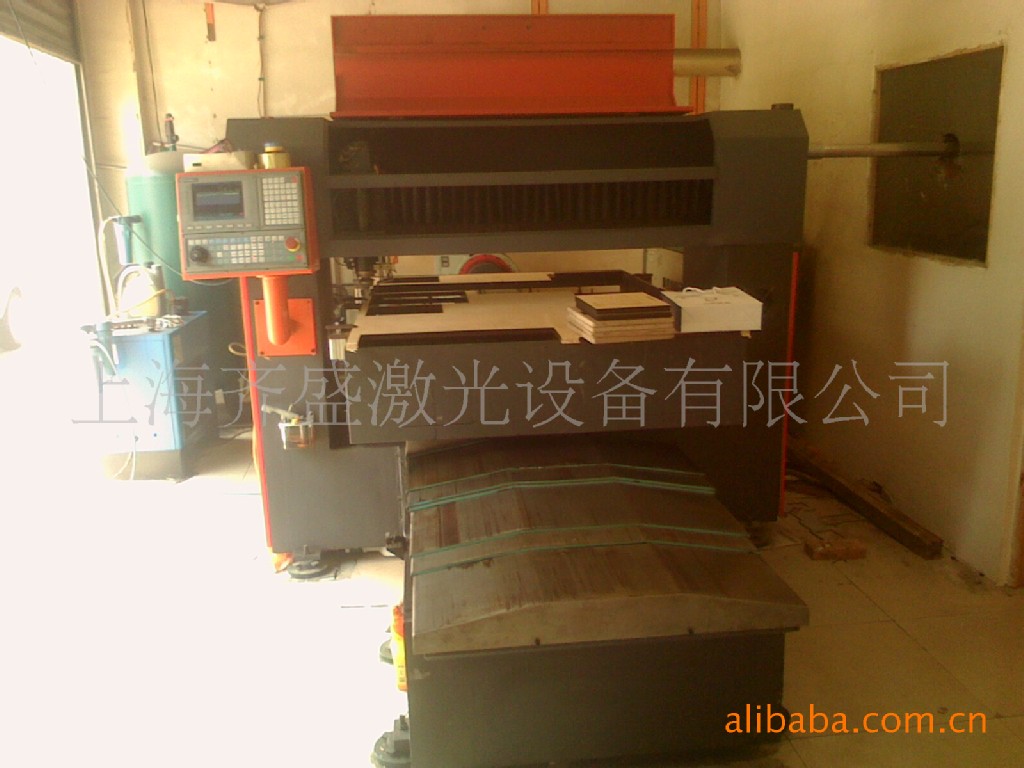

QS-2500W軸流激光切割機
QS-2500W Fast Axis Laser Cutting Machine

相關參數/Product Parameters

1200瓦CO2軸流激光器

1200W CO2 fast axis laser device

單向滑動平臺

Unidirectional sliding worktable

產品描述/Product Description

QS-2500軸流激光切割機是金強激光為刀模板及各種重型板材切割加工行業量身定做的。機器采用混合光路設計和單向滑動平臺，減小瞭切割功率受光程遠近的影響，增加瞭切割加工過程中的運動穩定性和可靠性。穩定的機身設計、靈活的執行機構、配套的激光切割專用軟件，使加工手段遊刃有餘，其效率和質量遠勝於傳統的切割方法。

   QS-2500 fast axis laser cutting machine is tailored for die board/plywood and heavy sheet material cutting industry. We adopt mix optical path and unidirectional sliding table, which minimize the impact of optical path length on laser power, enhance movement stability and reliability during cutting. Stable machine body, agile performance and software special for laser cutting will enable you to accomplish the machining with ease, whose efficiency and quality are far beyond the traditional cutting processing.

技術特點/technical features

?QS軸流式CO2激光器是金強激光在引進意大利技術的基礎上，加以改進和優化的最新一代軸流大功率CO2激光器。
 QS fast axis CO2 laser device is an optimized version of the latest laser generator, adopting Italian technology.

?采用“混合光路”的原理進行設計製造，數控激光切割機床工作臺的運行方式為單向滑臺式。
  Designed and built with principle of mix optical path; Movement pattern of worktable is Unidirectional sliding.

?平行平麵激光諧振腔，諧振腔采用穩定殷鋼結構化設計，並采用快速軸流冷卻配合高效率熱交換器，工作氣體溫度恒定，激光功率穩定度達到±1%。
  Parallel-plane laser resonance cavity is structured with stable invar steel, adopts fast axial flow cooling and high-efficiency heat exchanger, so that gas temperature is constant, and lasser power stability reaches ±1%.
?全自動激光切割頭高度跟蹤系統，自動對焦、反應靈敏、準確。
 The cutting head equips with automatic tracking system, focusing automatically, responding quickly and accurately.

?電光轉換效率高達30%以上，優於同類產品20%以上。
  Photoelectric conversion ratio is up to 30%, which is more than 20% beyond that of similar machines.

?工作氣體采用穩定比例的混合氣體方式，快速軸流速度智能可調。多重高真空度密封技術，保持激光工作氣體的純度，減小工作氣體耗和運行成本。
 Working gases is mixed according to certain ratio, whose fast axial flow speed could be intellectually adjustable. Multi- seal vacuum technology ensures the gas purity and lowers the operation cost.

?絲桿及導軌采用全封閉式防護。
  Ball screws and guide rails are fully enclosed and protected.

?X、Y、Z三軸均采用日本松下伺服電機驅動。
X, Y, Z three axises all are built with servo motor-drivens made by Japanese Panasonic.

?箱型結構底座，經退火時效、300天自然時效、振動時效等多重去應力處理，確保日後的應用穩定可靠。

  After the annealing aging, 300 days' of natural aging, and vibration, and other multi processing of stress relief, the stable running of the box-structured base can be assured during the machine operation and working.

?國際指名光學組件和鏡片，同時采用同光路反射保護功能。
  World famous pneumatic parts and optical lens, laser path reflection control function as well are adopted.

?彩色LCD、接觸屏人機操作界麵，操作簡便，設備運行狀態及參數一目瞭然。

  Color LCD touch-screen display is convenient for operation. All the running states and parameters are clear at a glance.

適用材料/Applicable Materials

刀模板，密度板，木板，亞克力，塑料，及其他非金屬板材。鐵，鋼等金屬板材。

Die board, MDF, wood plates, acrylic, plastic, and many other non-metals. Iron, steel and some other metals.

適用行業/Applicable Industries

刀模加工，廣告裝飾，傢具，木製玩具, 金屬製品加工，模型行業等。

Die processing, advertising decoration, furniture, wooden toys, some metal processing products industry, molding, etc.
