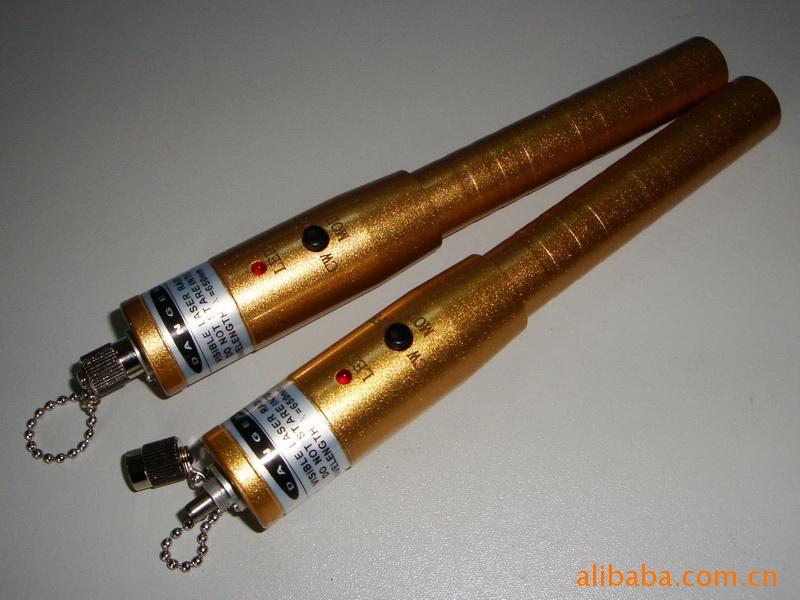

F650A10 Pen-type Visual Fault Locator：
Applications：
Finding the breakpoint, bending or cracking
Finding the fault of OTDR dead zone
Fiber Identification from one end to the other end
Characteriscics：
Special safety parts design, to ensure users security
FC,SC,ST universal adapter without any other type of adapters
Locates fault up to 10km in fiber
Compact in size, light in weight, red laser output , both SM and MM available
Specifications：
Type | F650A03 F650A05 F650A10 F650A15 F650A20 |
Wavelengths(nm) | 650 ±10nm |
Emitter Type | FP-LD |
Ouput Power(SM) | 3mW 5mW 10mW 15mW 20mW |
Identification distance | ≥5Km ≥10Km ≥15Km ≥20Km ≥30Km |
Optical Connector | PC or APC/ Universal 2.5mm adaptor |
Power Supply | 2 AAA alkaline batteries |
Operating Time | 16 hours |
Operating Temperature(℃) | -10~+50 |
Storage Temperature(℃) | -20~+80 |
Dimension(mm) | ￠24X170 |
Weight（Including battery） | 160g |
0A系列光纖故障檢測機：

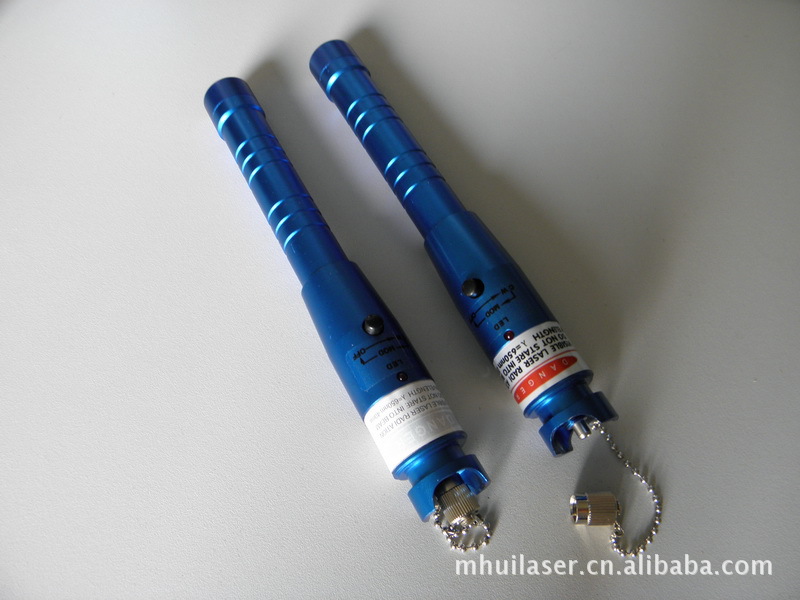

Visual Fault Locator Manual
With a 650nm visible fiber diode, Pen-type Visual Fiber Locator (VFL) can be operated in either continuous-wave (CW) mode or pulse mode. Being an essential and excellent tool for the installation, construction and maintenance for the optical fiber networks. F650A can test the breaks, bends, cracking and other faults in fibers, widely used in communication, telecommunication, scientific research, construction and so on. F650A also features rugged metal case and portable size, which can be easy to take and operate.
Specification:
Type | F650A03 F650A05 F650A10 F650A15 F650A20 |
Wave Lengths (nm) | 650 ±10nm |
Emitter Type | FP-LD |
Output Power(SM) | 3mW 5mW 10mW 15mW 20mW |
Identification distance | ≥5Km ≥10Km ≥15Km ≥20Km ≥30Km |
Optical Connector | PC or APC/ Universal 2.5mm adaptor |
Power Supply | 2 AAA alkaline batteries |
Operating Time | 16 hours |
Operating Temperature (℃) | -10~+50 |
Storage Temperature (℃) | -20~+80 |
Dimension (mm) | ￠24X170 |
Weight（Including battery） | 160g |

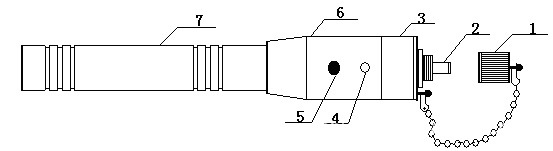

Structure：
1-Cap 2-Port 3-Head 4-LED 5-Switch 6-Body 7-Tail
Operation：
Rotate and remove the latter part of VFL, insert two AAA batteries, Anode to the front of
VFL, then screw the latter part.
Press the switch once, open CW mode; press twice, open PULSE mode; press third, be off.
Safety：
All lasers systems have intrinsic dangers - even laser pointers! Observation of basic laser safety rules and the specific safety regulations of the jurisdiction in which you operate are essential.When the batteries are installed, in any case should not stare at the laser interface.
Do not use this product wher the temperature exceeds 50℃or goes below -10℃.
Remove the battery when this product is not to be used for a long period of time.
Keep this product away from children.
The warranty will no longer exist once the product been taken apart.
