技術參數

主要技術參數

英製INCH

公製MM

Main Technical Parameter

磨削銑刀范圍（柄徑×刀刃直徑×長度）

2"×9"×10"

50×225×250mm

End mill Capacity(Dia of shank×Dia of Edge×Length)

工作臺回轉直徑

9-3/4"

245mm

Swing over table

工作臺橫向行程（X軸）

6"

150mm

Longitudinal toale travel (X Axis)

工作臺縱向行程（Y軸）

3"

75mm

Cross travel of table (Y Axis)

碗形砂輪最大外形（外徑×厚度×孔徑）

5"×2"×1-1/4"

125×50×32mm

Maximum wheel

磨頭角度調整范圍

+35º-10º

+35º-10º

Tilt adjutment for wheelhead

空氣軸承的回轉角度

360º

360º

Air bearing swivel

空氣軸承的行程

10"

250mm

Air bearing stroke

工作臺最小進給單位

0.001

0.02mm

Table infeed graduation

供氣壓力

6.3MPa

6.3MPa

Air bearing graduation

管接頭孔徑

Z1/4"

Z1/4"

Pipe joint diameter

主軸孔所配彈簧夾頭

5C

5C

Collet fit for spindle

兩工作臺相互移動的平行度

0.01/100

0.01/100mm

Parallelism between two tables

套筒中心線對工作合移動的平行度

0.01/100

0.01/100

Parallelism of sleeve center line to worktaboe

電

機

Motor

轉速Speed

3450/2580rpm

2800rpm

電壓Voltage

110V/1 Phase

230V

功率Power

1/3HP

0.25KW

頻率Frenquecy

60HZ/50HZ

50HZ

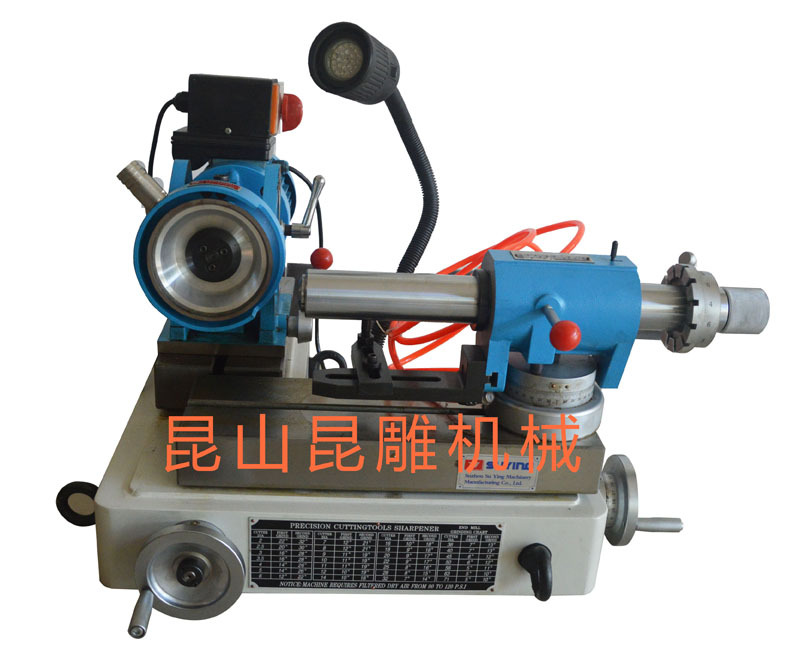

特點：磨削順暢，平穩。先進的空氣軸承懸浮設計，加壓後主軸轉動靈活自如，摩擦力小，精度高，使用壽命長。可刃磨2，3，4，6槽的高速鋼銑刀，硬質合金銑刀的端刃和螺旋刃。 操作時間：通常情況下，1個13mm直徑的2 槽銑刀可以在2分鐘內完成刃磨（含設定時間）。Feature: Easy

to operate, grinding smoothly and steady. Air Bearing construction keeps high accuracy and life long. Applicable to 2,3,4,6 flutes HSS end mill, carbide end mill，reamer. Operation time: Complete in 2 minutes including setup time for 13mm 2 flutes end mill generally.

磨刀機采用開放式的佈局結構，嗇瞭操作窨，加大瞭磨削范圍，可對銑刀、鉸刀、鑽頭的前角、後角以及刃帶進行磨削，換用不同附件便可磨削球頭銑刀，絲錐等導向刃帶。磨刀機的主要部件采用優質鋁鑄造而成，具有重量輕，吸震抗腐蝕等優點，磨刀器采用瞭國際先進的氣壓懸浮技術，加壓後的主軸轉動靈活自如，將摩擦降至最低，大大地增加瞭其使用壽命.

Having opening type structure,adding operation space, enlarging grinding range, this sharpener can grind relief,cutting edge of miller, drill,reamer ,also can grind ball end mill and tap guide cutting edge by changing different attachmentThe main part of shappener is made of excerllent Aluminium it has many features such as light weight,resist rot, etc.it takes up advanced international technique of air floating, the spindle rotate flexibly after being pressed, reduce friction to lowest
