石材拋磨機的“勞斯萊斯”
產品介紹
該設備使用樹脂磨盤，其磨盤重量輕，功耗小，單個磨頭功率為7.5KW，其耗電量比為傳統連續磨機的1/3.操作控製系統采用PLC終端控製，通過液晶觸摸屏進行參數設置，磨頭升降及磨拋壓力采用氣動控製，其壓力大小需求在設定值內可調，磨頭橫向磨拋速度及進板速度均采用變頻調速並可在設定值范圍內靈活設置。自動進板，磨頭智能化識別板形狀進行連續磨拋，生產效率高，成本低，一套設備抵多臺手扶磨或橋式半自動磨機生產率，僅需人工1-2人。
拋磨光澤度高！平整度好！板麵均勻！
本設備適用於花崗巖條板的連續磨拋，特別適用大批量生產及板材光澤度在100度以上的生產需求.
Stonegrinder"rolls-royce"
Product introduction
The device using theresin grinding disc,thediscof light weight,low power consumption,a singlegrindingpower is 7.5KW,its power consumptionis 1/3.operation controlsystem of traditionalcontinuousmillusing PLCterminal control,set parametersthroughtouch screen LCD,headlifting andpolishingpressureis controlled by pneumatic device,thepressure ofdemandin the setting valueadjustablehead,horizontalgrinding and polishingspeed andfeedingspeedadoptvariable frequency speed regulationand in thesetrangeset flexibly.Automatic feeding,shapegrindingintelligent identificationplatecontinuous grinding and polishing,high production efficiency,low cost,a set of equipmentformultiplehandgrinding orbridge halfautomaticmillproductivity,onlymanual1-2.
Polishingglossiness is high!Good flatness!Surfaceuniformity!
This equipment is suitable forcontinuousgrinding and polishinggraniteslab,particularly suitable formass productionand sheetglossin 100 degrees abovethe production demand.
技術參數technical parameter

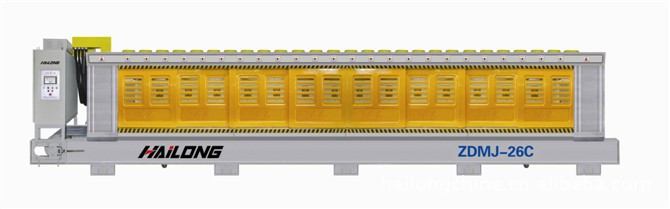

產品型號 ITEM NO. | ZDMJ26C/0.9 | ZDMJ26C/1.2 |
磨頭數量 QUANTITY OF HEADS | 24 | 24 |
主電機功率 POWER OF MAIN MOTOR | 7.5KW | 7.5KW |
總功率 TOTAL POWER | 216.75KW | 216.75KW |
磨盤直徑 GRINDING HEAD DIAMETER | 200mm | 200mm |
磨板寬度 GRINDING PLATE WIDTH | 900cm | 1200cm |
磨板厚度 GRINDING PLATED HEIGHT | 10-50cm | 10-50cm |
橫梁擺動速度 BEAMS SWING SPEED | 3-35m/min | 3-35m/min |
進板速度 SLAB TRANSMITTED SPEED | 1-3m/min | 1-3m/min |
冷動水壓力 COOLLING WATER PRESSURE | 0.1-0.15MPA | 0.1-0.15MPA |
耗水量 WATER CONSUMPTION | 27m3/h | 27m3/h |
供氣壓力表AIR SUPPLY PRESSURE | 0.8mpa | 0.8mpa |
整機重量 TOTAL WEIGHT | 16000kgs | 17000kgs |
整機外形尺寸 DIMENSION（LXWXH） | 128002700x2300mm | 128002700x2300mm |
中國石材機械名牌產品----福建海龍機械。聯系18859989091,15906047575
關鍵詞：石材機械 磨光 拋光 樹脂
