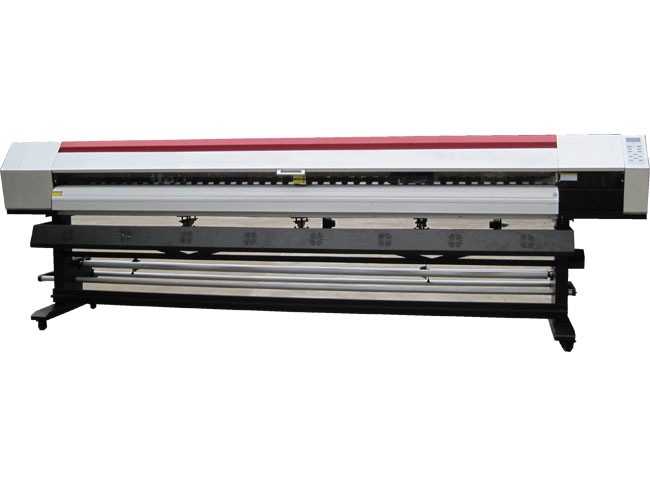

Item Model | YH-XL3202 | Print Head | Piezo Technology, Double Epson DX5 Print-head, 180nozzles*8Lines*2PCS | Maximum Print | 1850mm/2500mm/3200mm | Print Resolution/Speed | | 3200 | 2pass | 66.4m2/H | 3pass | 45m2/H | 4pass | 36m2/H | Ink | Sort | Water based Ink / Eco Solvent Ink | Capacity | (Double) 4 Colors: 220ml each | Media | Width | 3200mm | Sort | PP Sythentic Paper, Vinyl Sheet, Film, Coated Paper, Acid Proof Paper Banner, Canvas etc, Adhesive Vinly Sheet, Banner and so on. | Media Heater | Pre/Print/Post Heater (can be controlled separately) | Media Take-up Device | Strong rolling take-up device with the automatic damper | Interface | USB 2.0 | RIP Software | Maintop V5.3, Photoprint, Topaz, Seeget | Operation Environments | Temperature:20℃-35℃，Humidity:35%RH-65%RH | Dimensions of Printer
(W*D*H) | H 1300mm X L 4360mm X W 850mm | Dimensions of Packing
(W*D*H) | H1500mm X L4400mmX W950mm | Net Weight | 700KG |
|
YH-XL3202CAPPING STATION, covers can be opened to check the capping station directly.
A yellow triangle show attention of hot temperature, and CLAMP LEVER is made to go up-down the pinch roller for holding medium.
INK FREESER BOTTLE is just under Capping Station, conneting with ink tubes.

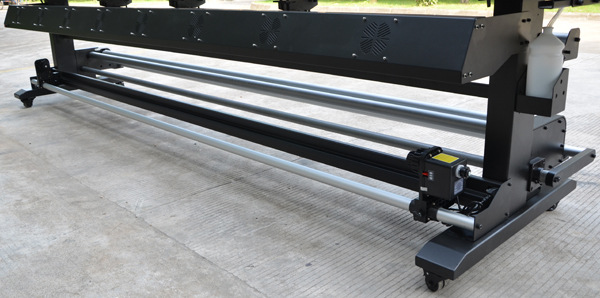

FANS for drying, and take-up device with motor.
Drying Fans with a red switch.

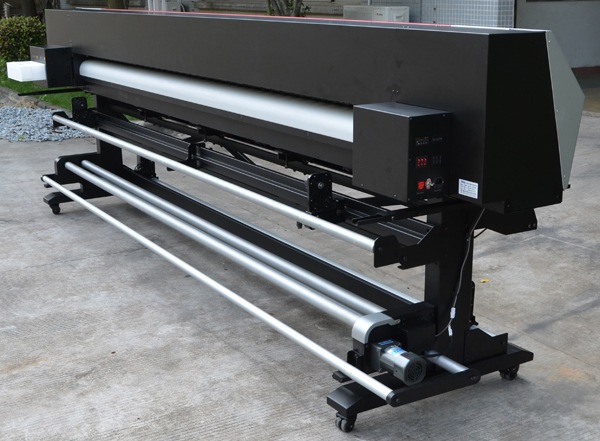

FEEDING SYSTEM, light medium like PP Sythentic Paper, Vinyl Sheet, Coated Paper etc. can be put on the upward feeding roller, heavy medium like Canvas should be put onto the downward feeding roller.
Feeding roller with motor.
INK BOX eight boxes for two print head with 2 pcs for one color, each ink box is 440ml.
from up to down :heater operation panel, heater switch, AC inlet, power switch.
Heater operation panel : Provides the heater power switch and the heater status LED indicator.
Heater switch : Control front, middle, rear heater.
AC inlet : The power cable is connected to the AC inlet.
Power switch : It turns on/off the power to the device.
When the power switch is turned on, the POWER indicator lights in red.
|
|
